Bale Spikes
Bale Spikes
The Albutt range of Bale Spikes are designed to suit a variety of bale and machine types. Tines are bushed into the heavy wall box section frames, perfectly spaced to suit your required bale types. Typically all models kept in stock for urgent requirements.
Ranges
Combi-Spikes – Simple design with integrated brackets
Round Bale Spikes – For moving one (F100) or two round bales (F110)
Rectangular Bale Spikes – For 2 x hesstons/ 3 x mini hesstons (F131)
Multi Bale Spikes – For moving multiple round and rectangular bales (F125)

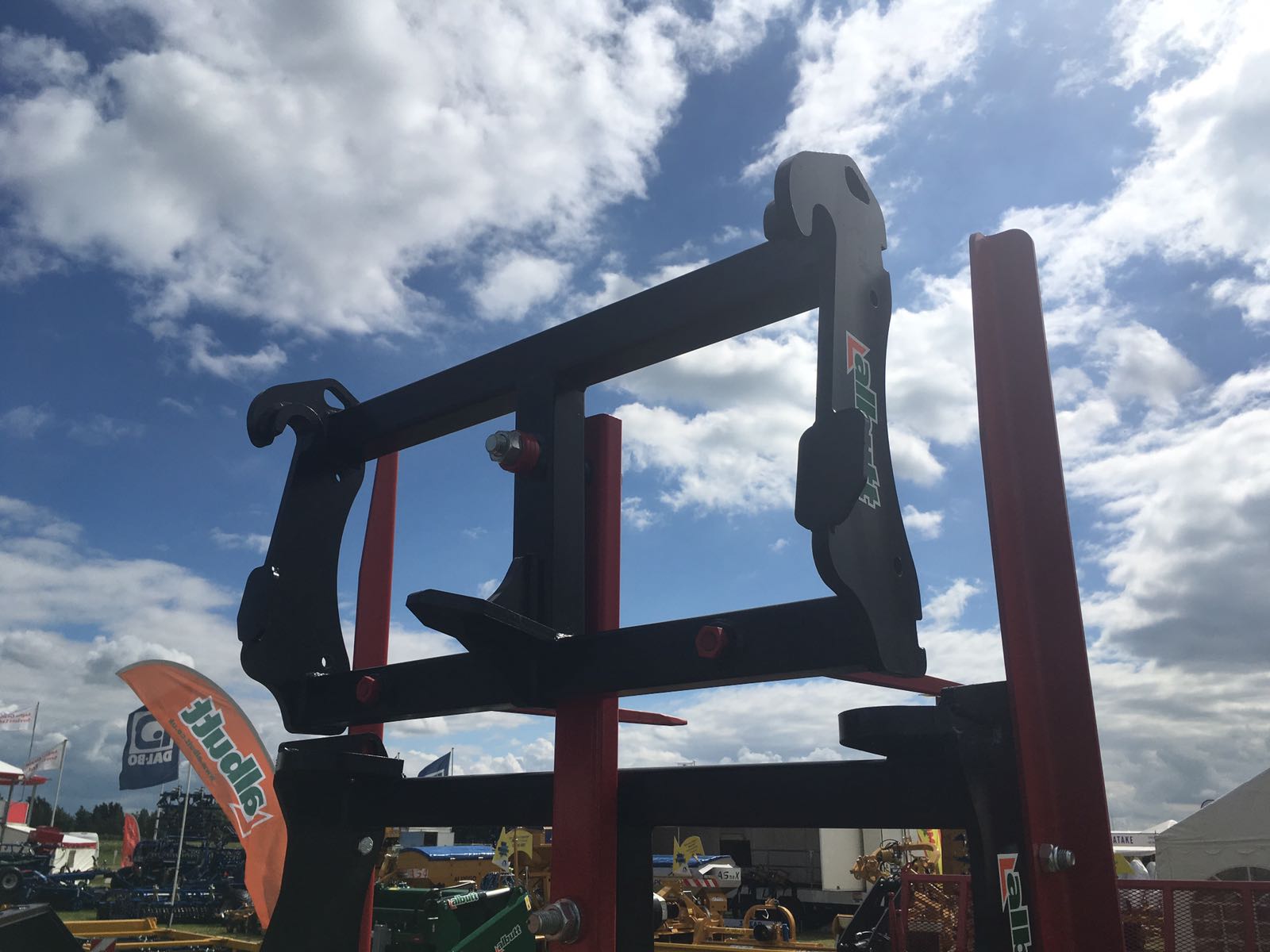

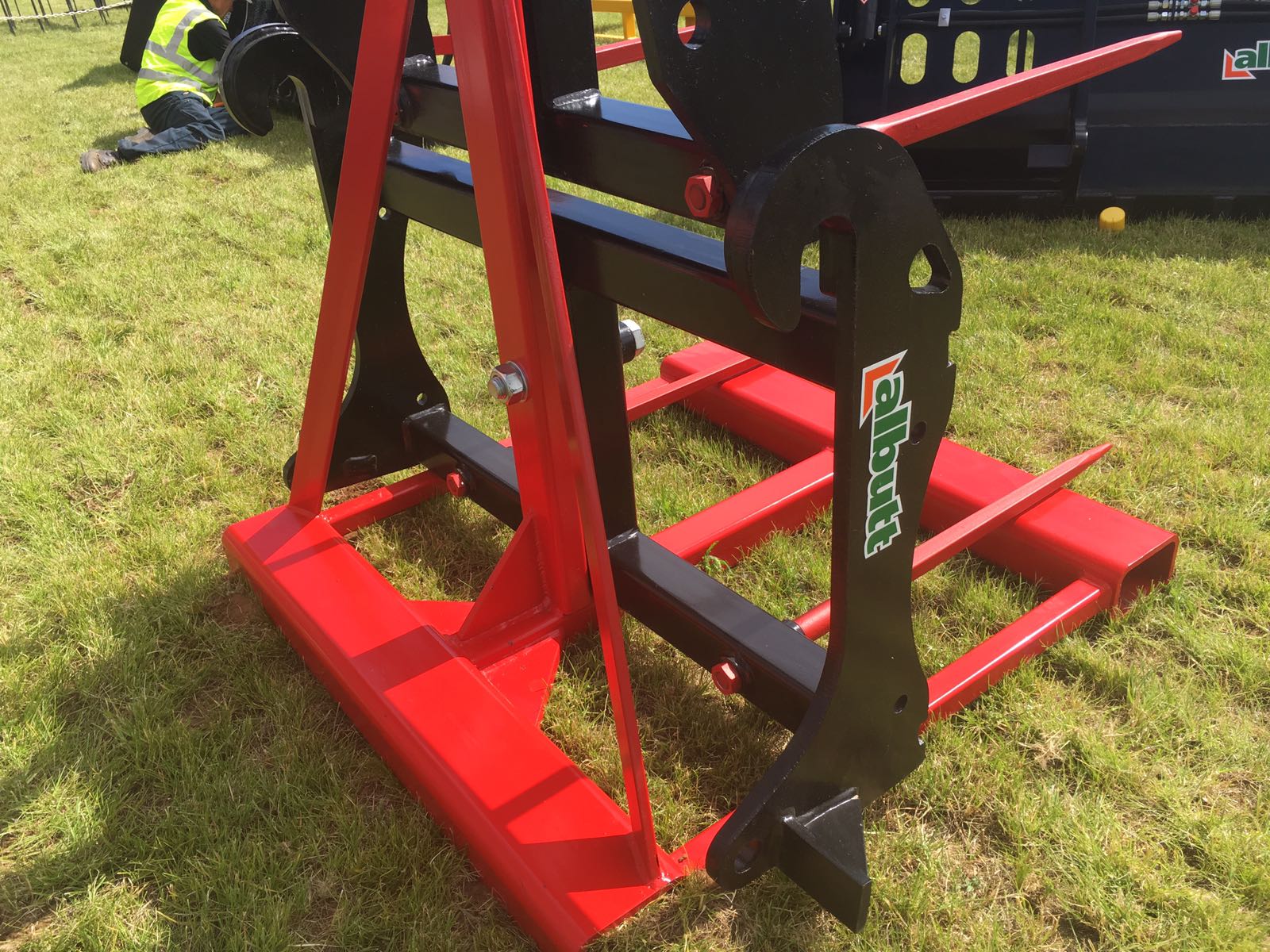

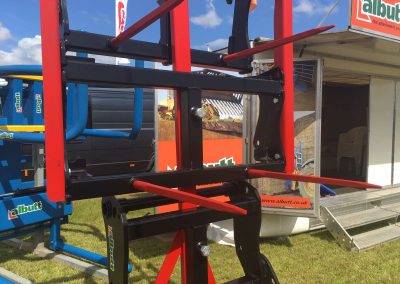

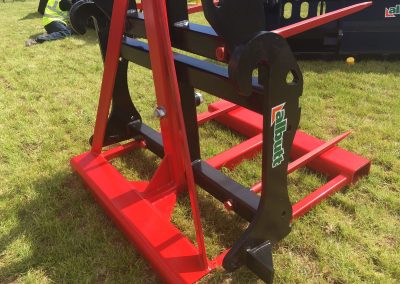

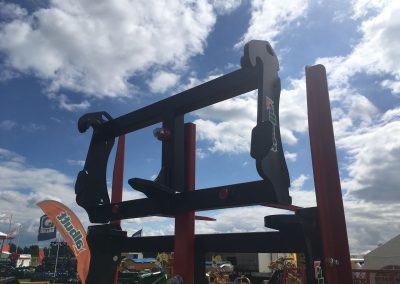

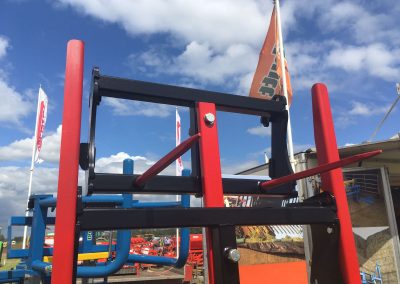

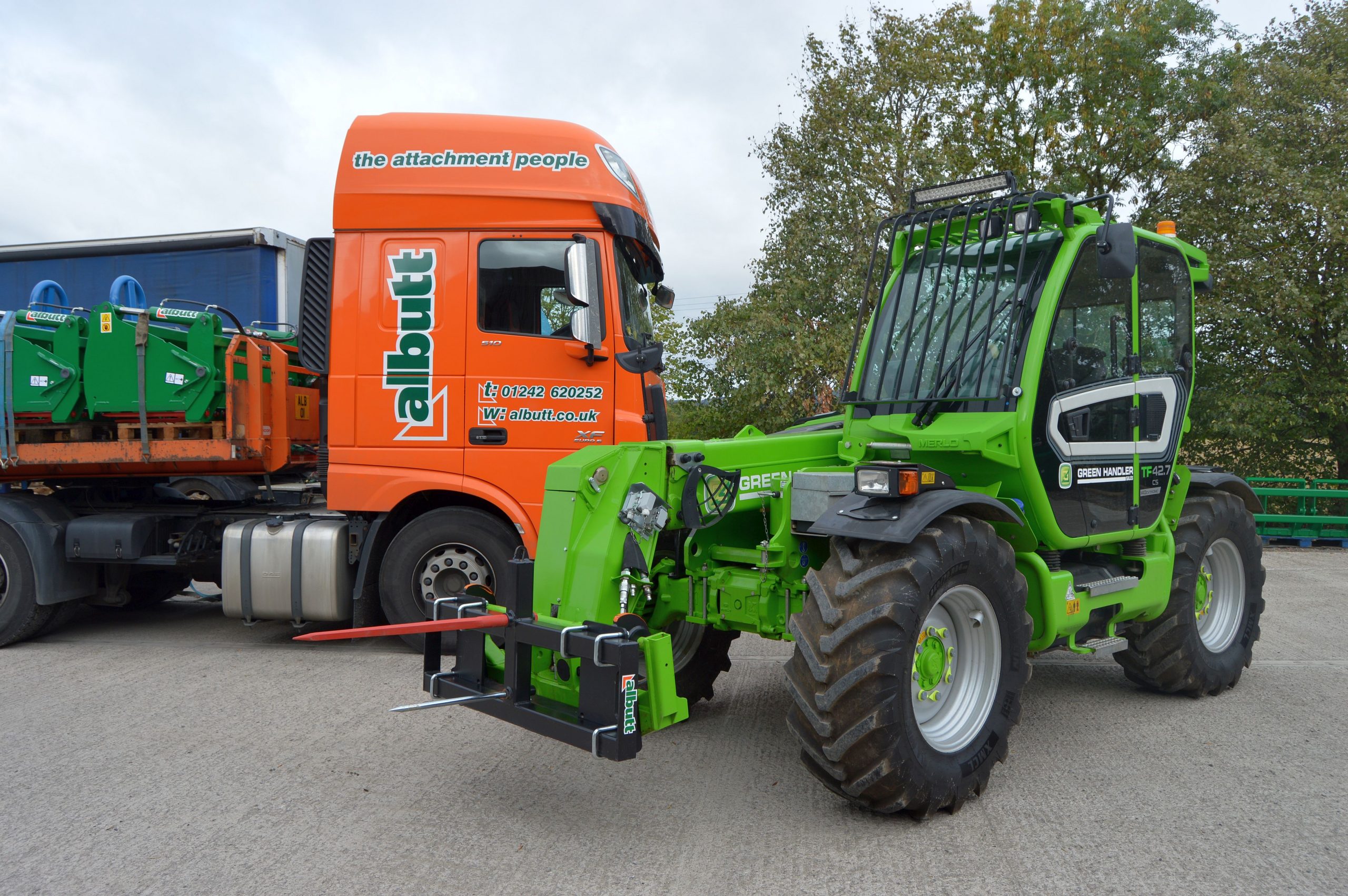

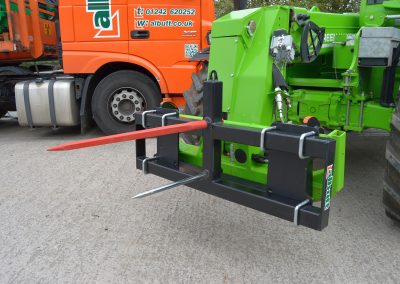

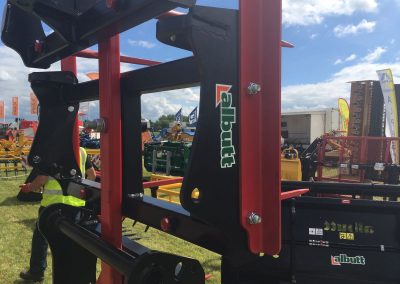

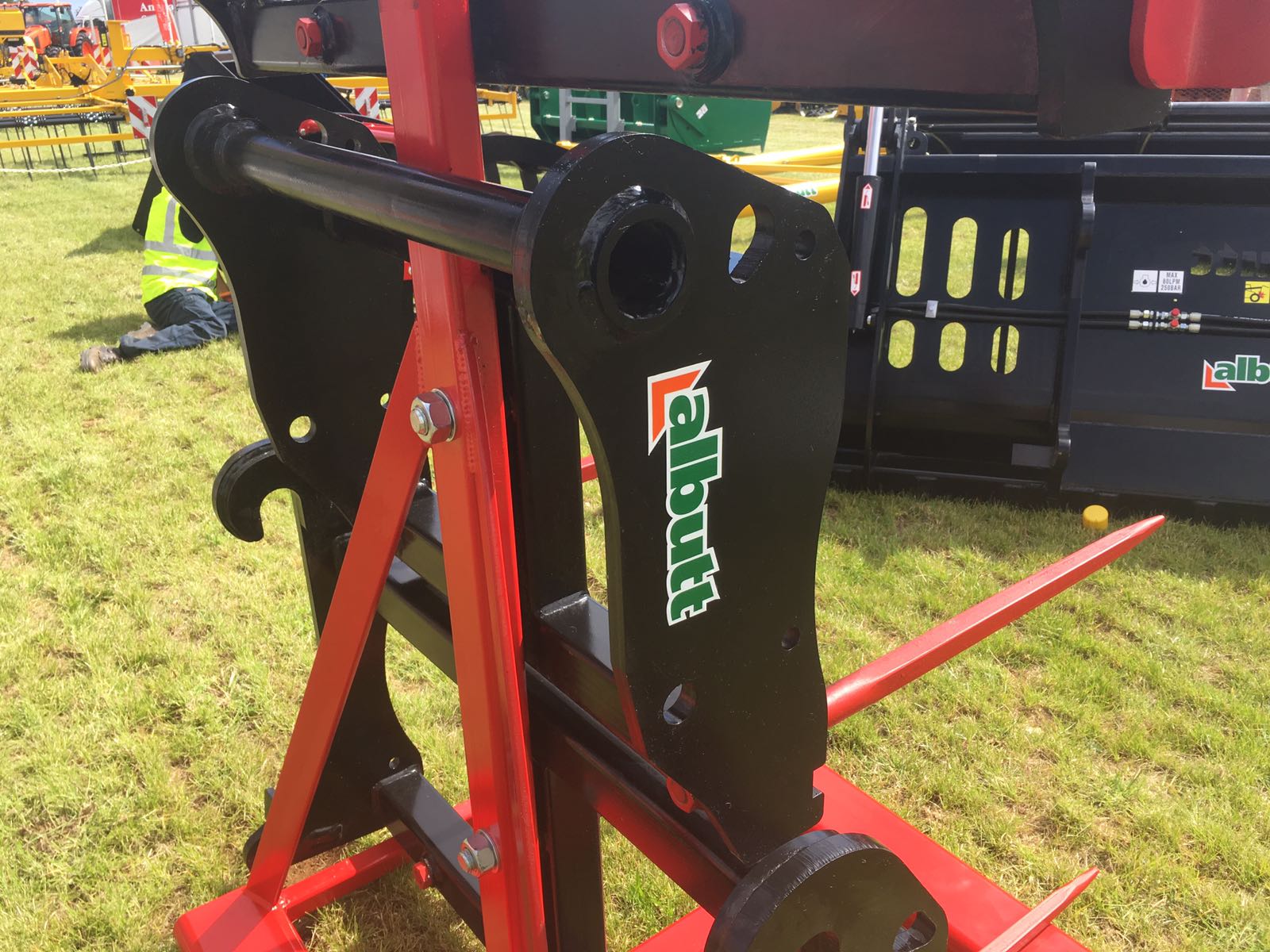

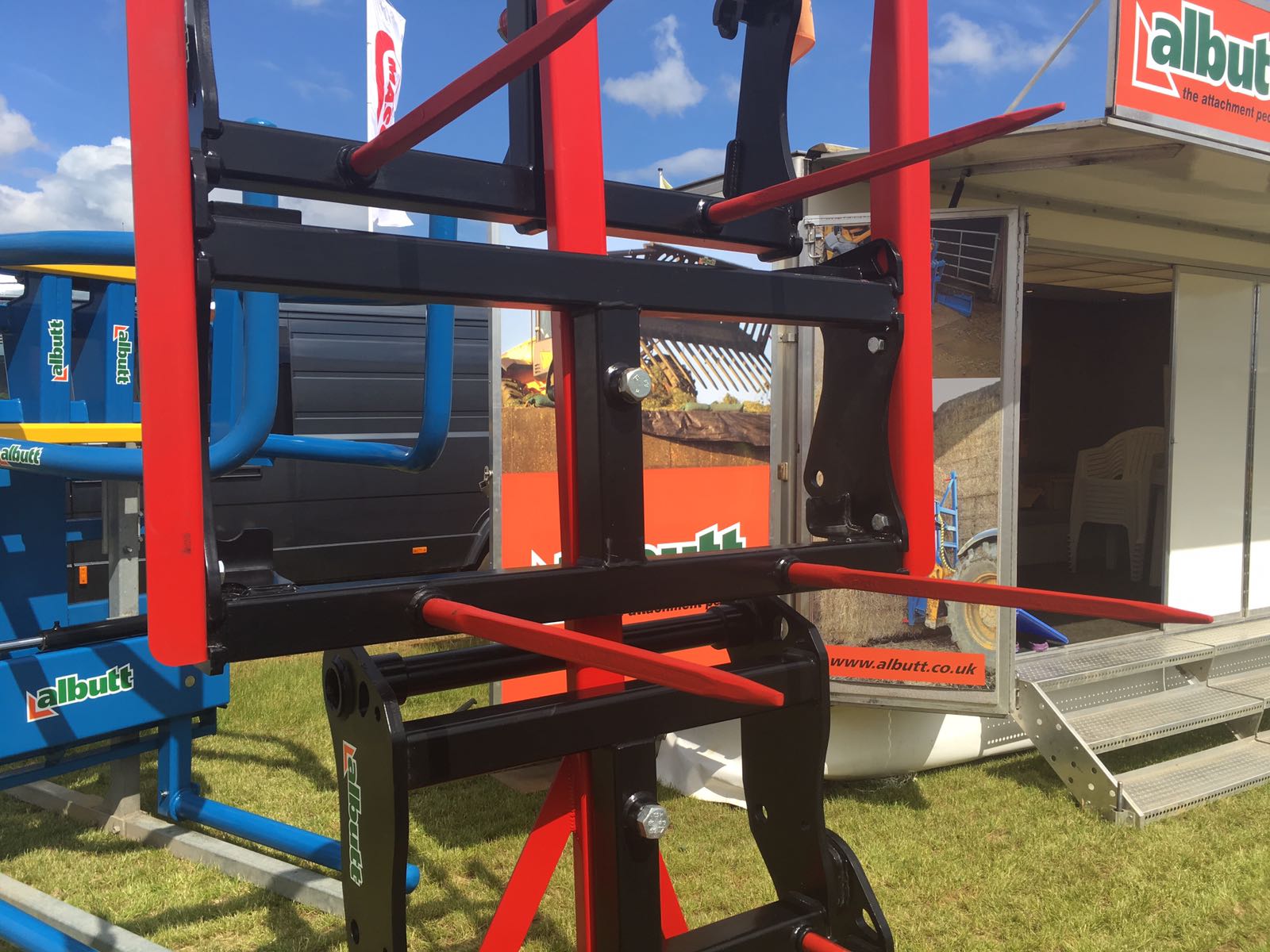

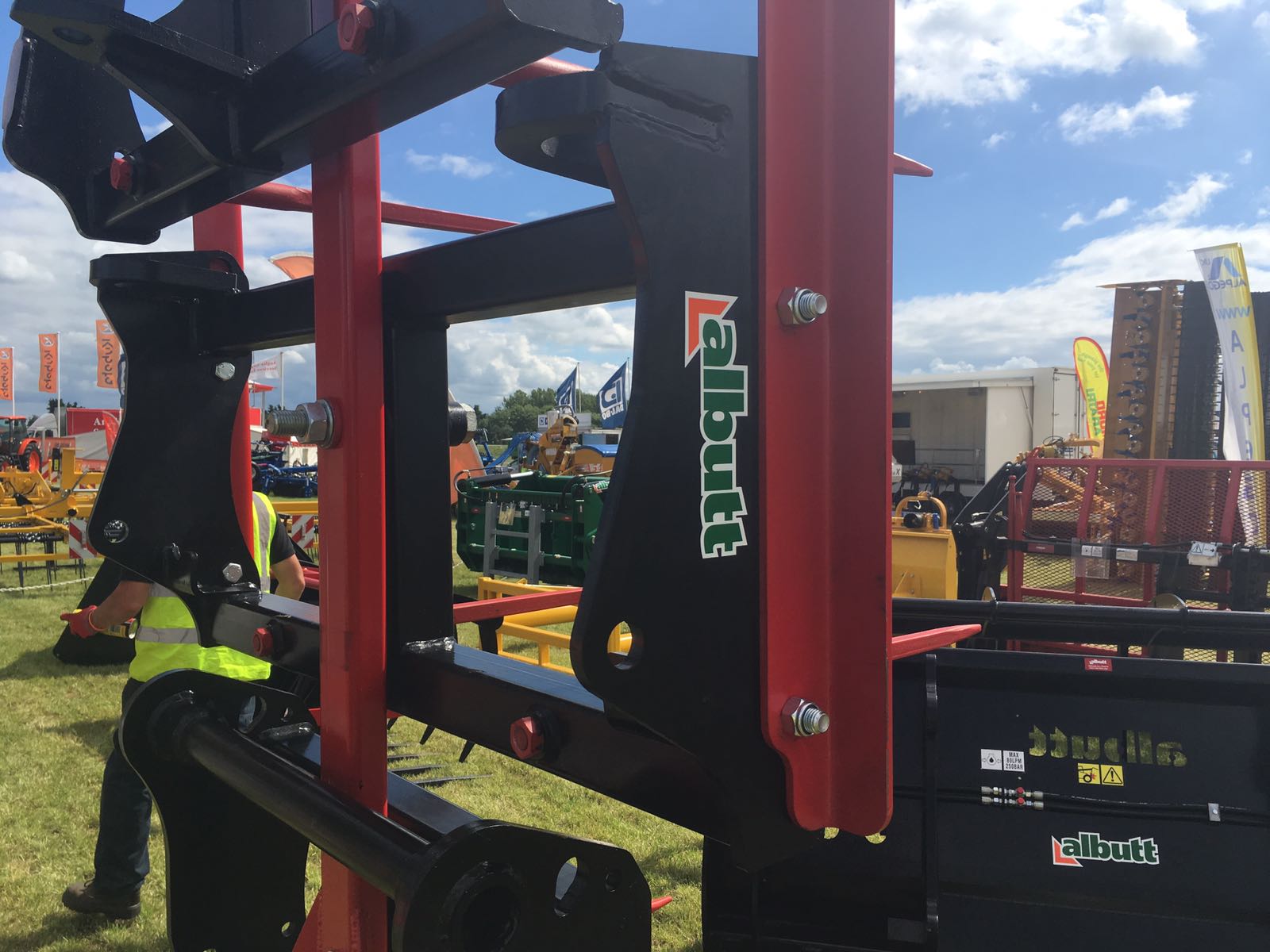

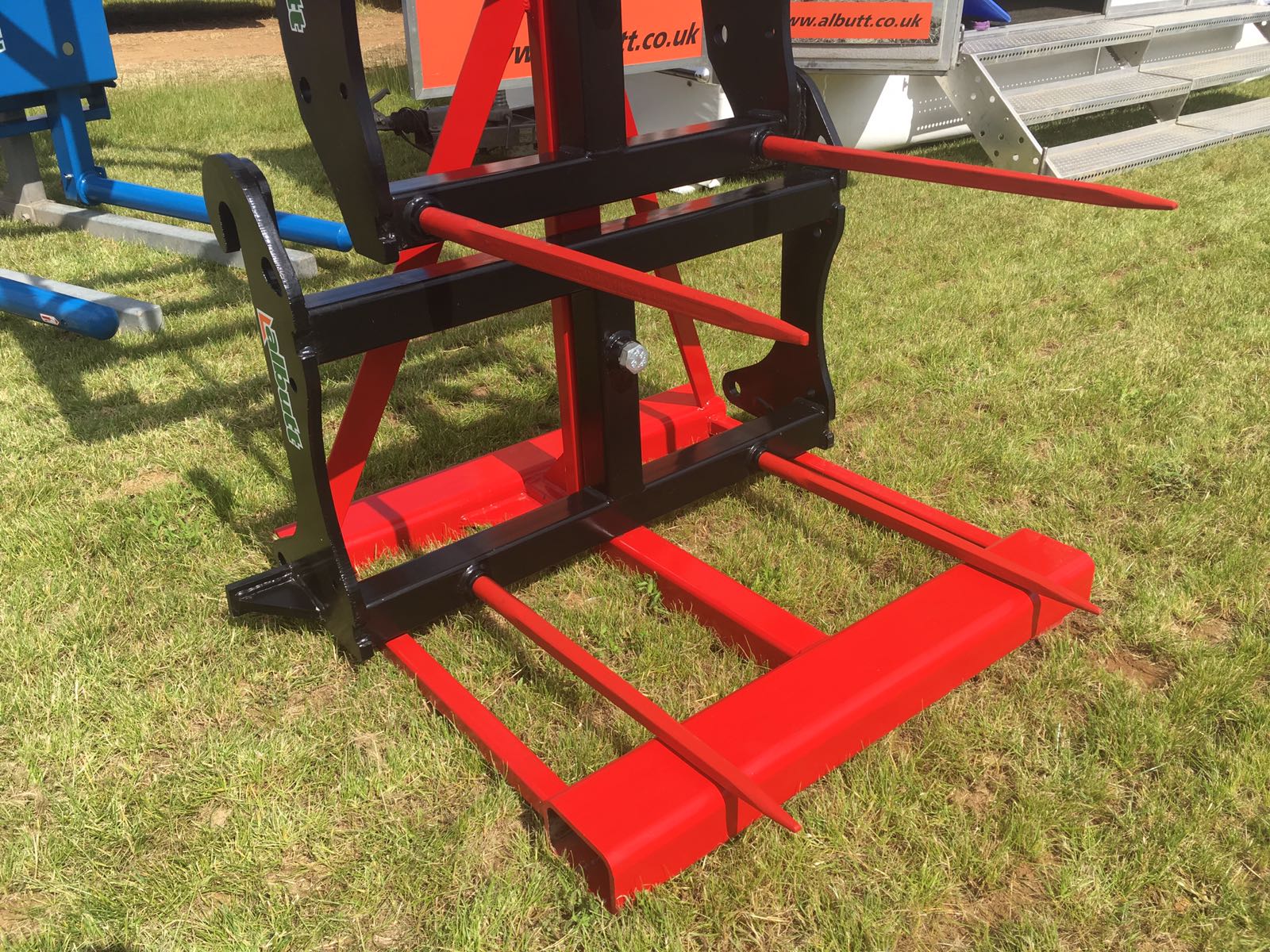

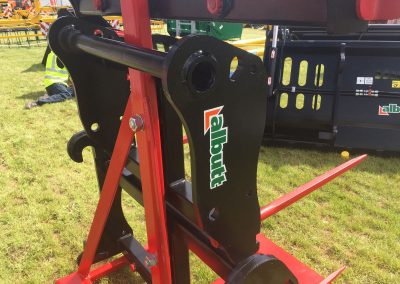

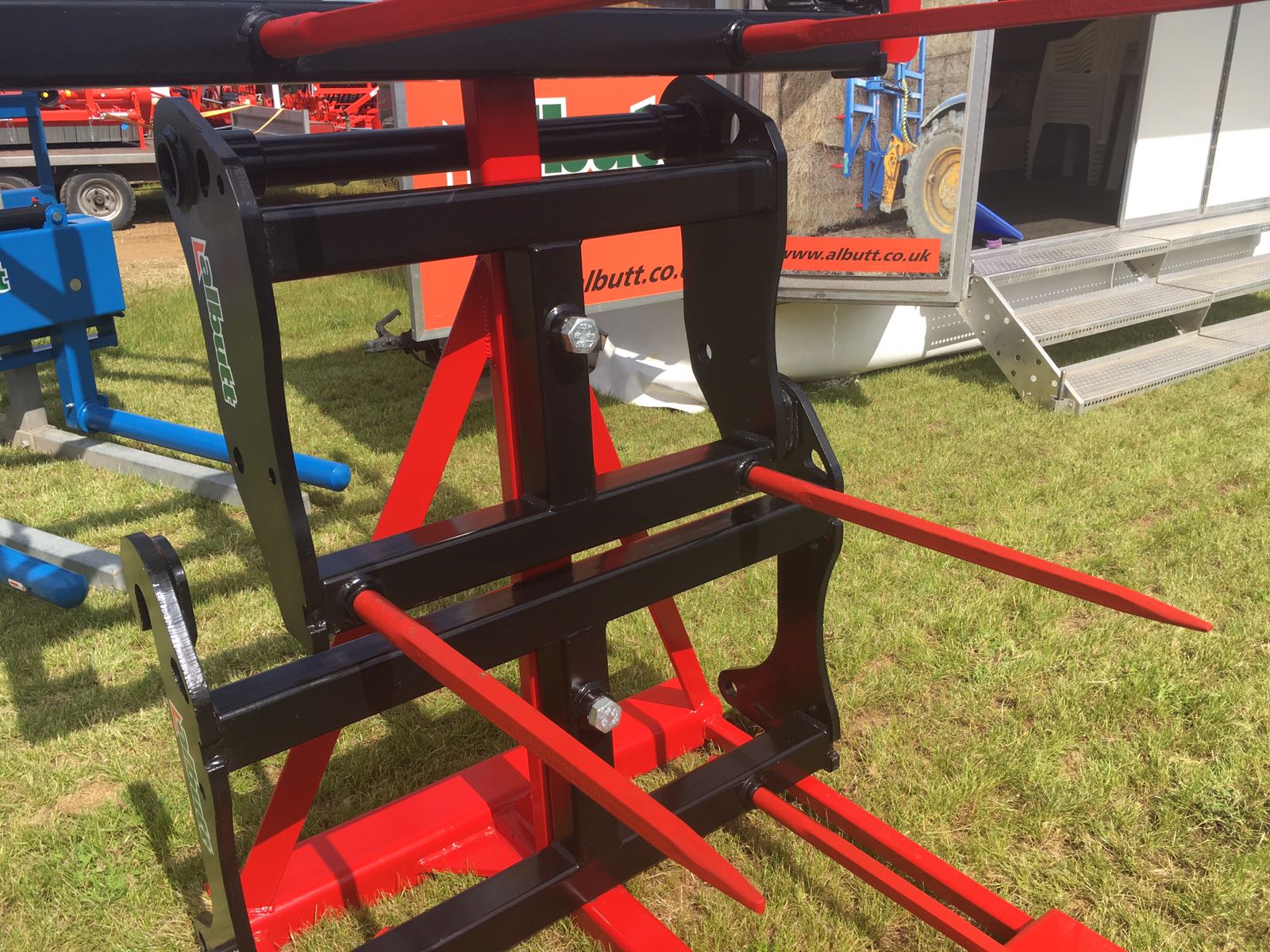

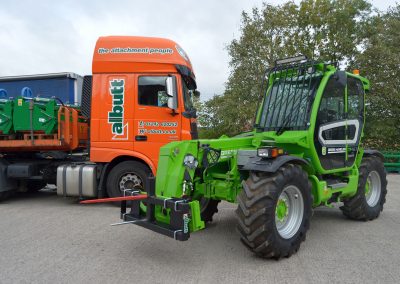

Combi-Spikes
- 2 x 810mm base tines
- Optional 980mm top tine
- Optional Bale Support Arms to prevent bales falling back onto the handler
- Increases height to 1240mm
- Brackets integrated into main frame
- Normally in stock
- Available with JCB Q Fit, Pin and Cone, Euro, Merlo or Manitou Brackets
- Cost effective
- Tines bushed into main frame
- Suitable for round or rectangular bales
- 650mm between bottom tines
| Model | No. Tines | Brackets | Weight |
|---|---|---|---|
| ES100 | 2 x 810mm | Euro | 43kgs |
| CS100JCB | 2 x 810mm | JCB Q Fit | 82kgs |
| CS100PC | 2 x 810mm | Pin & Cone | 82kgs |
| CS100MAN | 2 x 810mm | Manitou | 82kgs |
| CS100MER | 2 x 810mm | Merlo | 82kgs |

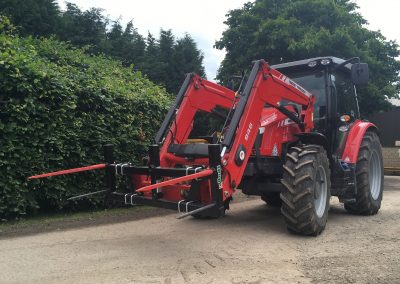

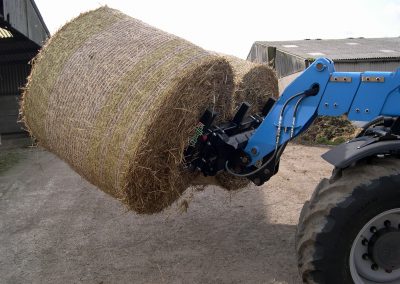

Round Bale Spikes
- Substantial heavy duty box section design
- F100 for one round bale
- F110 for two round bales
- F100 1 x 980mm tine with 1 support tine
- F110 2 x 980mm tines with 2 support tines
- Normally in stock
- Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details
| Model | Width | Will Handle | Weight |
|---|---|---|---|
| F100 | 1350mm | 1 x Round Bale | 55kgs |
| F110 | 1500mm | 2 x Round Bales | 75kgs |

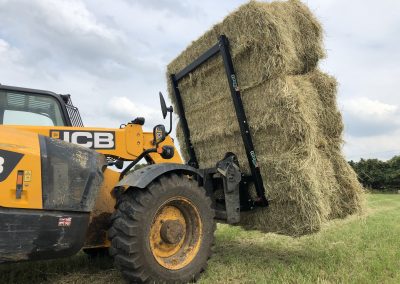

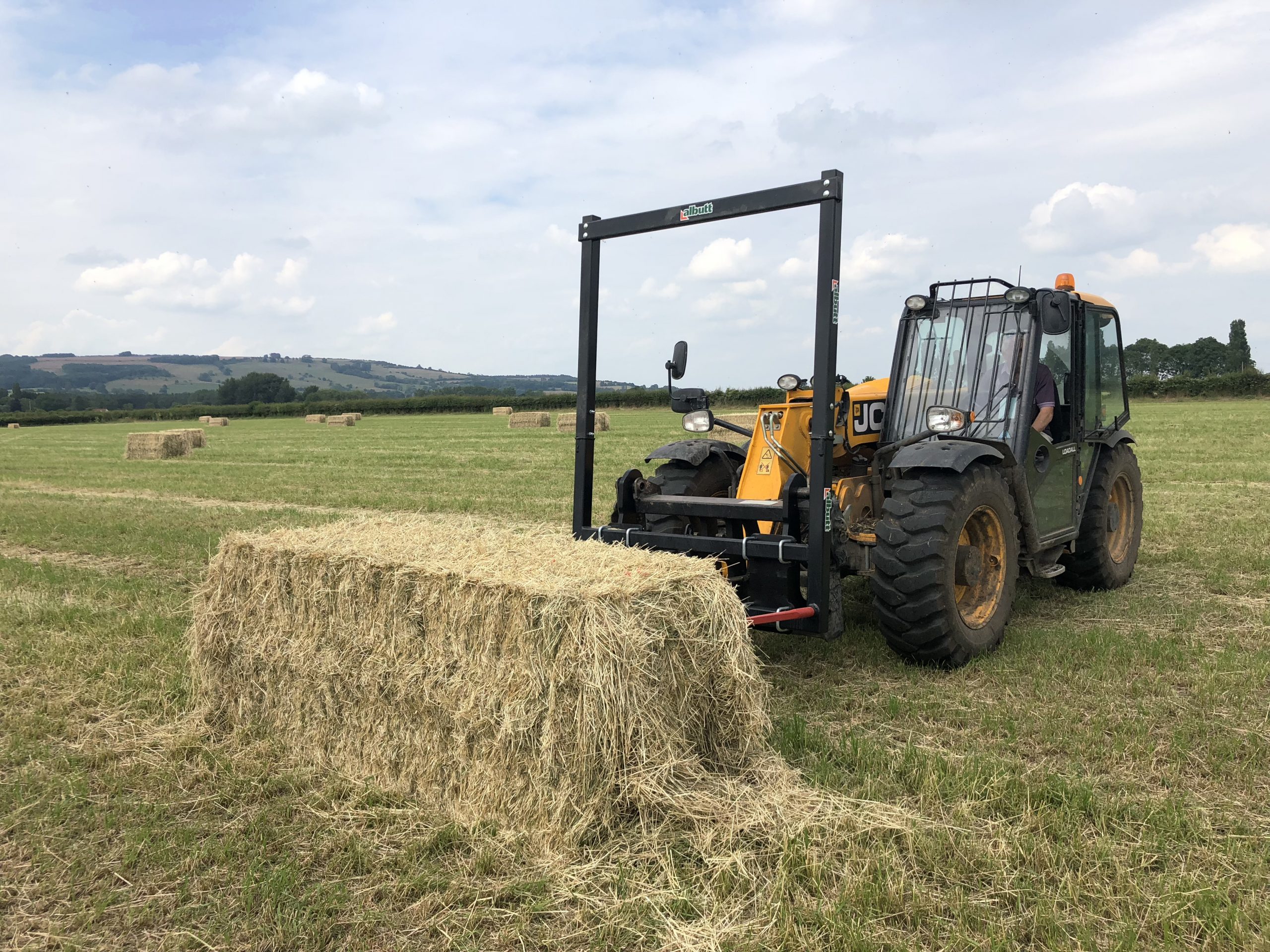

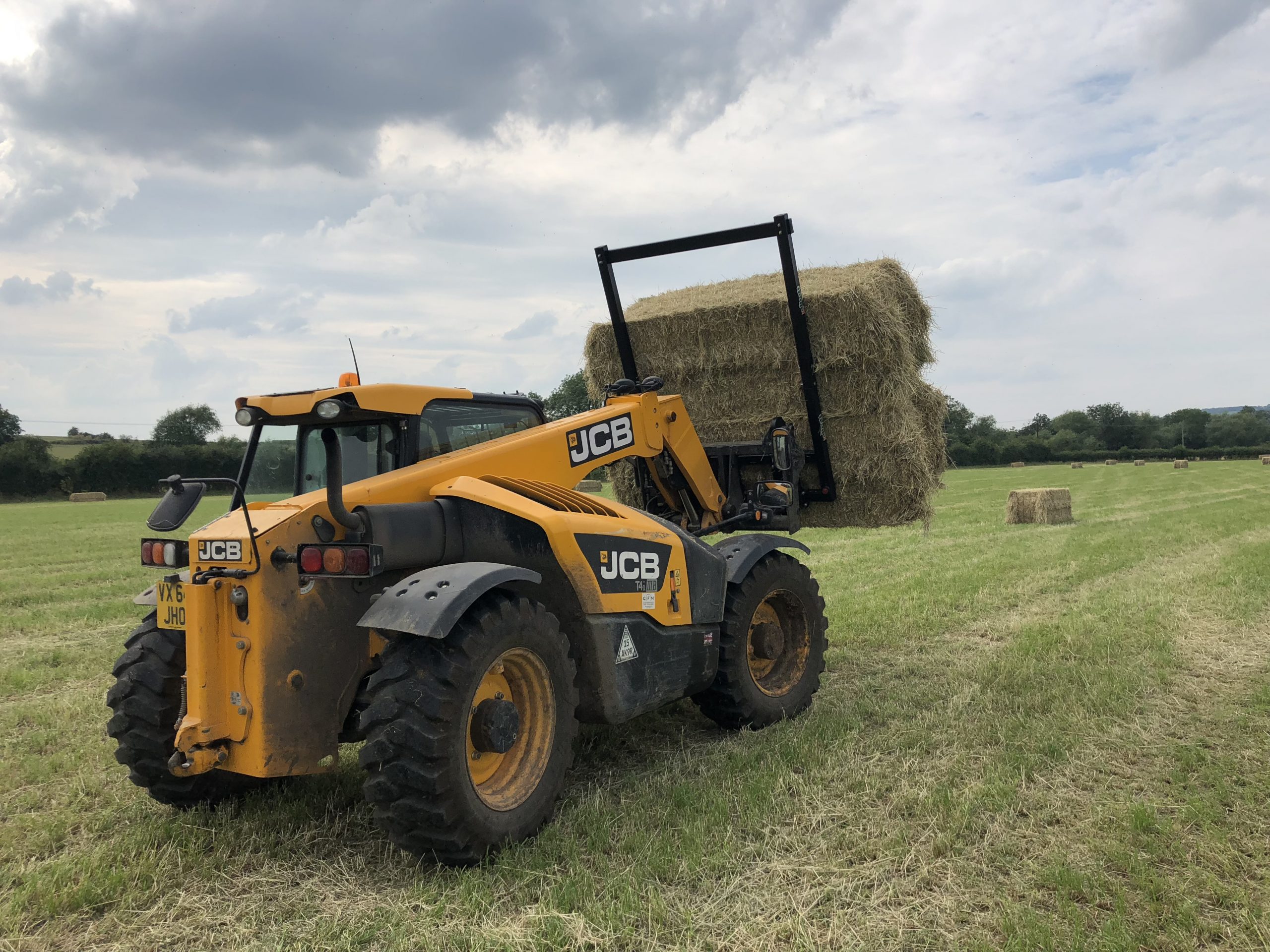

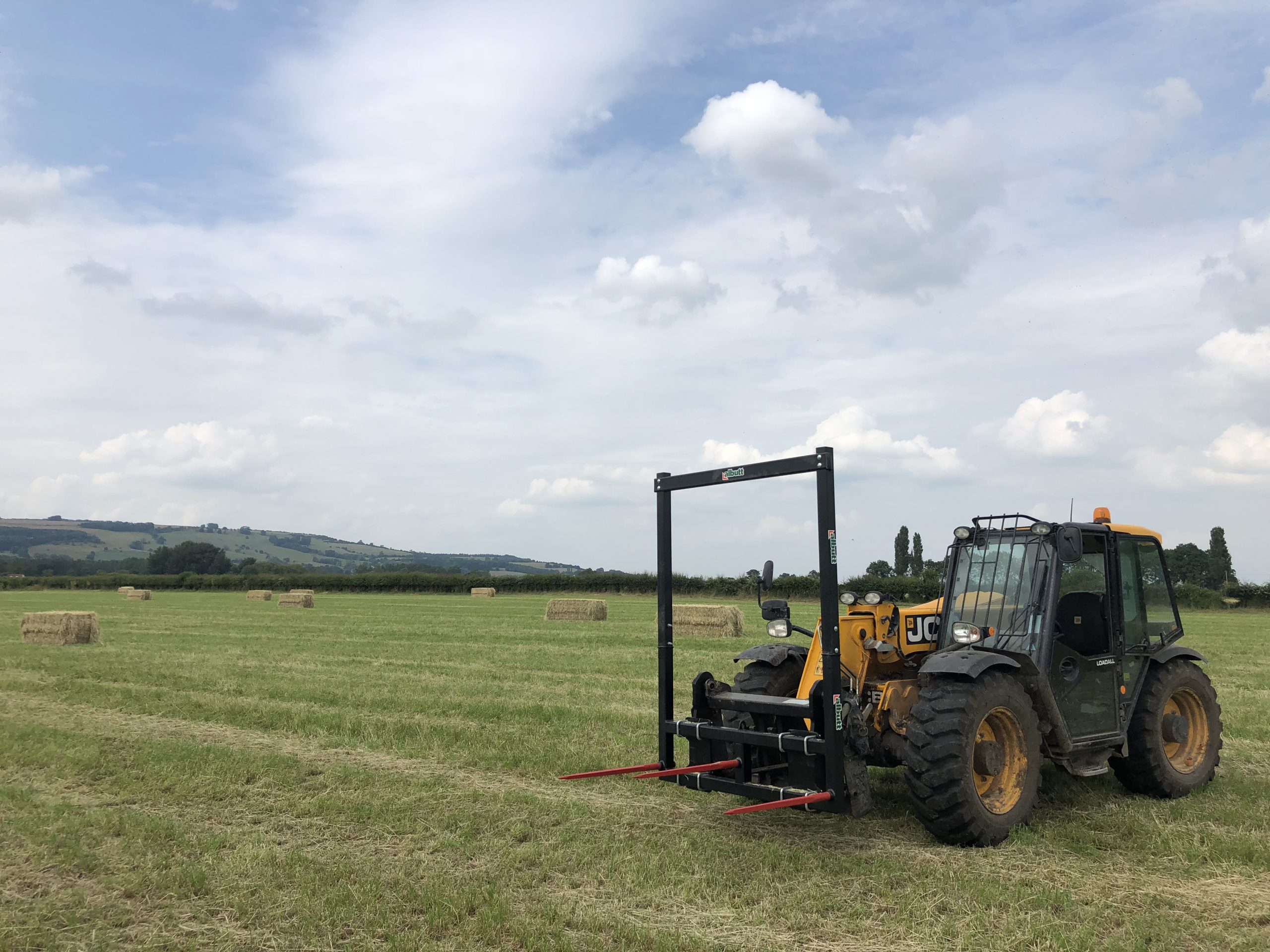

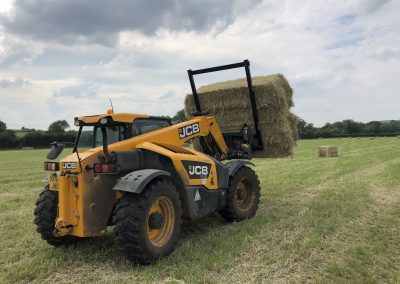

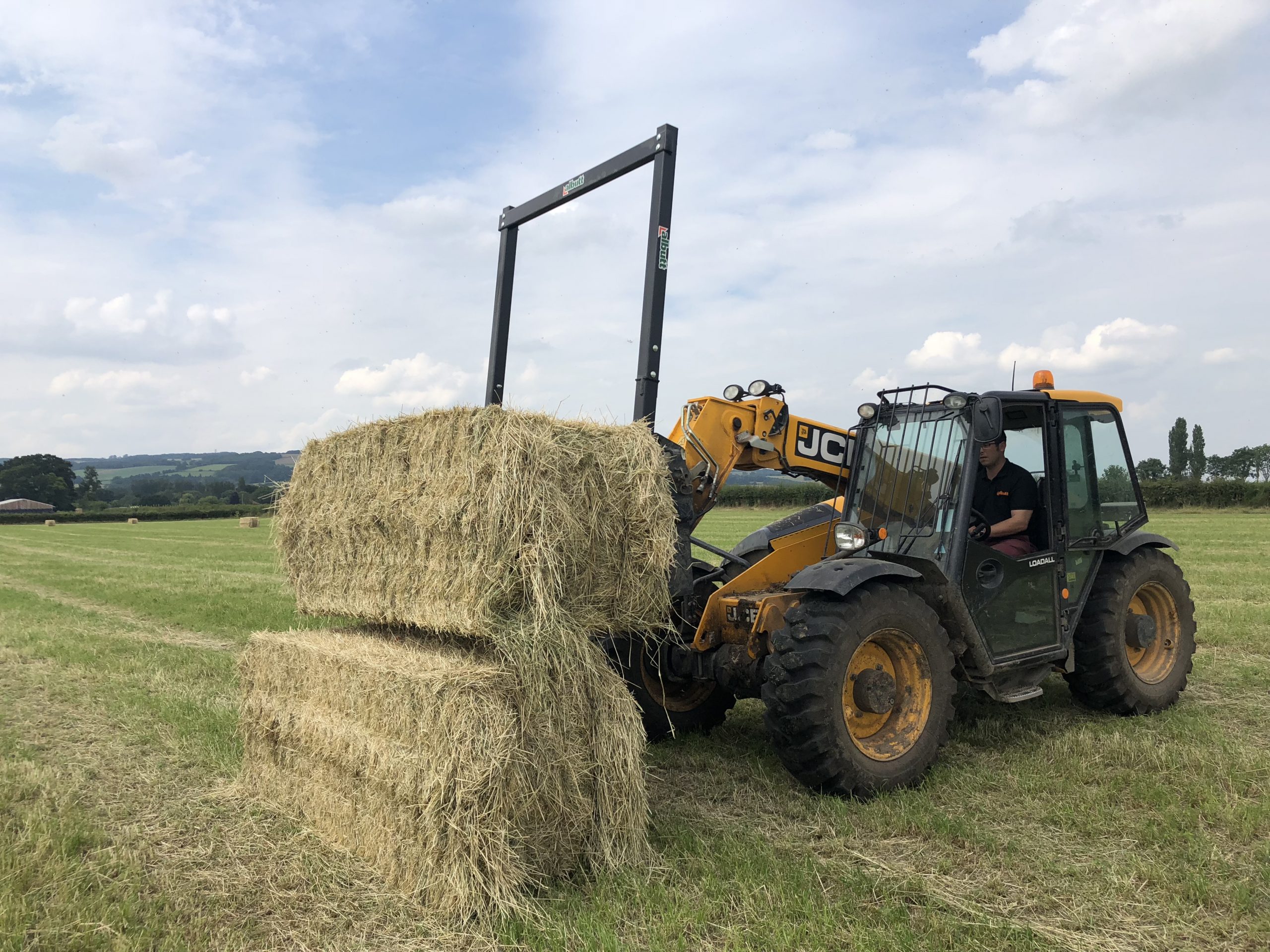

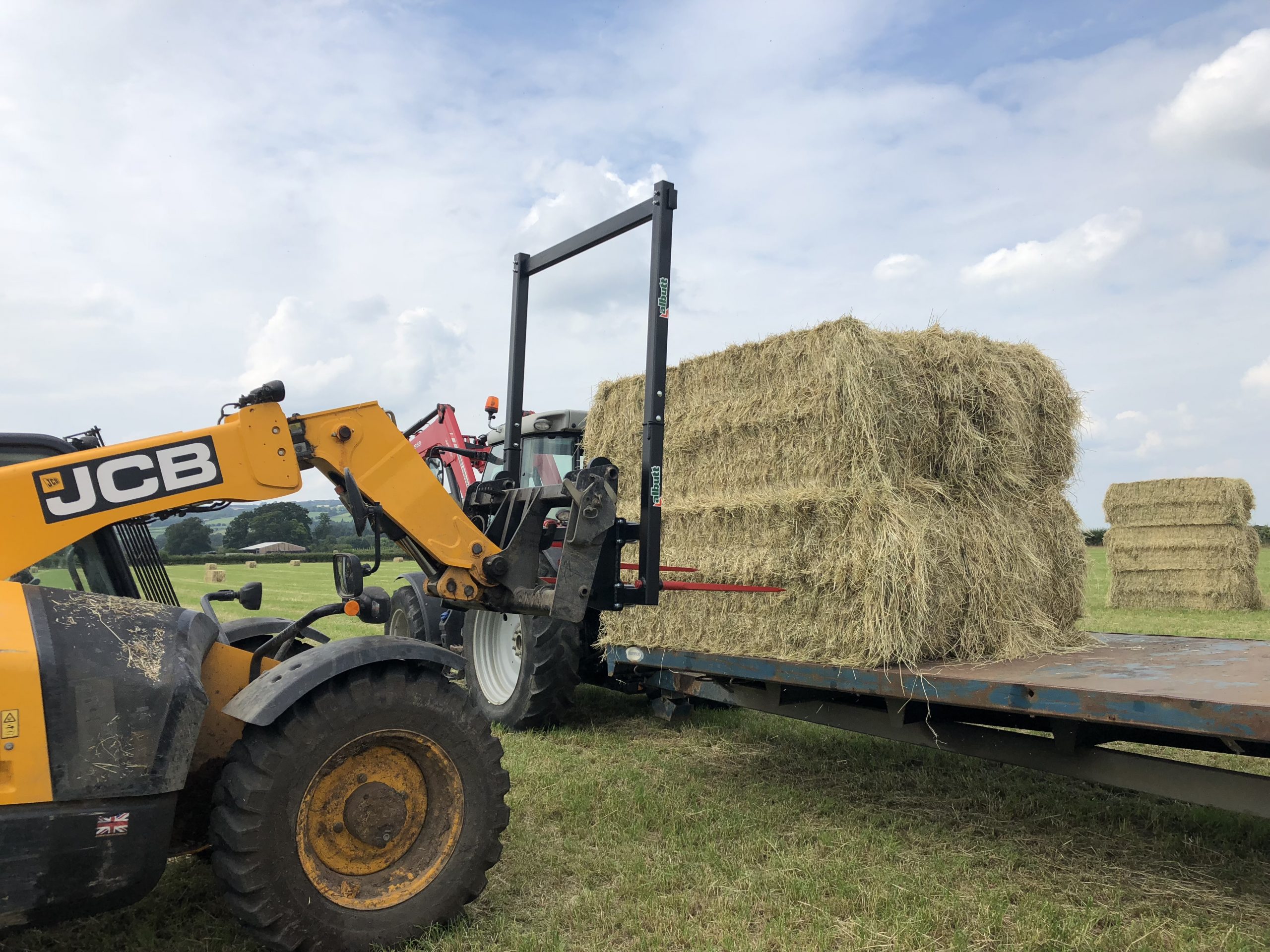

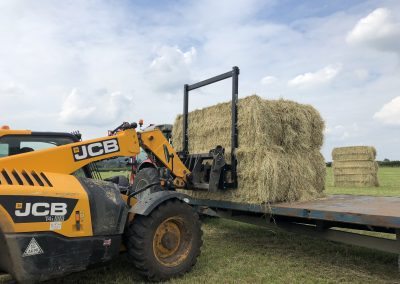

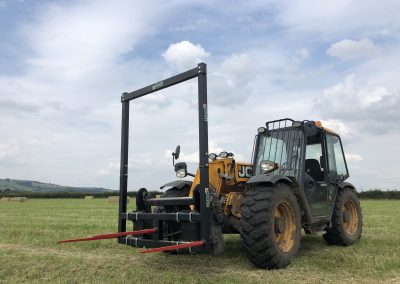

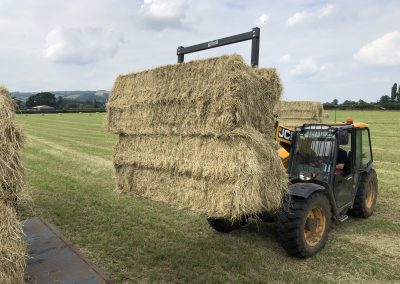

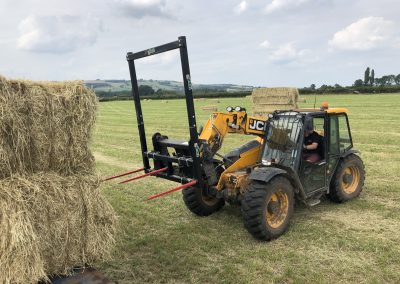

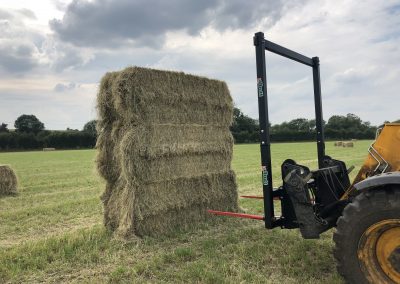

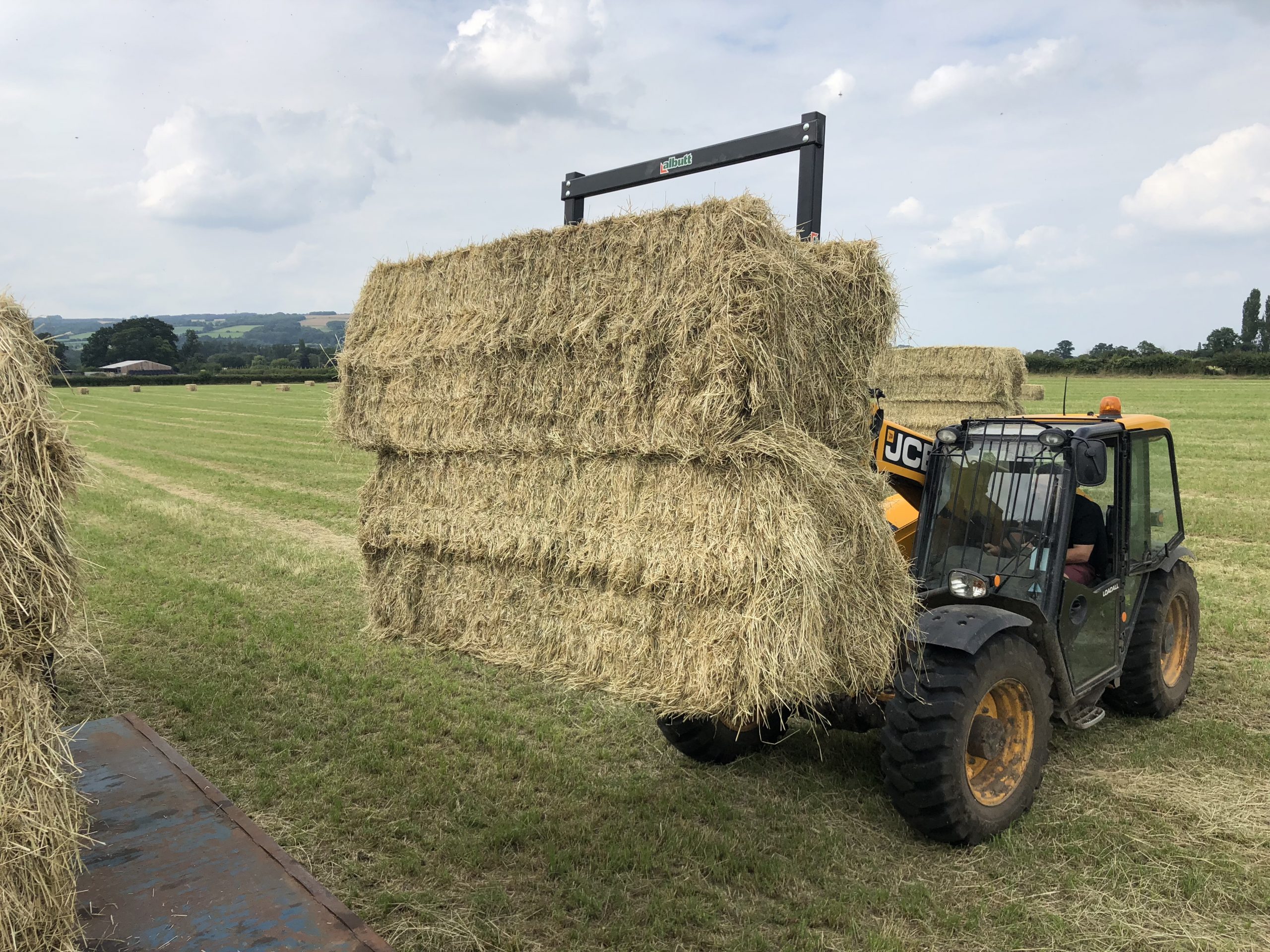

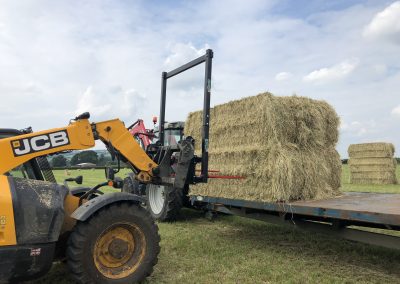

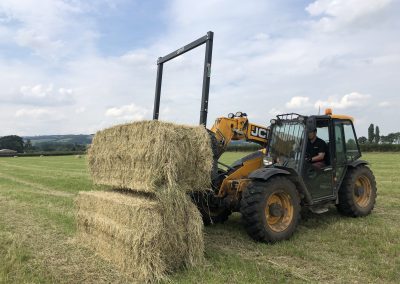

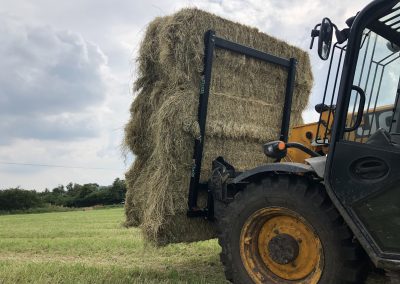

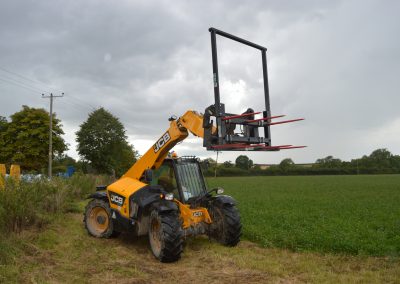

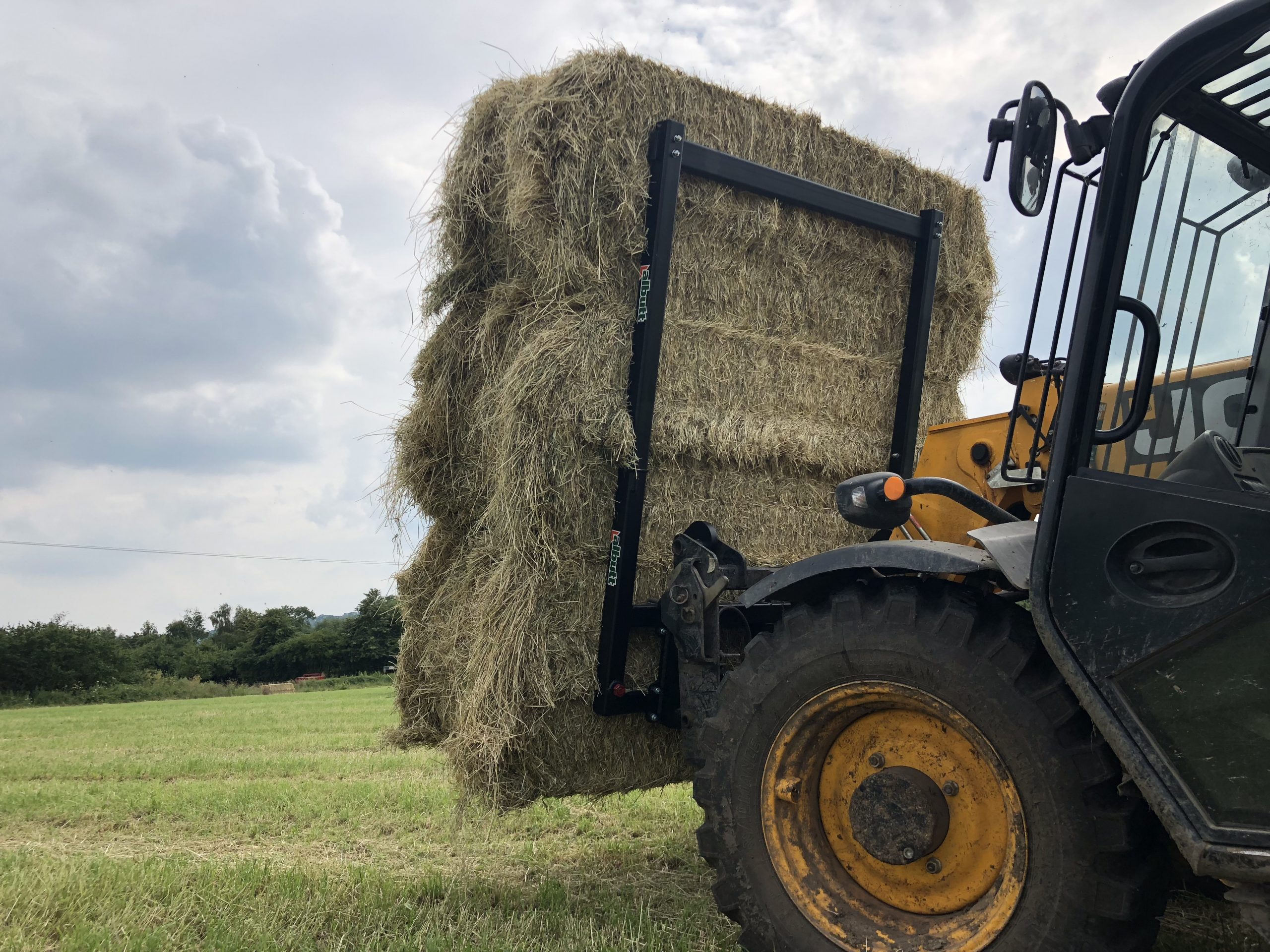

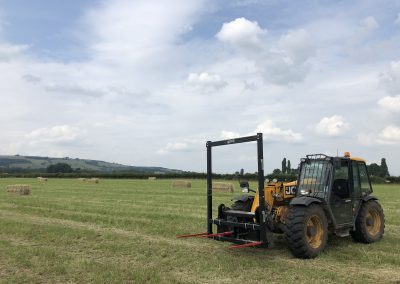

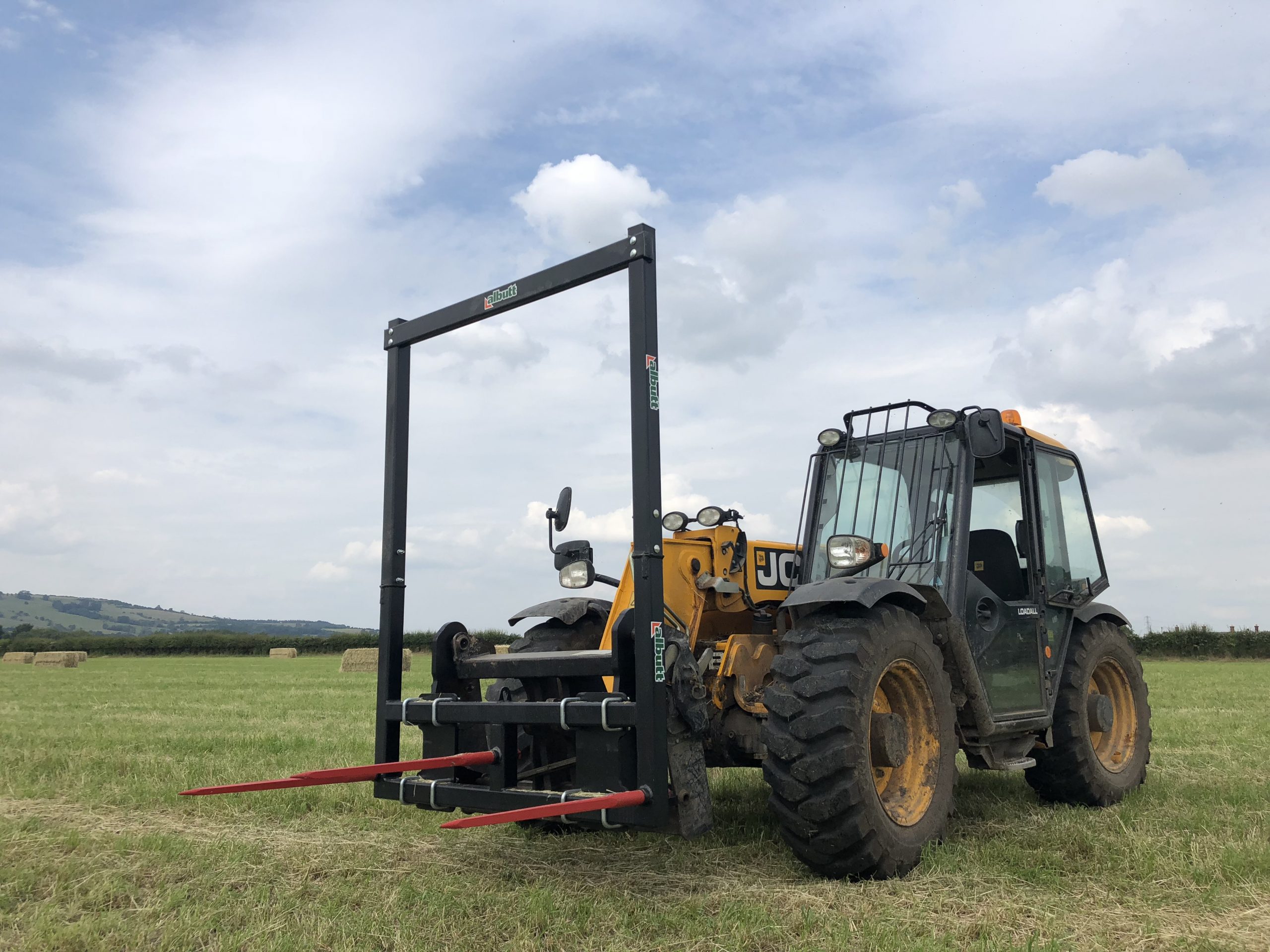

Rectangular Bale Spikes
- Removable back frame to prevent bales falling back onto the handler
- 2136mm tall with frame / 1080mm tall without frame
- Substantial heavy duty box section design
- 3 x 980mm KV forged steel tines
- Optional fold up tine facility
- Tines mounted in steel bushes
- Normally in stock
- Fold up tine option
- Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details
- For 3 x mini hesstons / 2 x hesstons
| Model | Tines | Will Handle | Weight |
|---|---|---|---|
| F131 | 3 x 980mm | 3 x mini hesstons / 2 x hesstons | 153kgs |
| F131/FT | 3 x 980mm | 3 x mini hesstons / 2 x hesstons (Fold Up Tines | 185kgs |
Pricing
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| ES100 Euro | £568 | £426 | £415 | £405 |
| CS100 Pin Cone | £856 | £642 | £626 | £610 |
| CS100 JCB Q Fit | £856 | £642 | £626 | £610 |
| CS100 Manitou | £856 | £642 | £626 | £610 |
| CS100 Merlo | £856 | £642 | £626 | £610 |
| F100** | £560 | £420 | £410 | £399 |
| F110** | £642 | £481 | £469 | £457 |
| F131** | £1,231 | £923 | £900 | £878 |
| F131FT** | £2,105 | £1,579 | £1,539 | £1,501 |
| F125** | £1,945 | £1,459 | £1,423 | £1,387 |
** bolt on brackets nett cost £300 + VAT
** bolt on brackets retail cost £400 + VAT

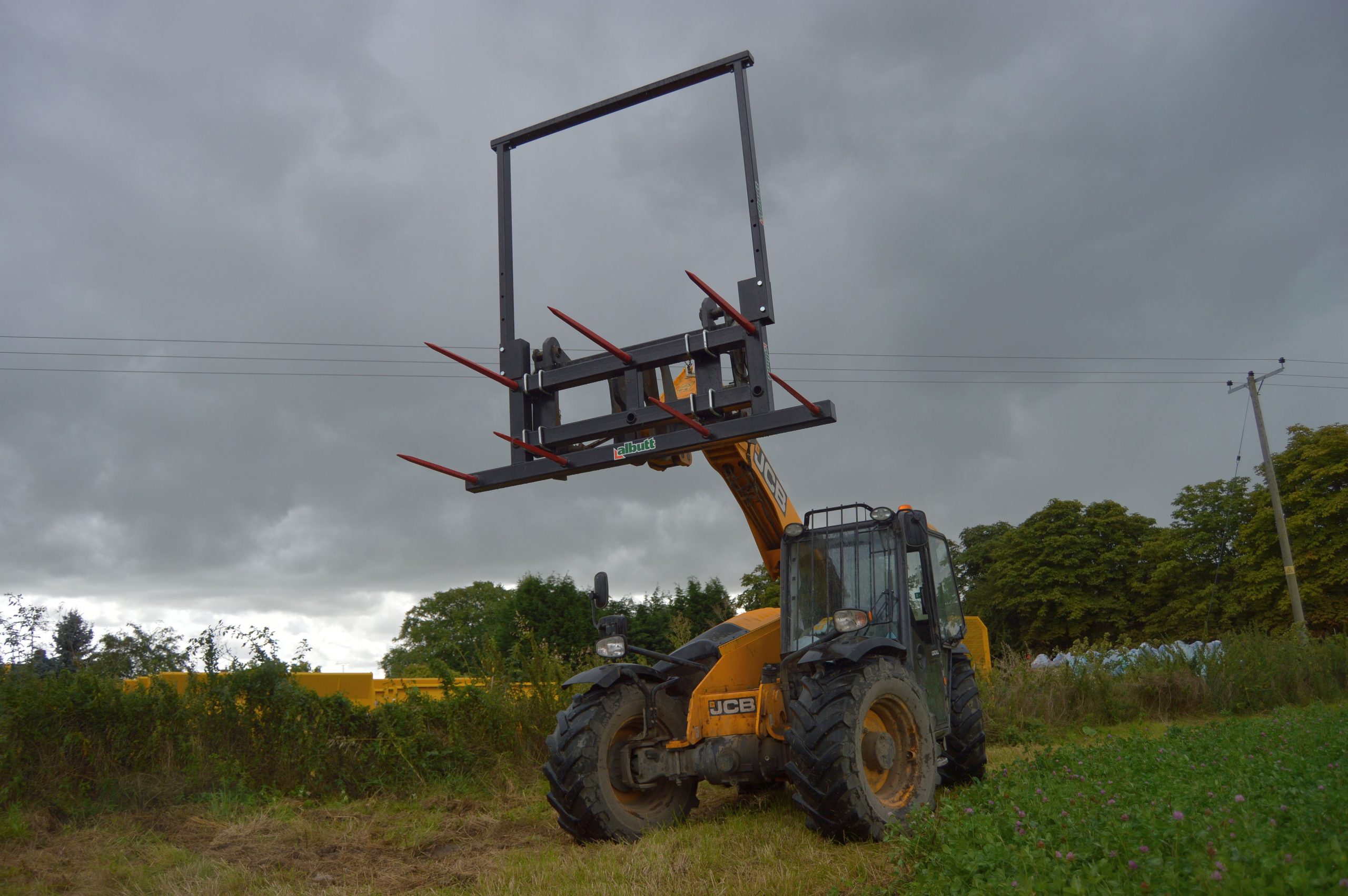

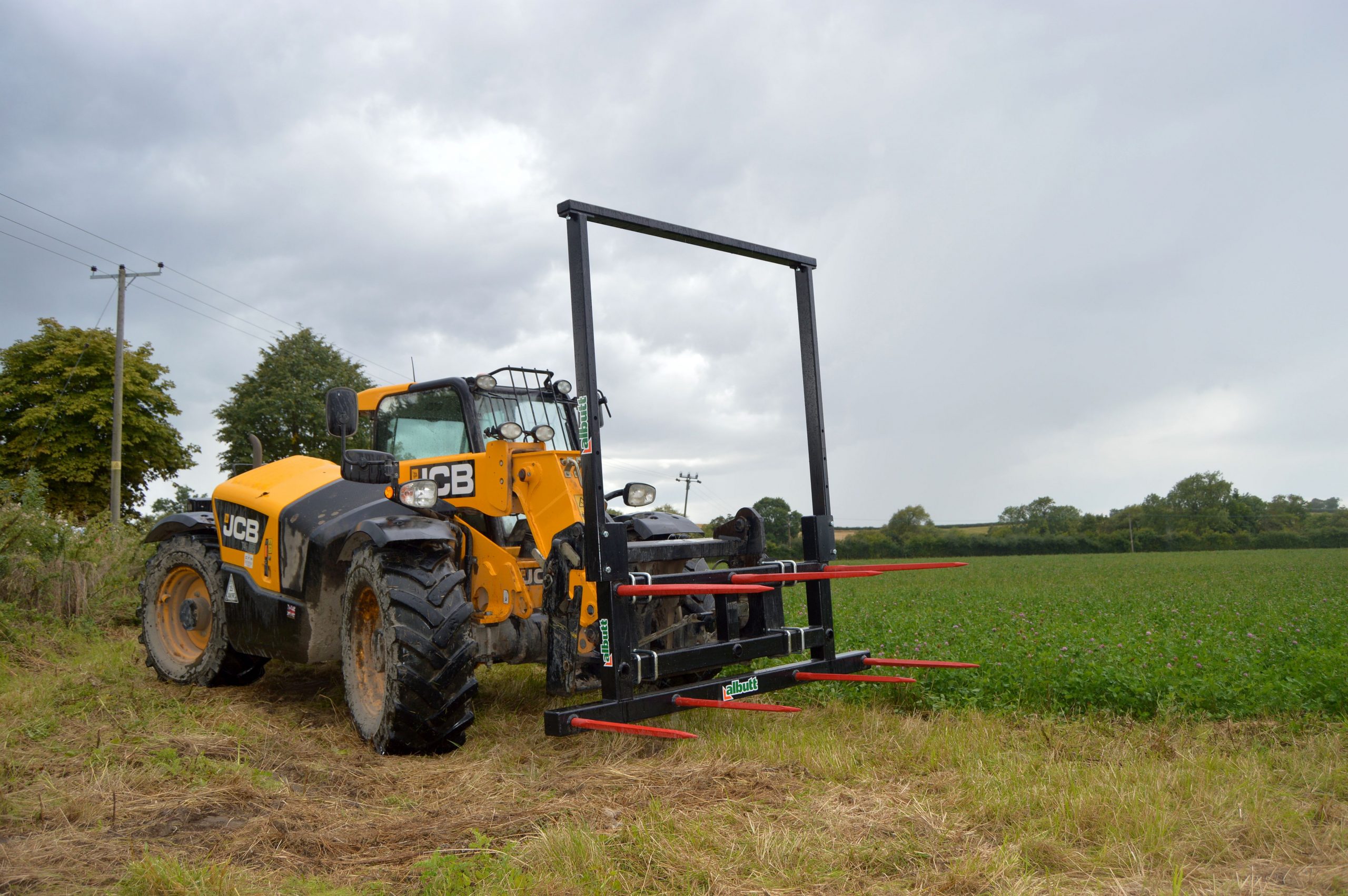

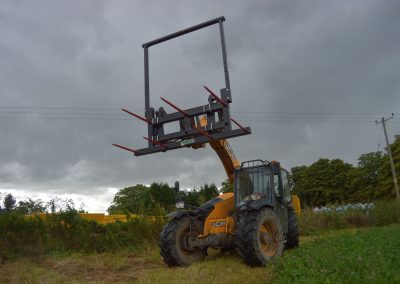

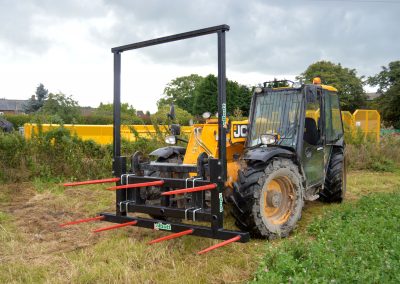

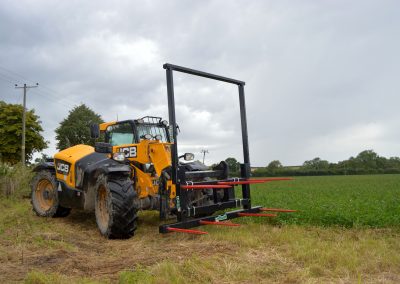

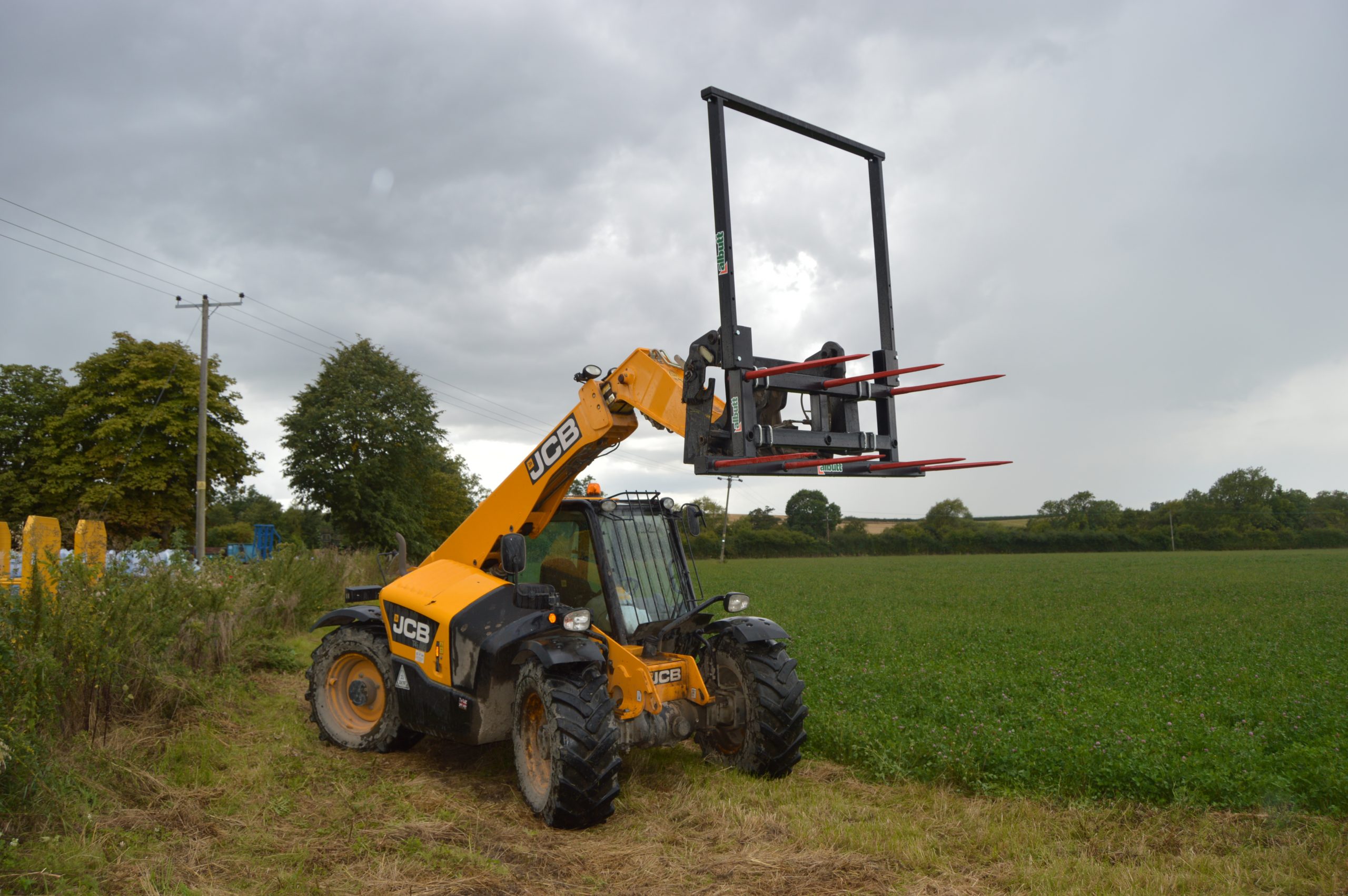

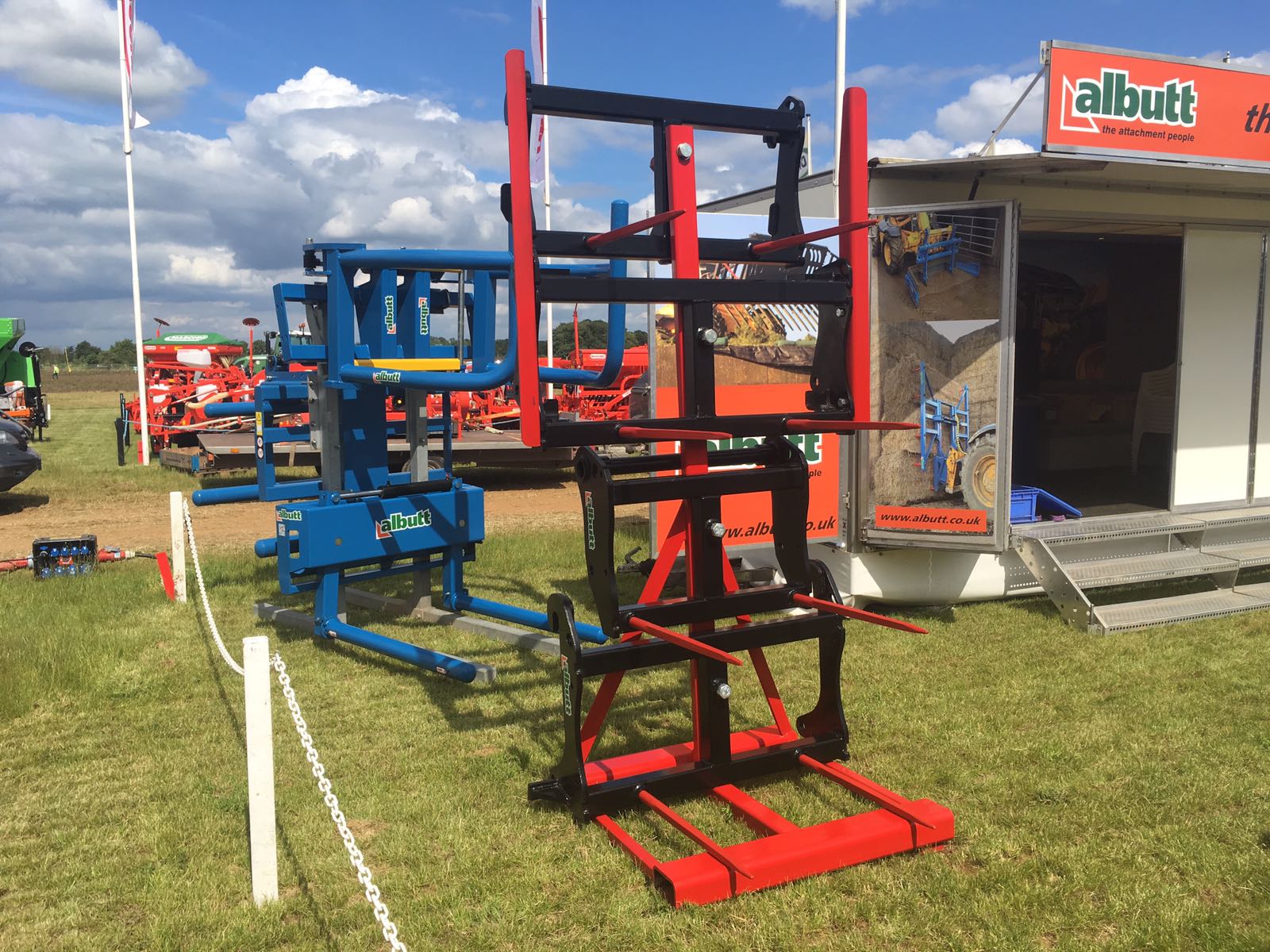

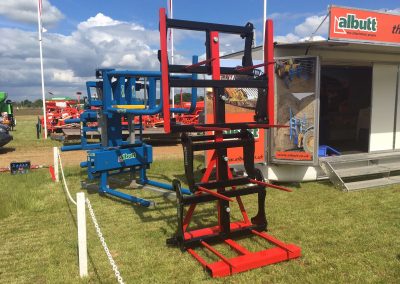

Multi Bale Spikes
- Height adjustable back frame to prevent bales falling back onto the handler
- Substantial heavy duty box section design
- 7 x KV forged steel tines
- 3 of the 7 tines can be moved to suit bale height
- Tines mounted in steel bushes
- Recommended to be used with Albutt’s bolt on bracket system – ask your dealer for details
- Handle round and square straw bales
- 2200mm wide
- Maximum height 2270mm
- Minimum height 1770mm
| Model | Tines | Will Handle | Weight |
|---|---|---|---|
| F125 | 3 x 980mm / 4 x 810mm | 2 x rounds / 2 x hesstons / 3 x mini hesstons / 4 x quadrants / 6 x mini quadrants | 210kgs |
