Fork and Grapples

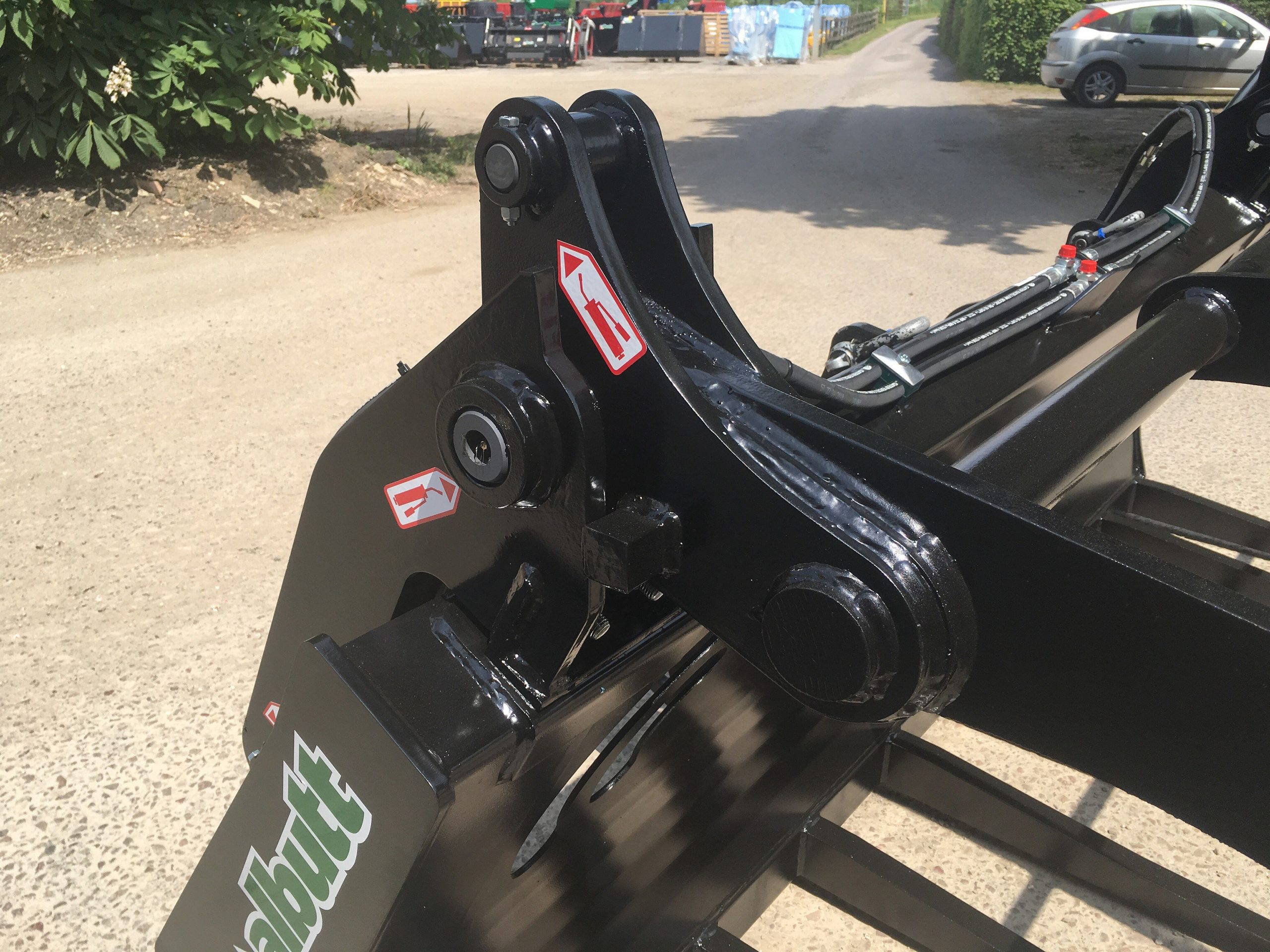

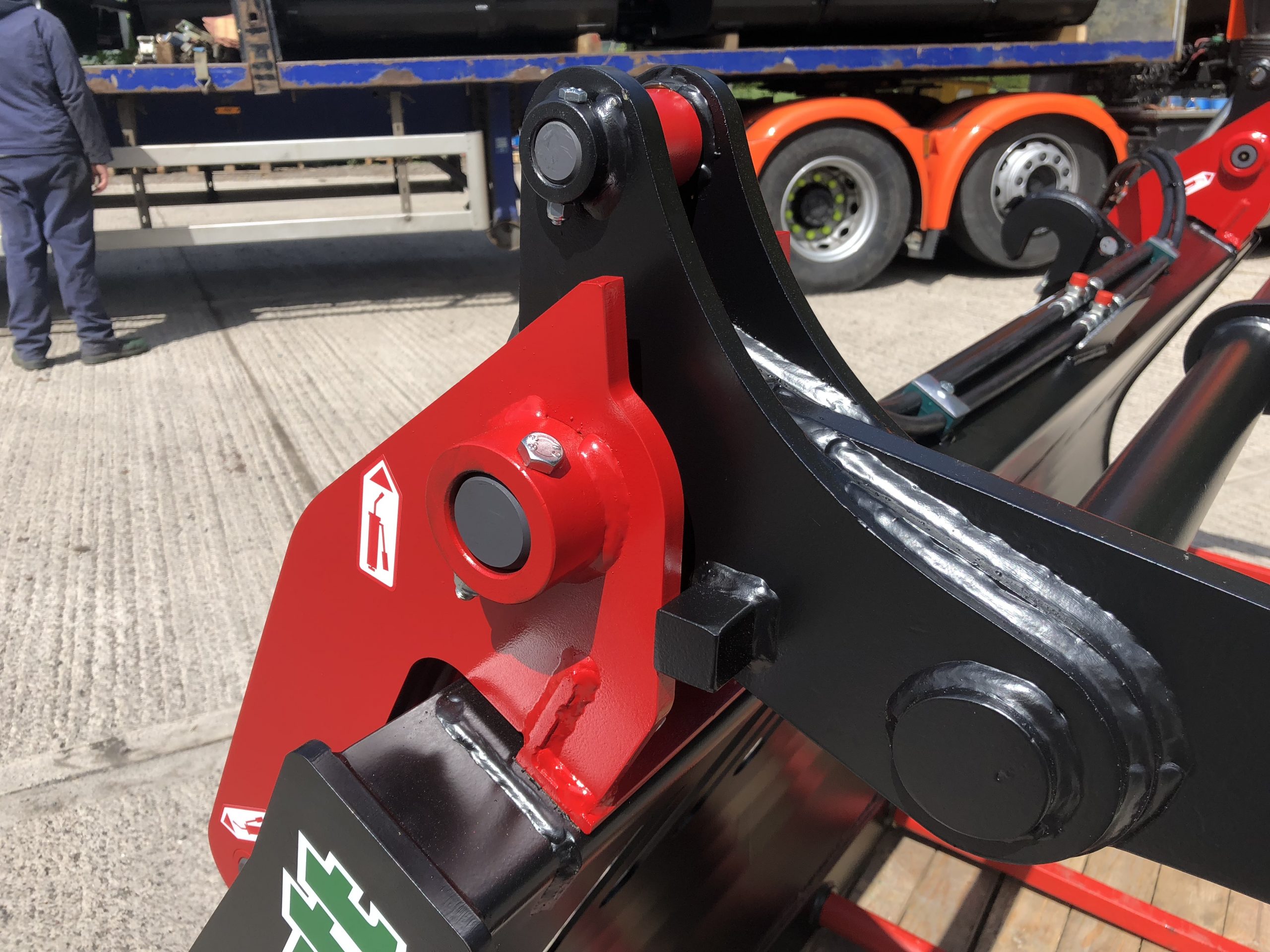

The Albutt range of Fork and Grapples covers models for use on Telehandlers and Loading Shovels. A market leading specification ensures that the Albutt range of Fork and Grapples provides a longer operating life whilst providing excellent usability. For Hardox tine models, we use genuine Hardox material to provide resistance to bending and breaking against conventional tines. B-Series and C-Series models also incorporate a heavy duty grab stop which prevents against over extension of the grab, resisting against pin breakages and ram seals leaking.
Ranges
B Series – For machines with a 4 tonne plus lift capacity
C Series – For machines with a 2-4 tonne lift capacity
Albutt Fork and Grapple Features

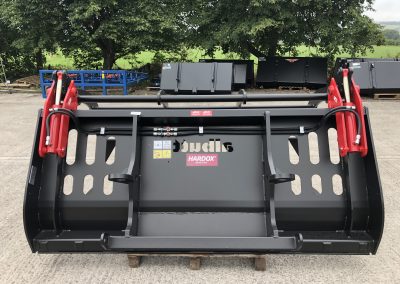

- Solid fork back – keep carriage and hydraulics clean
- Wide opening grabs
- Choice of Hardox and Forged steel base tines

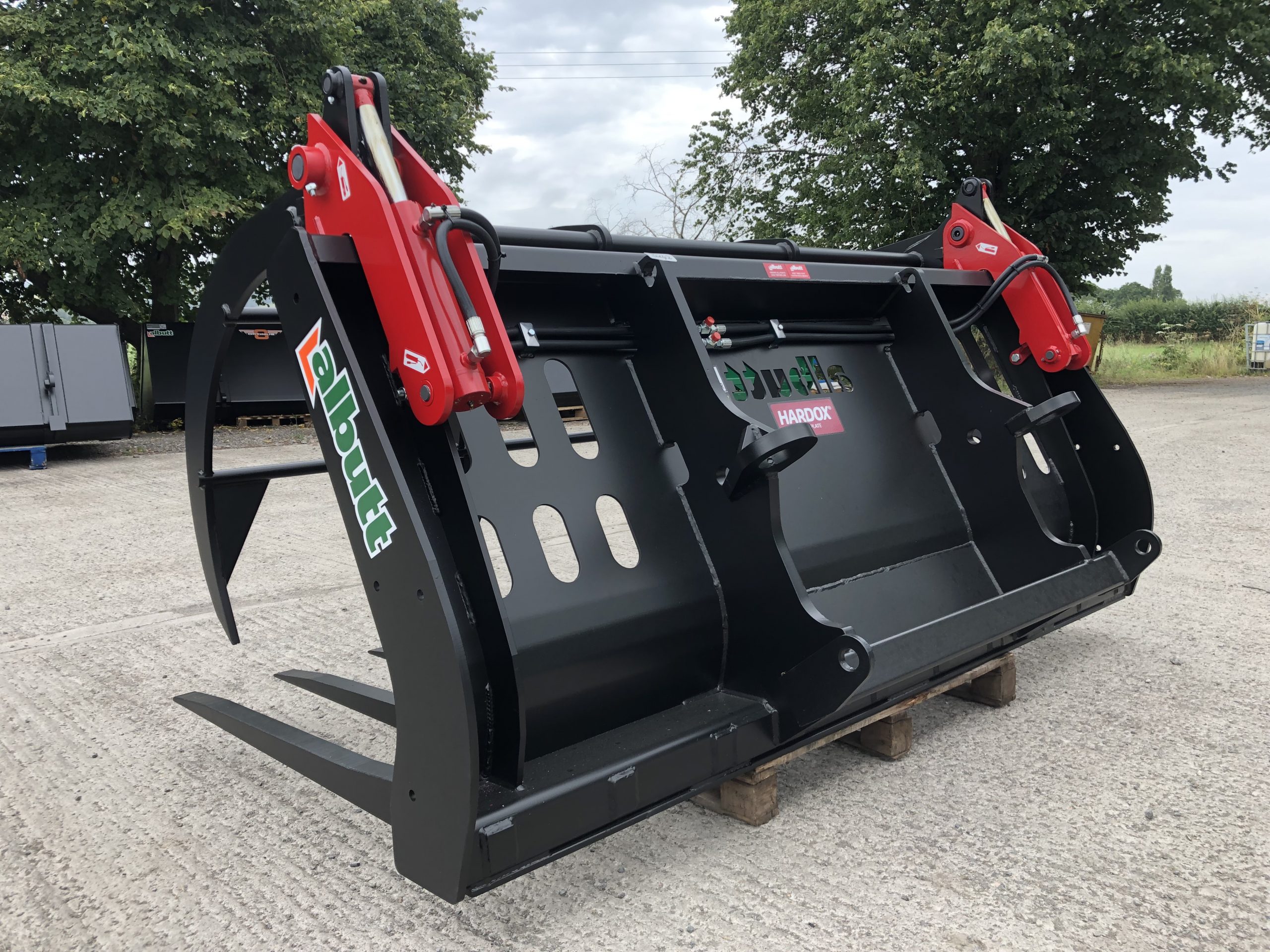

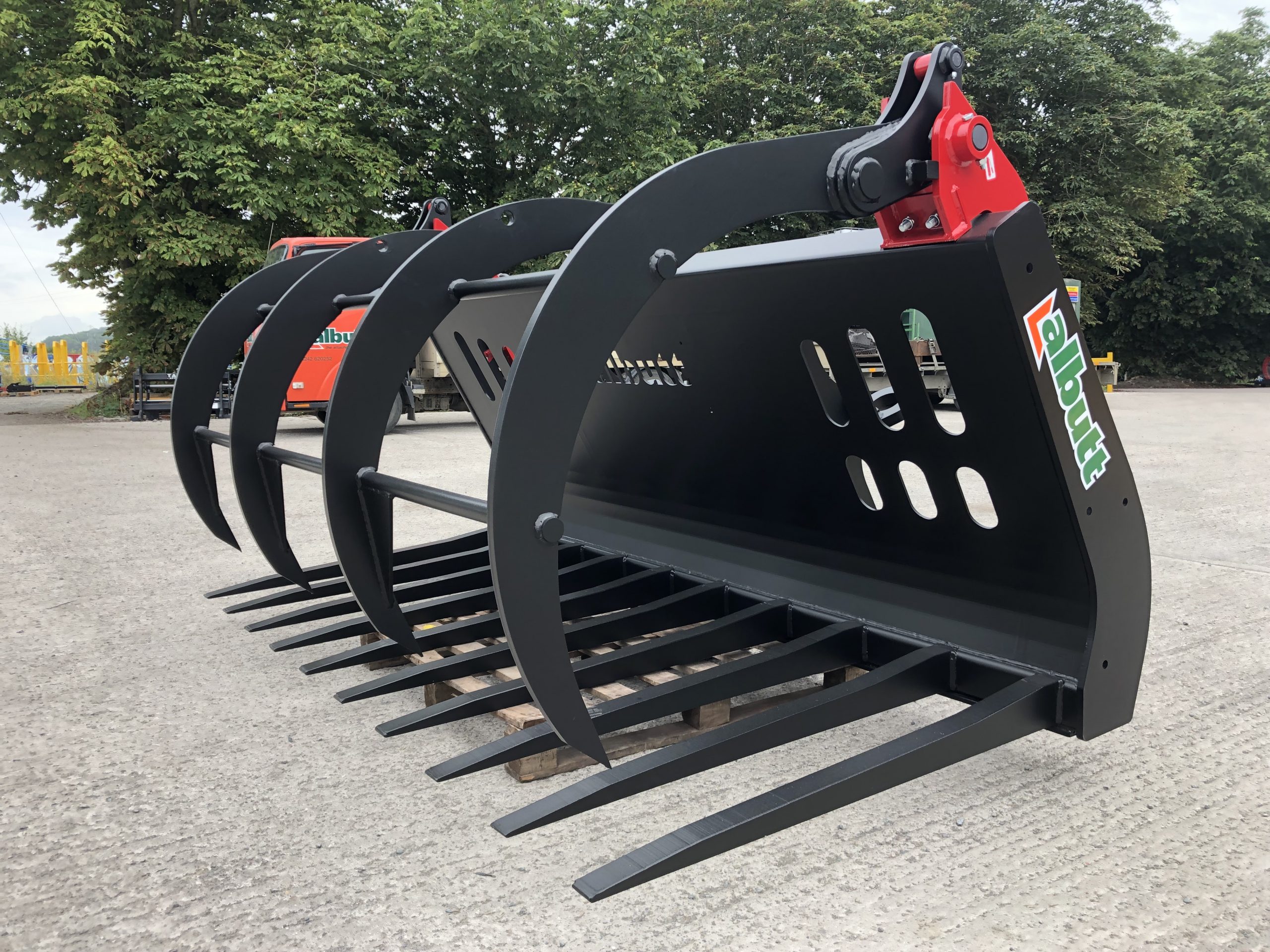

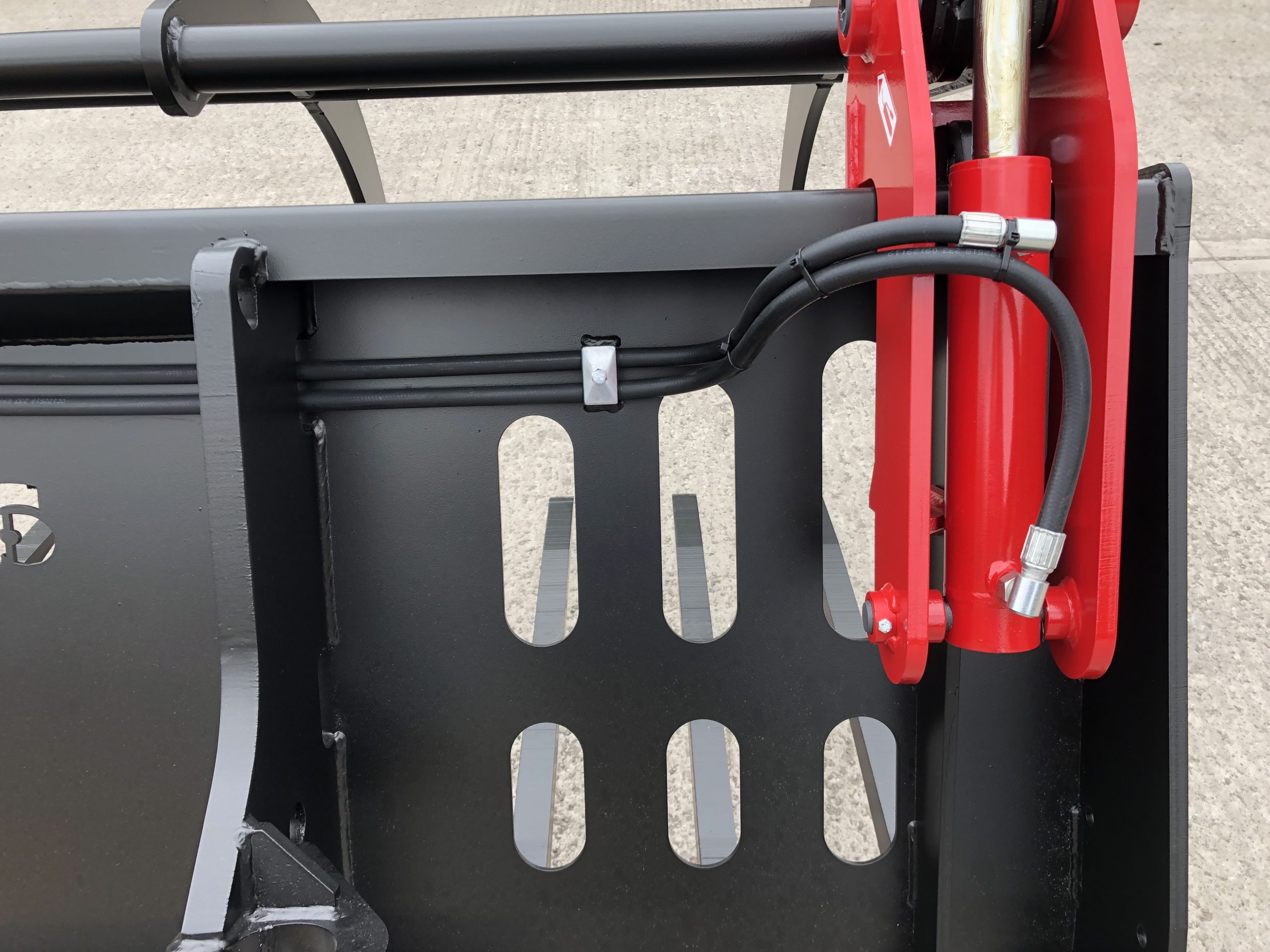

- Cut outs in fork back for visibility

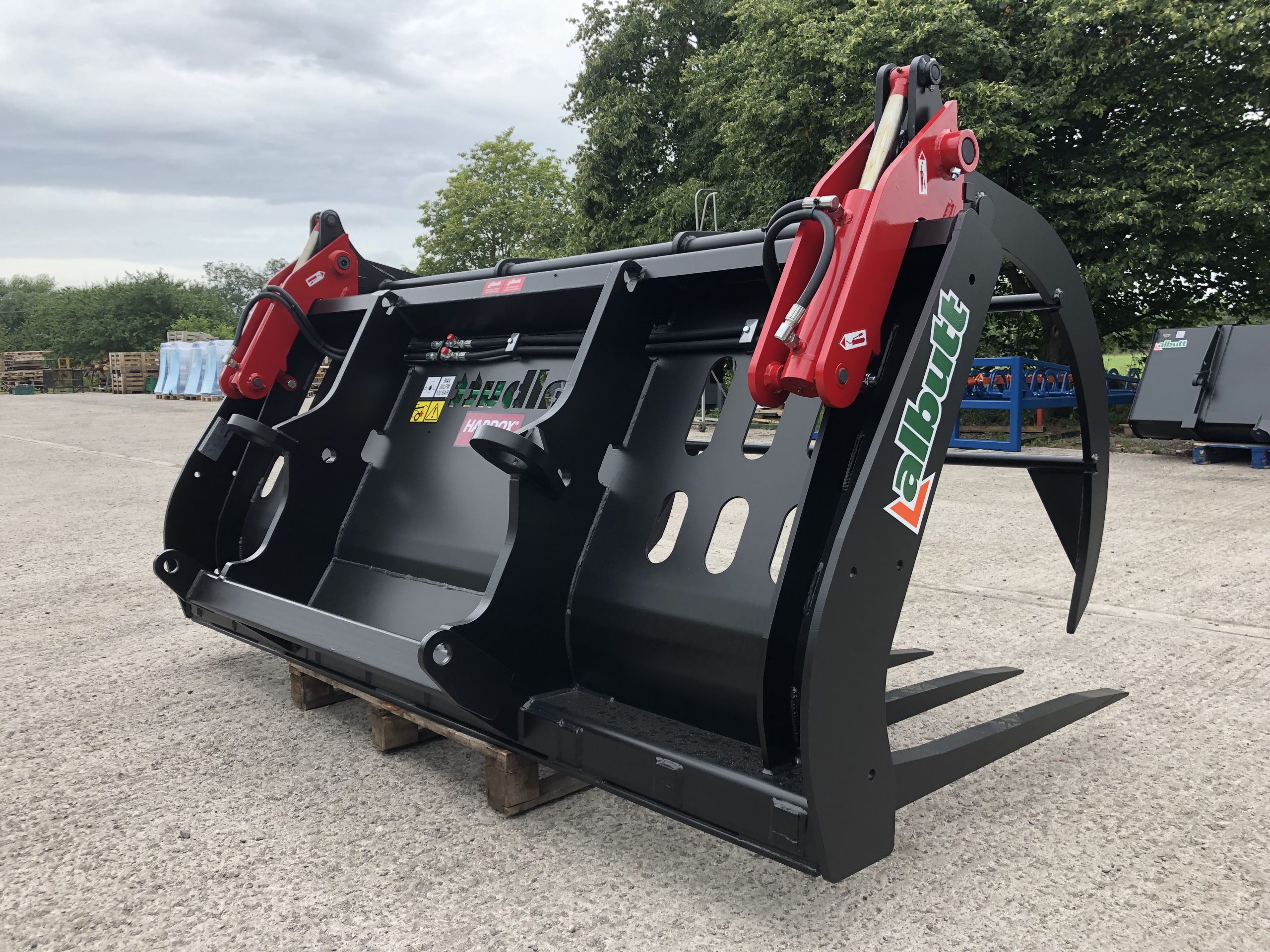

- Bolted on Grapple; quick and easy to remove for use as a standard fork

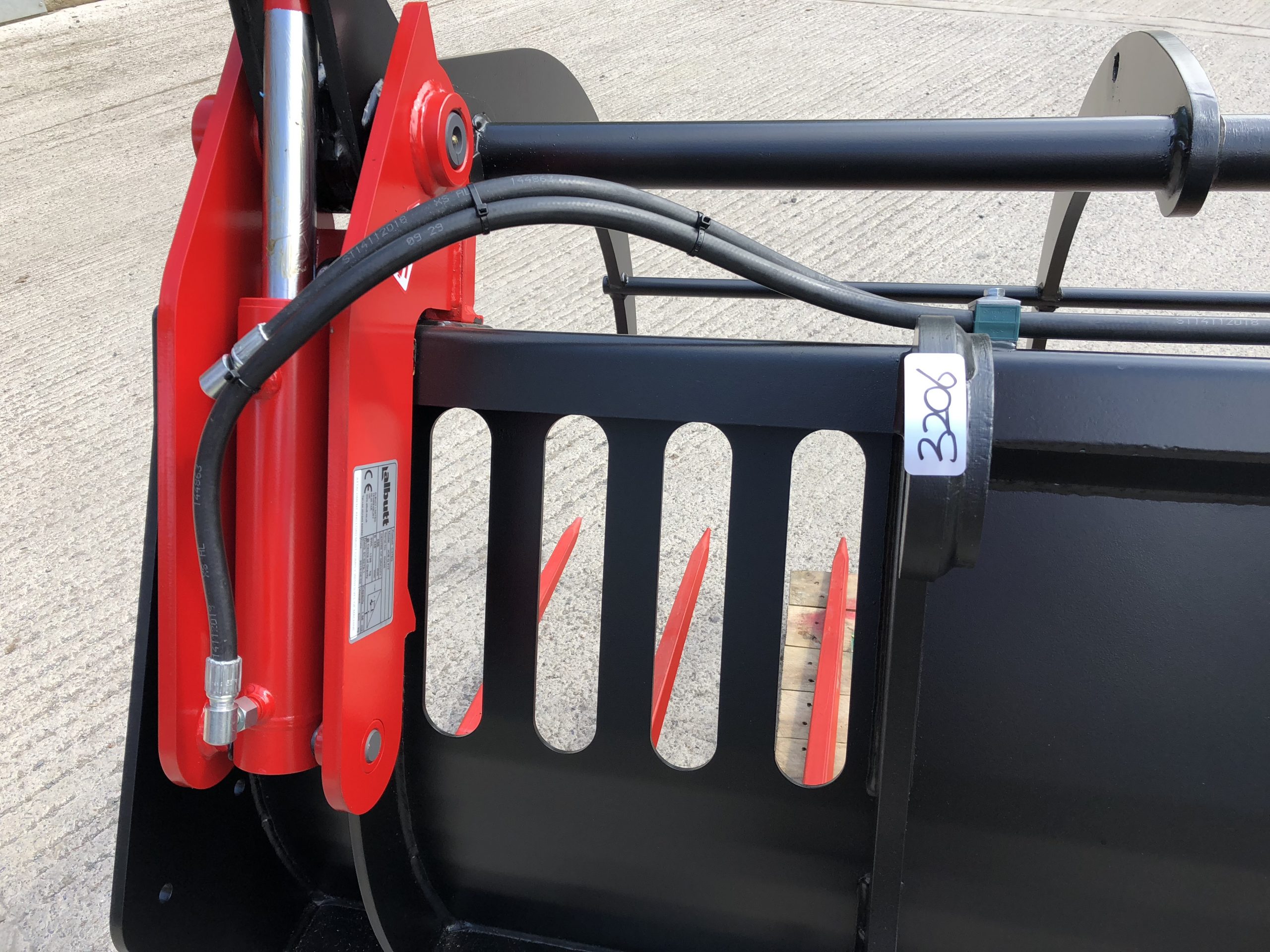

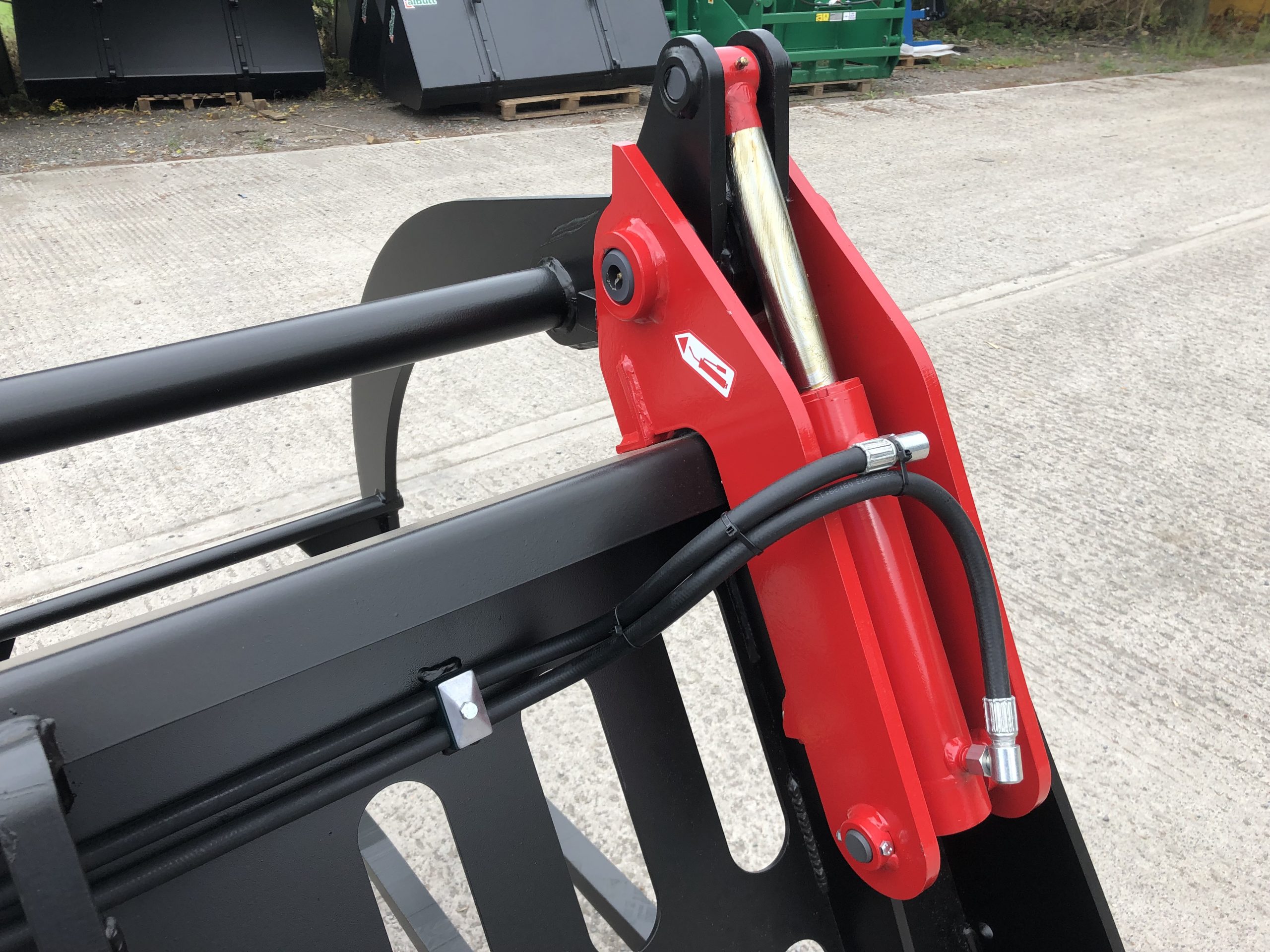

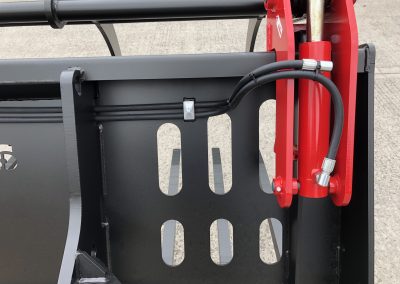

- High capacity hydraulic rams
- Optional side tines; Hardox
- Suitable for a variety of applications
- Hardox tines welded into tine holder
- KV tines bushed into tine holder
B-Series
- For machines with a minimum 4 tonne lift capacity
- Choice of Hardox or KV type tines
- Grab openings; Hardox 1940mm / KV type 1830mm
- 1298mm tall
- Full width base wear pad
- Base Tine length; Hardox 1240mm / KV type 1100mm

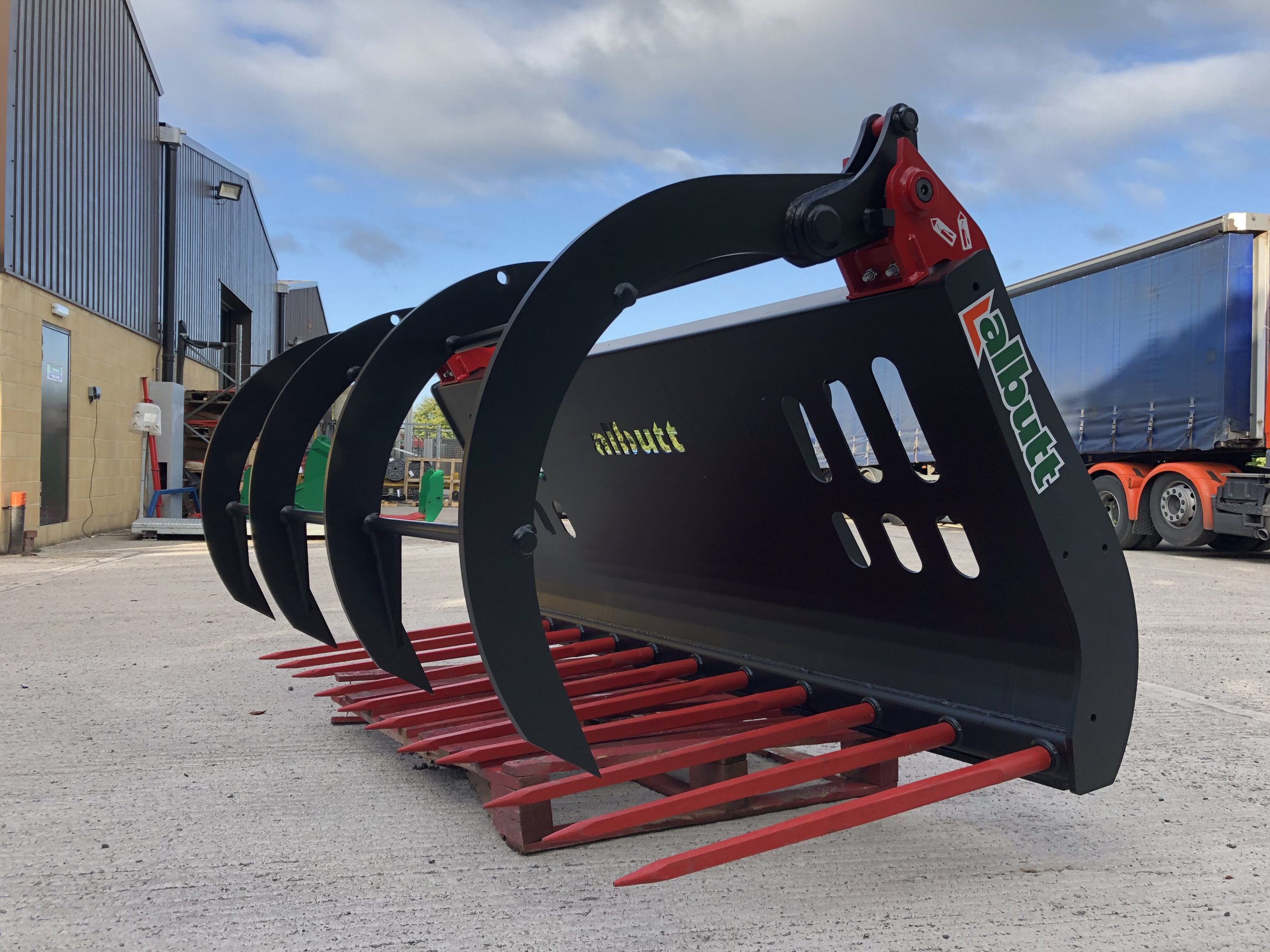

KV type tine models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| B466G | 1.70m3 | 6’6” | 9 |
| B470G | 1.80m3 | 7′ | 9 |
| B476G | 1.95m3 | 7’6” | 10 |

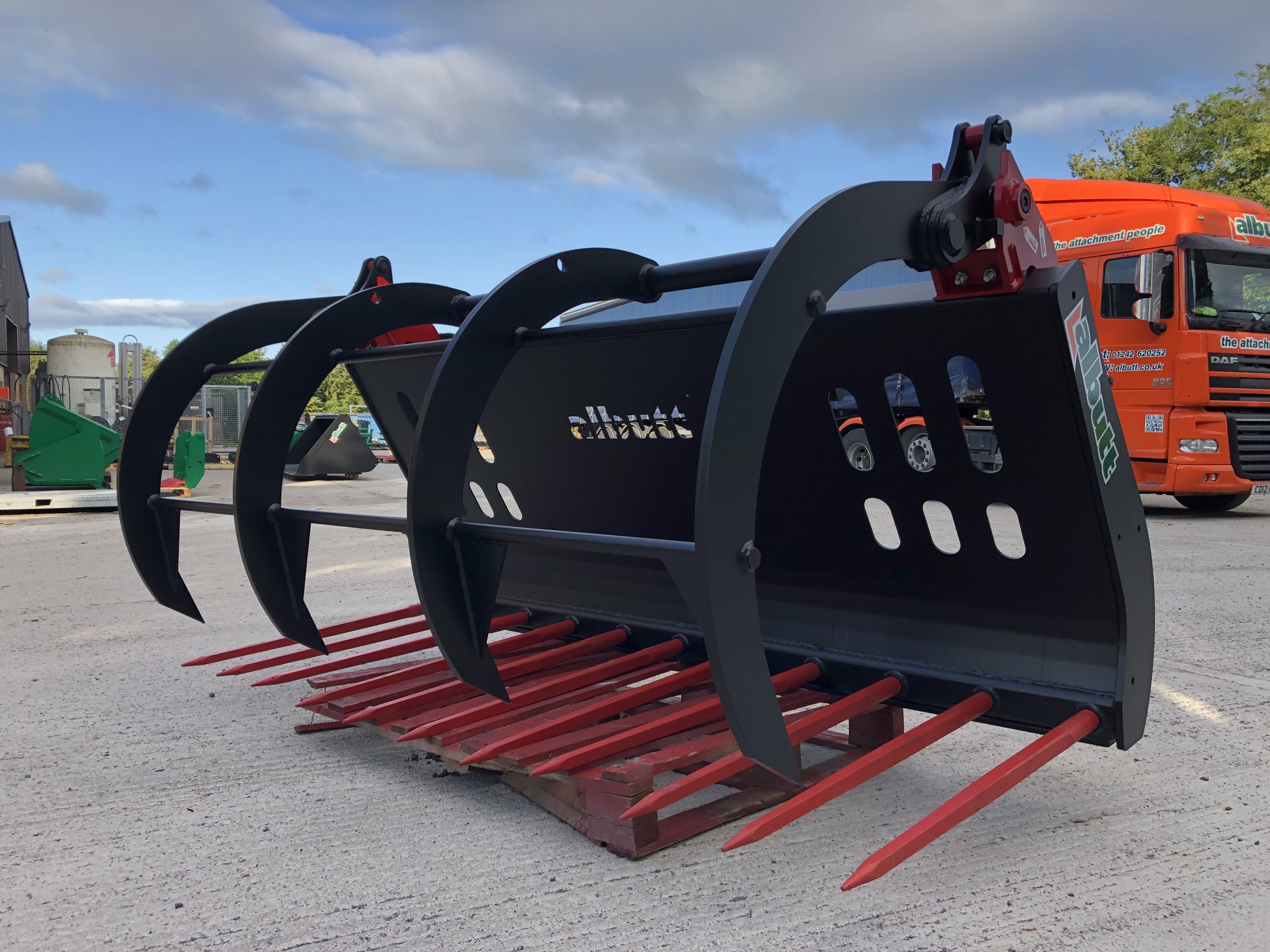

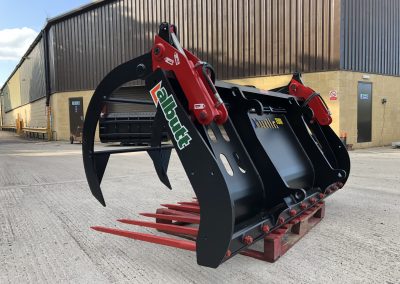

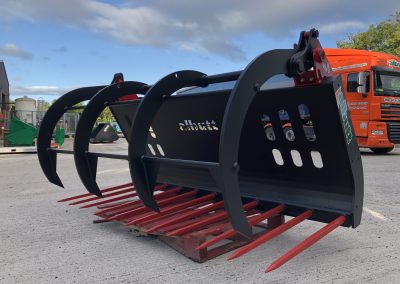

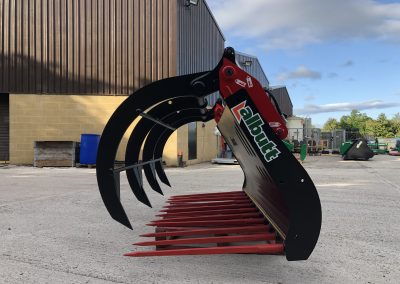

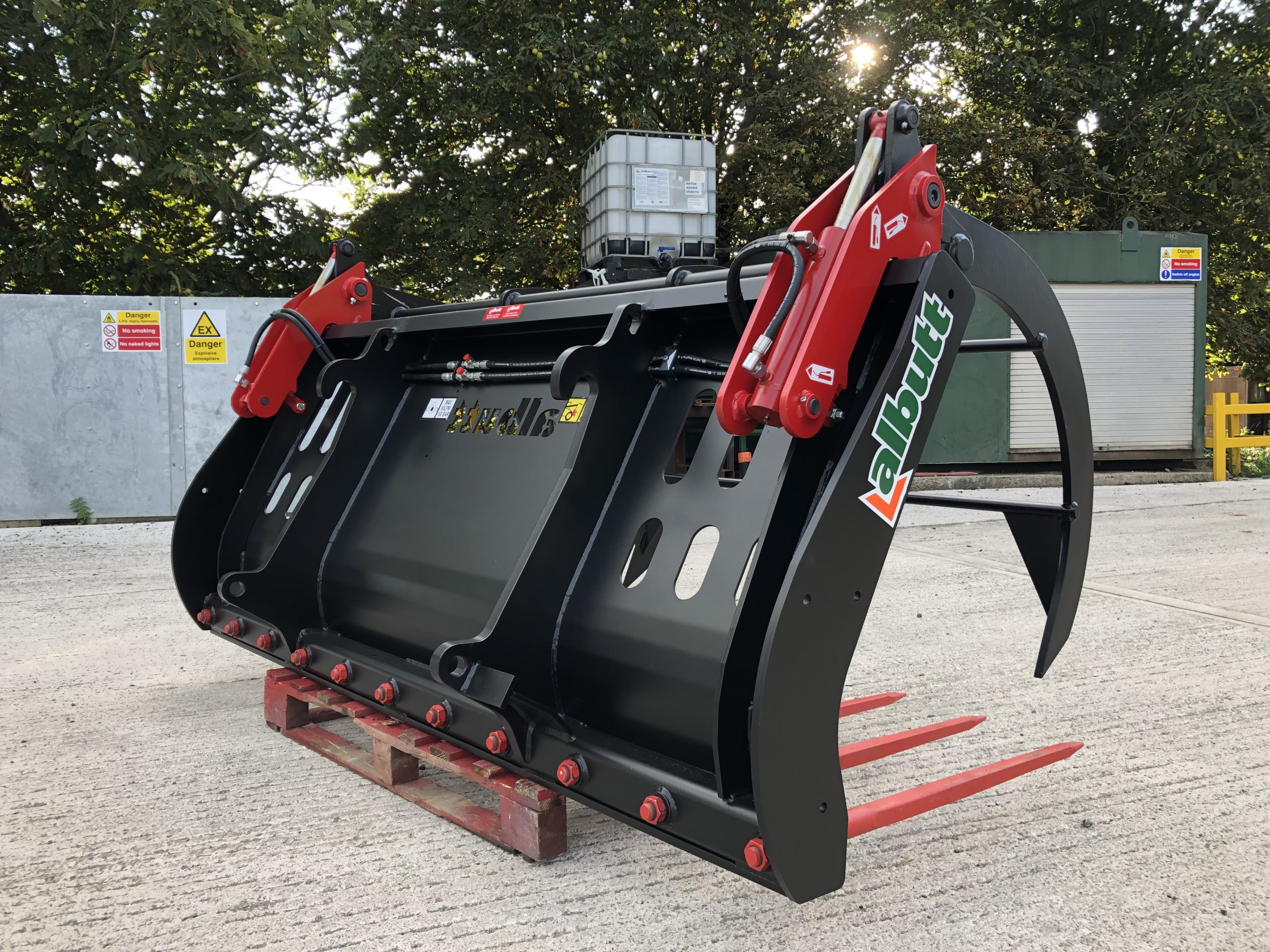

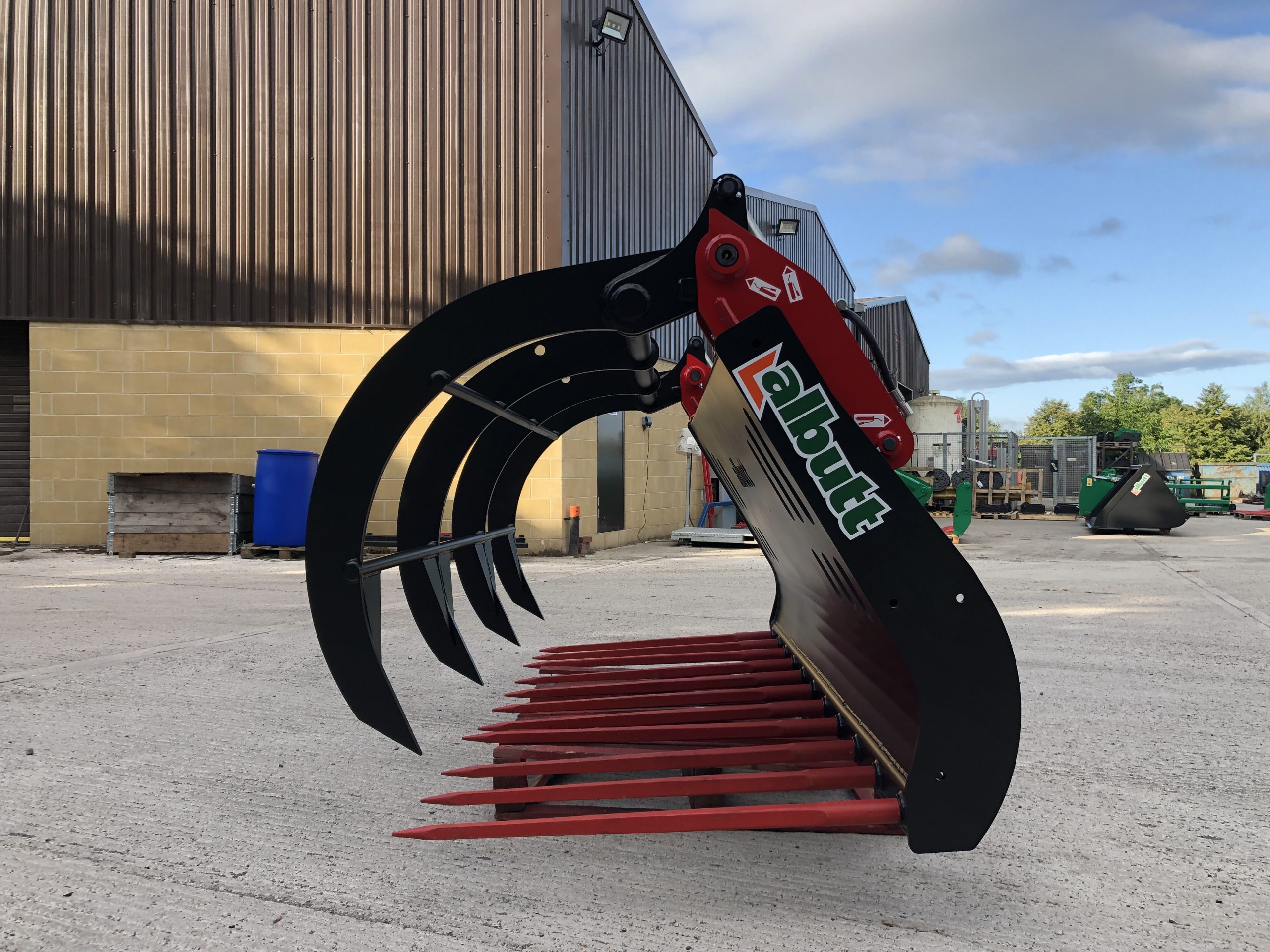

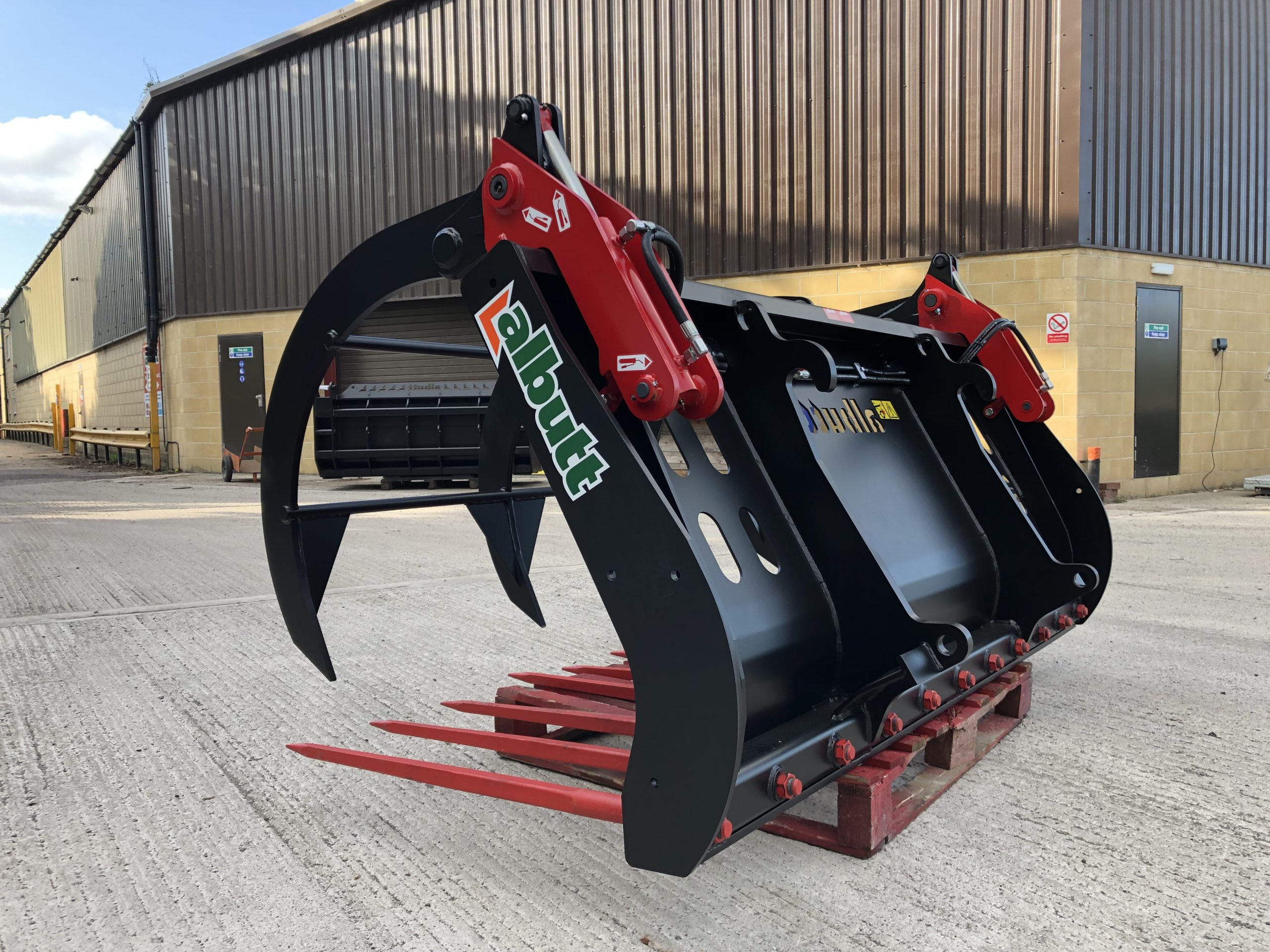

| B480G | 2.10m3 | 8′ | 11 |

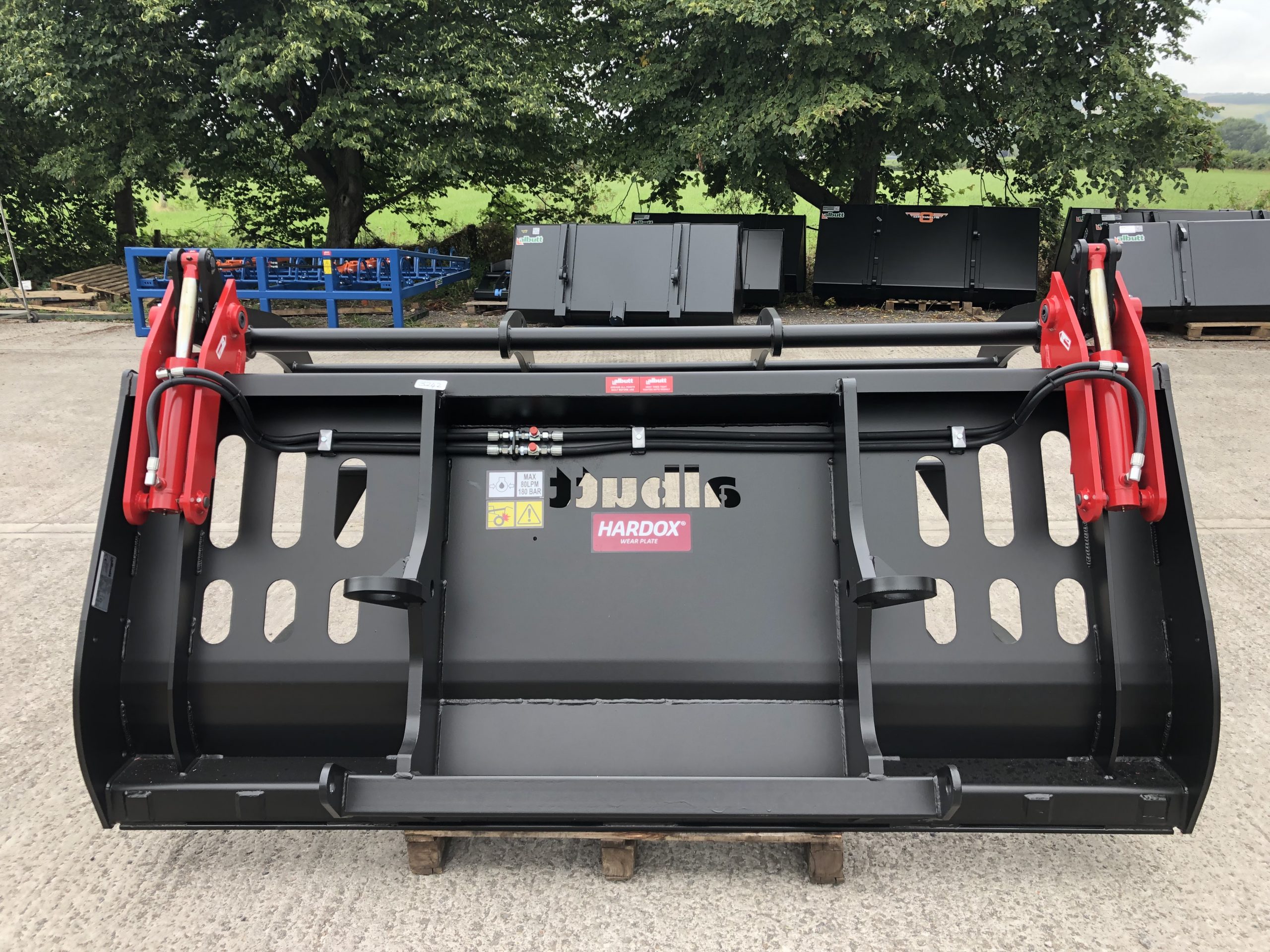

Hardox tine models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| B566HXG | 2.00m3 | 6’6” | 8 |
| B570HXG | 2.10m3 | 7′ | 8 |
| B576HXG | 2.26m3 | 7’6” | 9 |
| B580HXG | 2.40m3 | 8′ | 10 |
| B590HXG | 2.70m3 | 9′ | 11 |

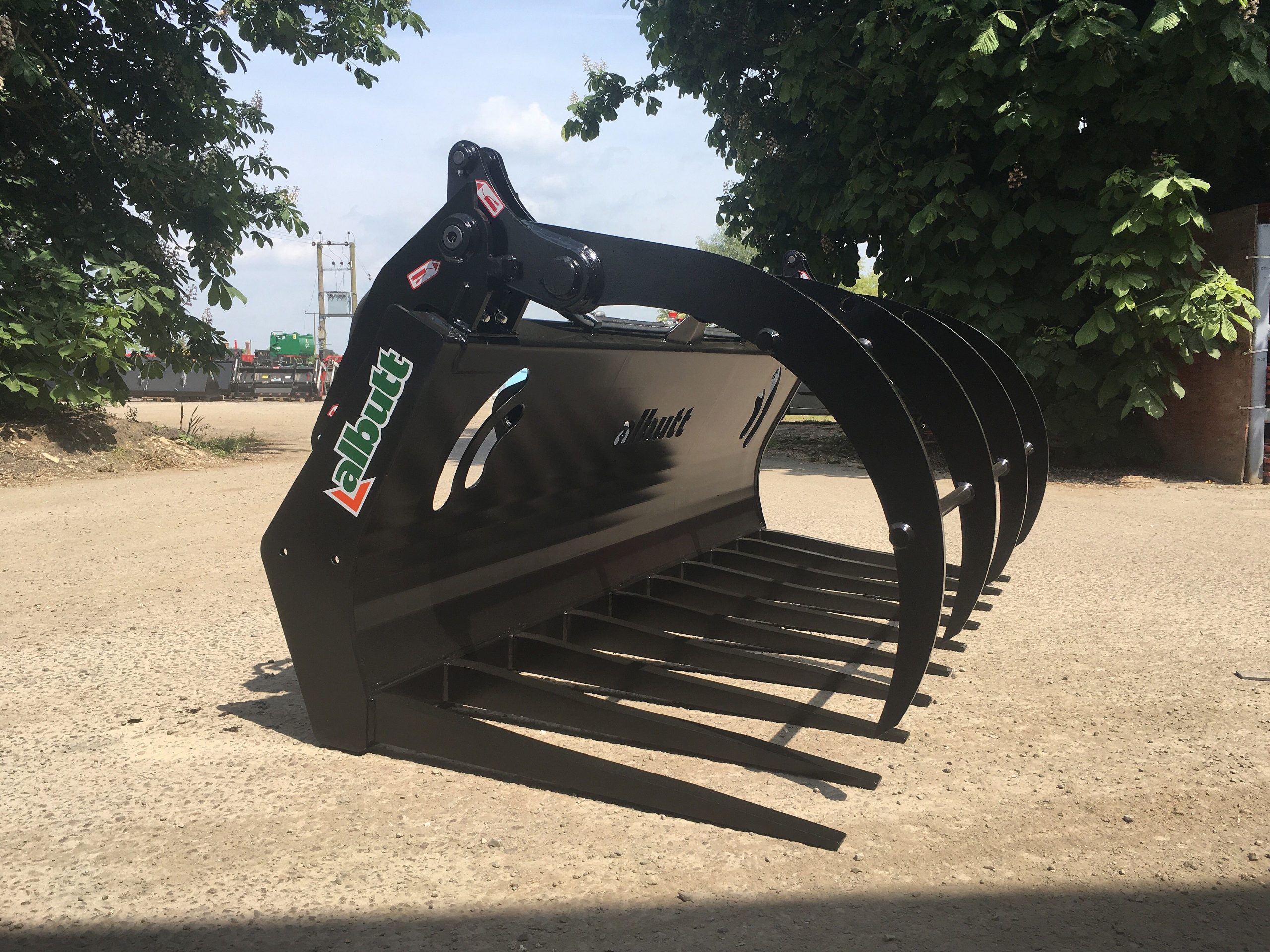

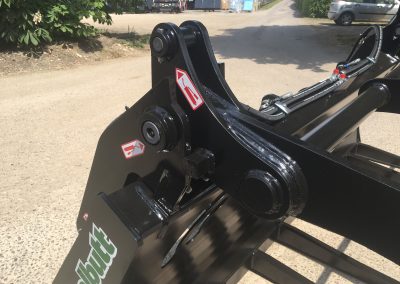

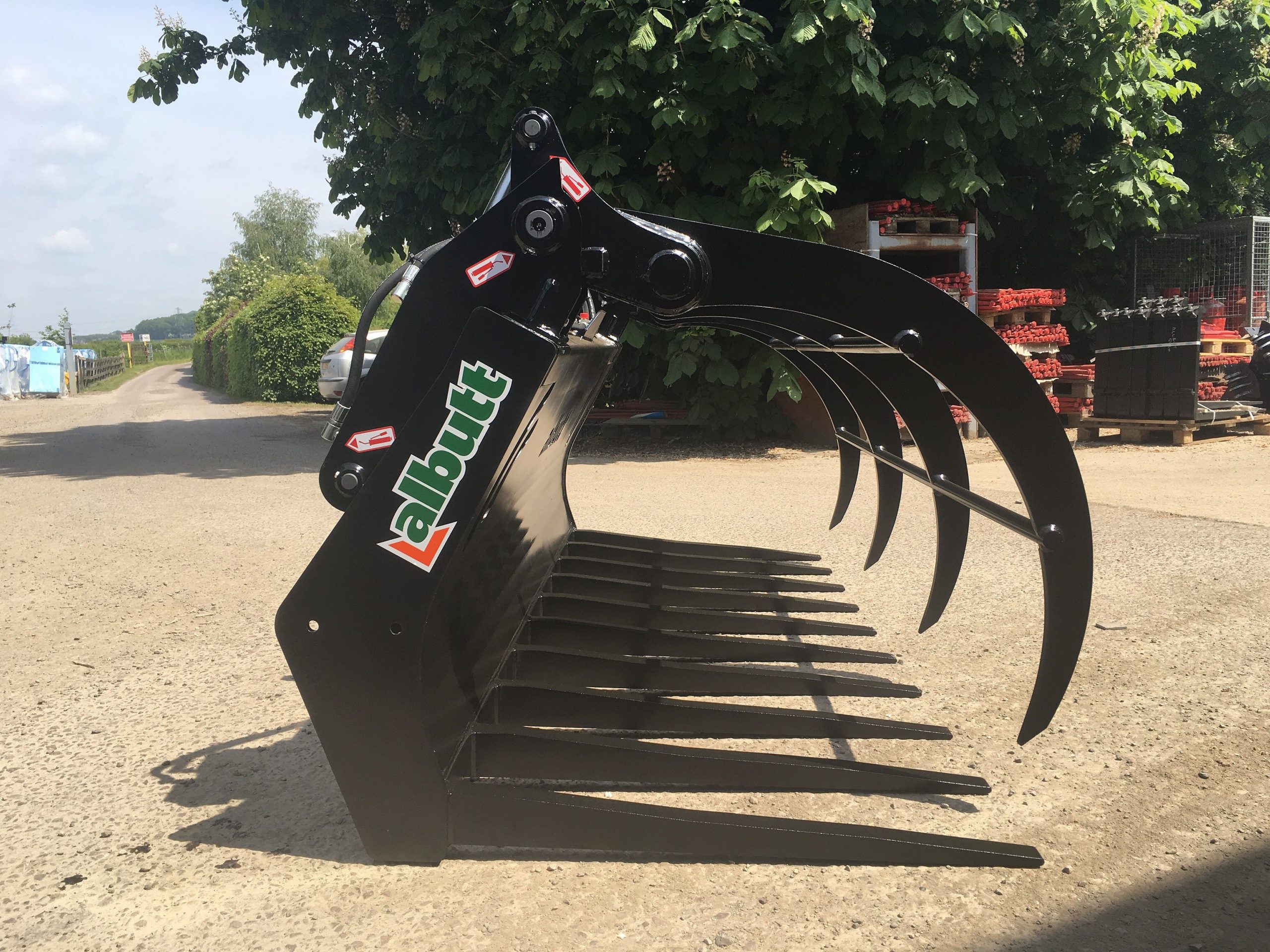

C-Series
- For machines with a 2-4 tonne lift capacity
- Choice of Hardox or KV type tines
- Grab openings; Hardox 1742mm / KV type 1718mm
- 1099mm tall
- Full width base wear pad
- Base Tine length; Hardox 970mm / KV type 980mm

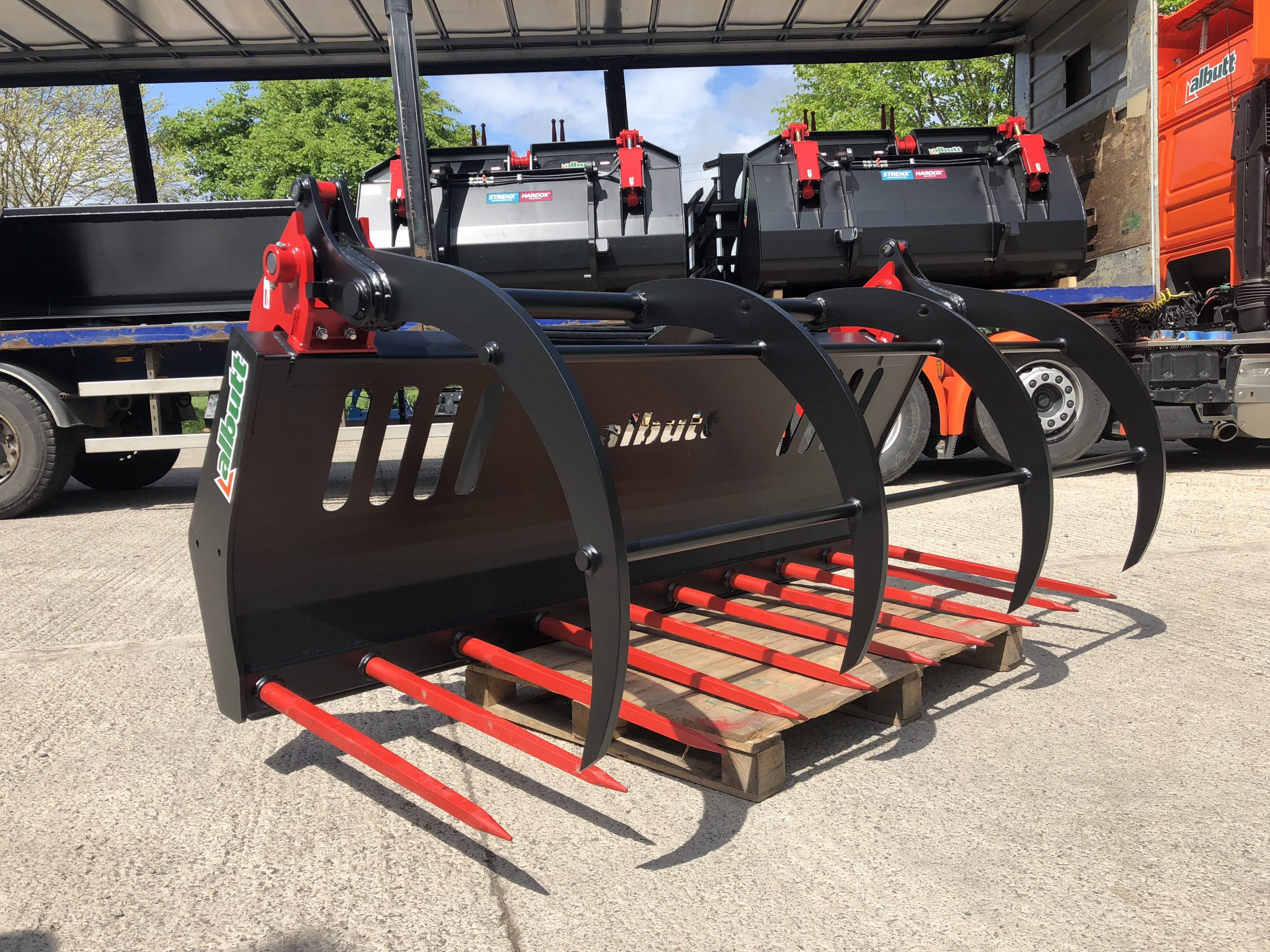

KV type tine models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|

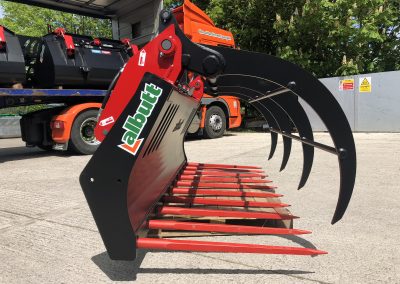

| C366G | 1.33m3 | 6’6” | 9 |
| C370G | 1.41m3 | 7′ | 9 |

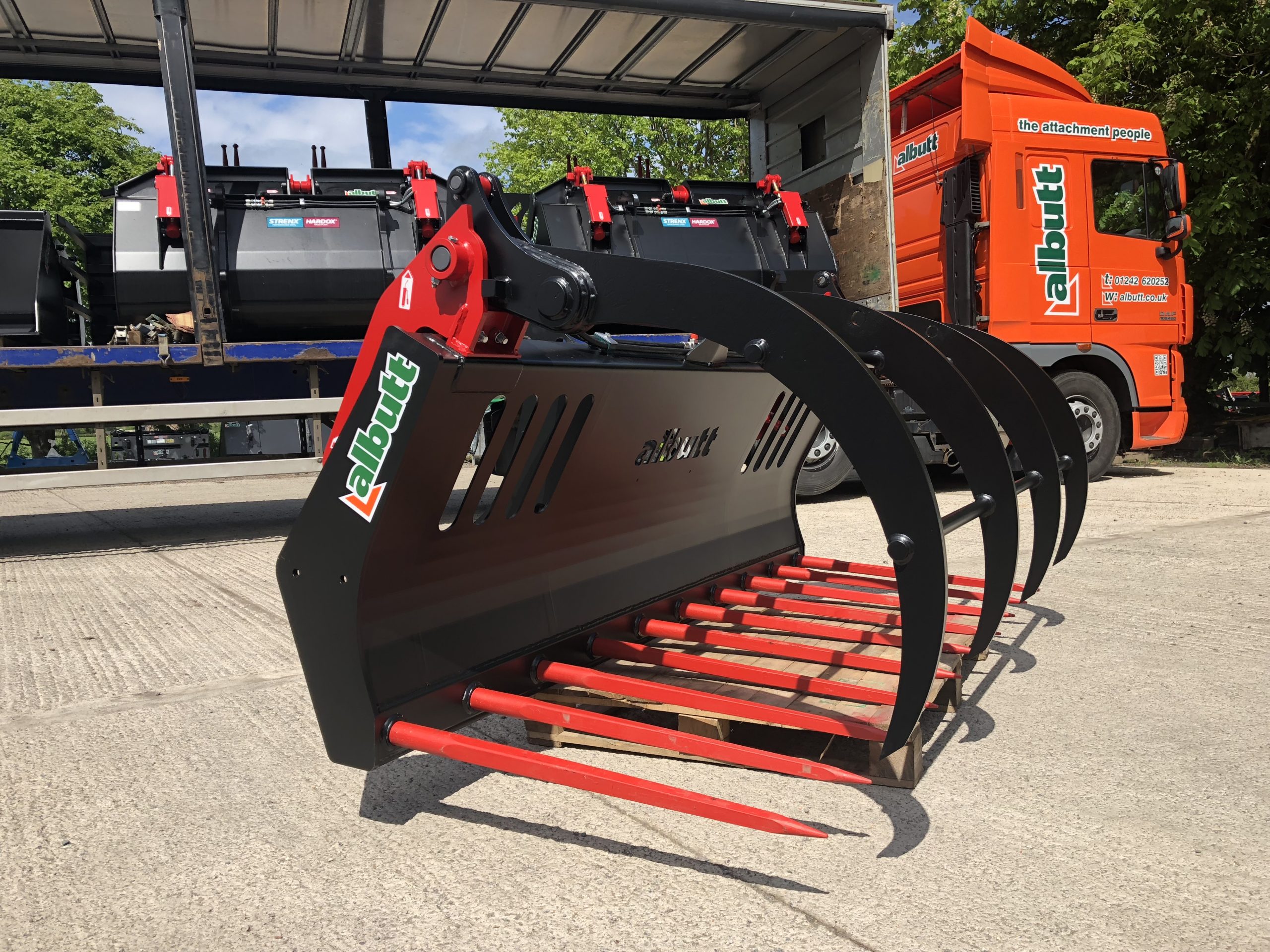

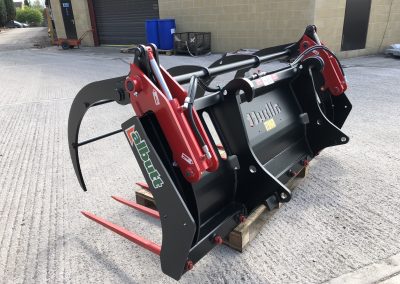

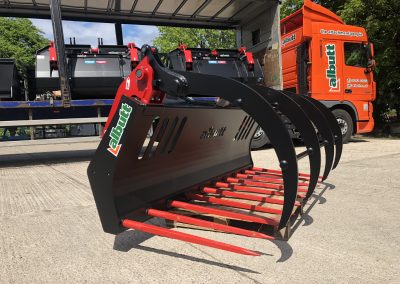

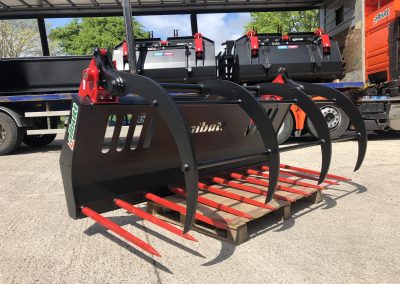

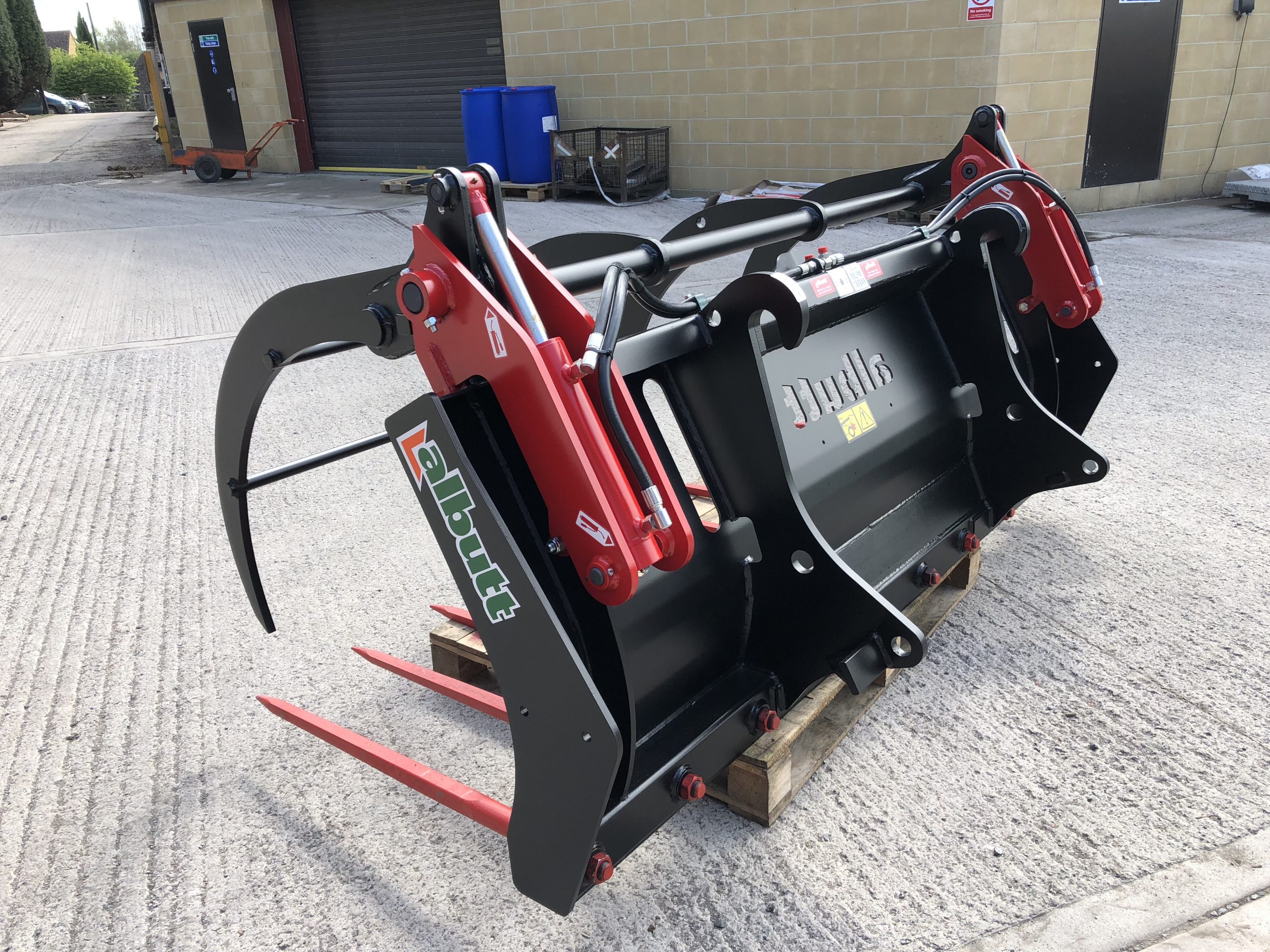

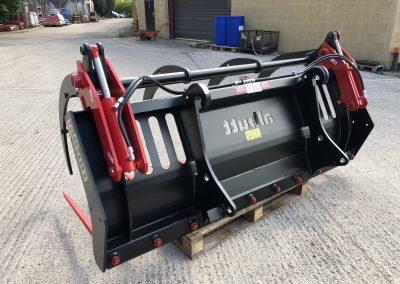

| C376G | 1.56m3 | 7’6” | 10 |
Hardox tine models
| Model | Capacity | Width | Base Tines |
|---|---|---|---|
| C366HXG | 1.33m3 | 6’6” | 9 |
| C370HXG | 1.41m3 | 7′ | 9 |
| C376HXG | 1.56m3 | 7’6” | 10 |
