Grab Buckets
Grab Buckets

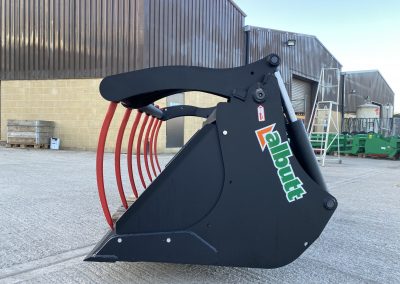

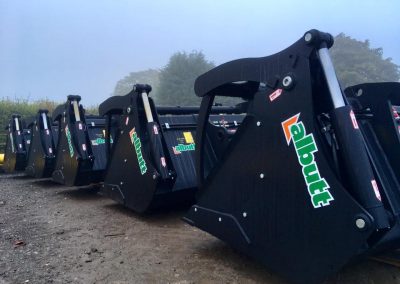

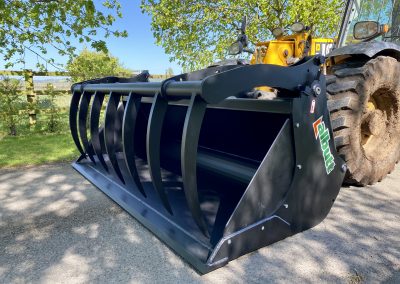

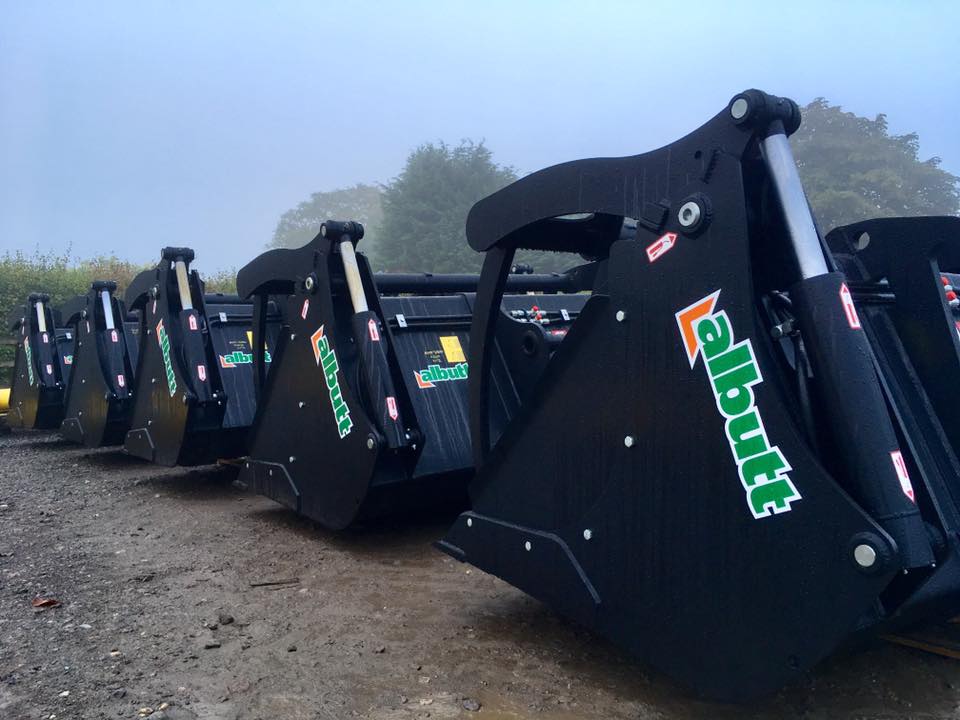

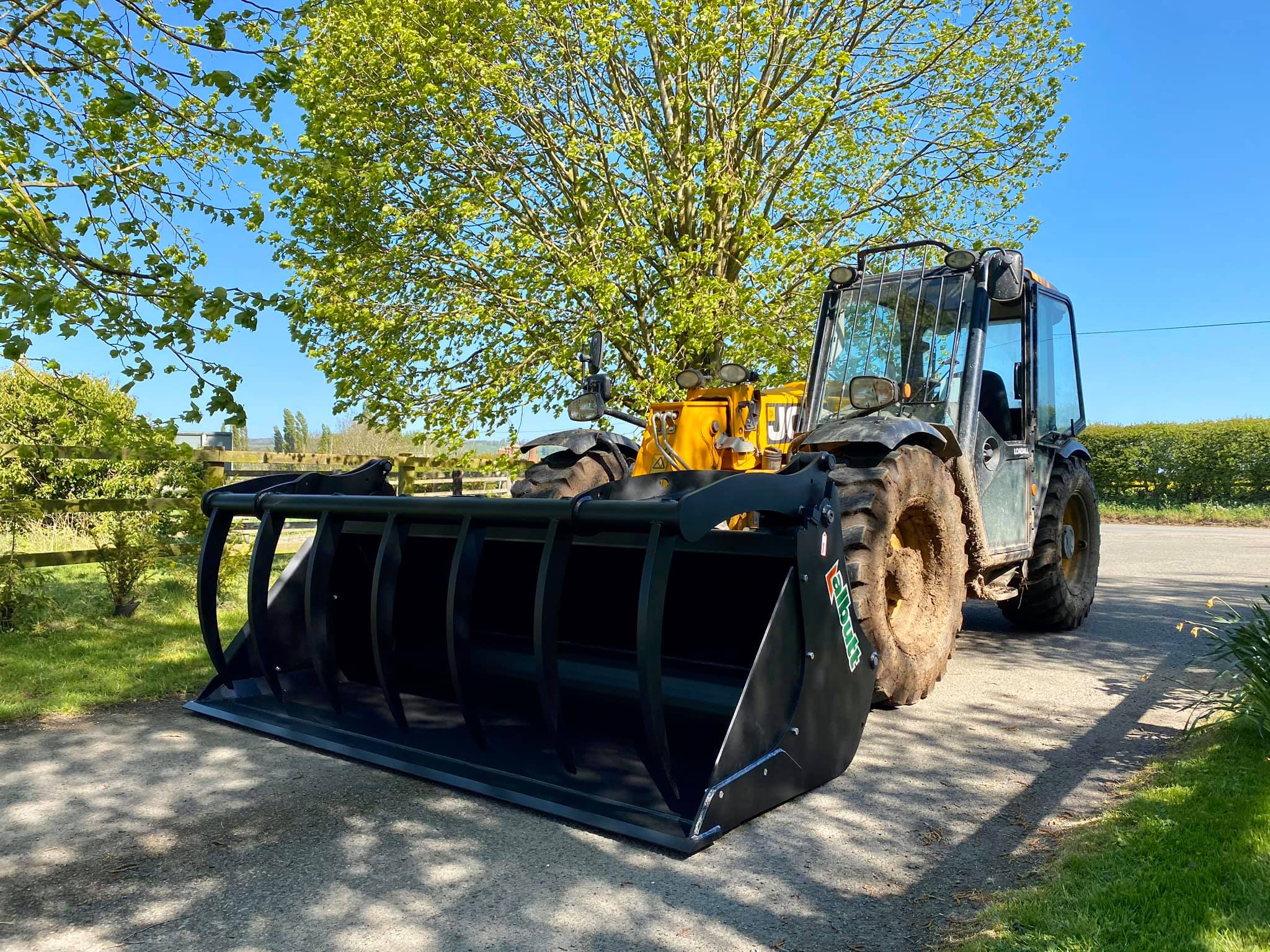

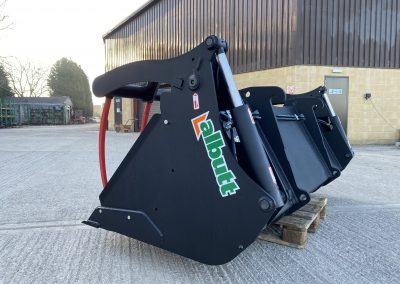

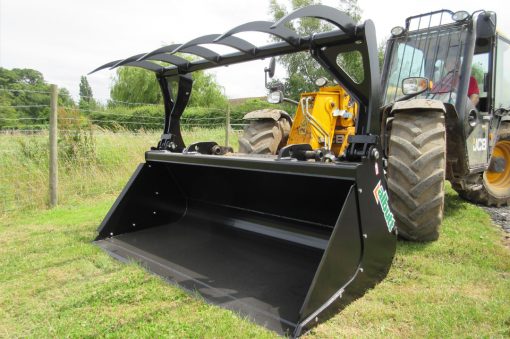

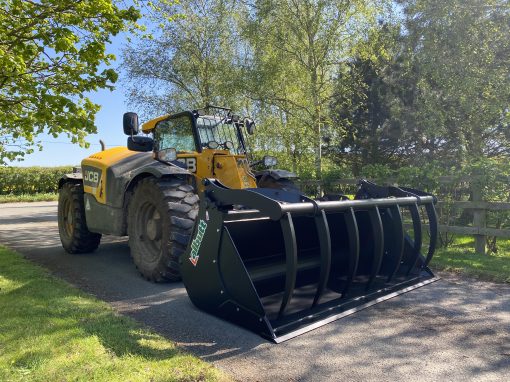

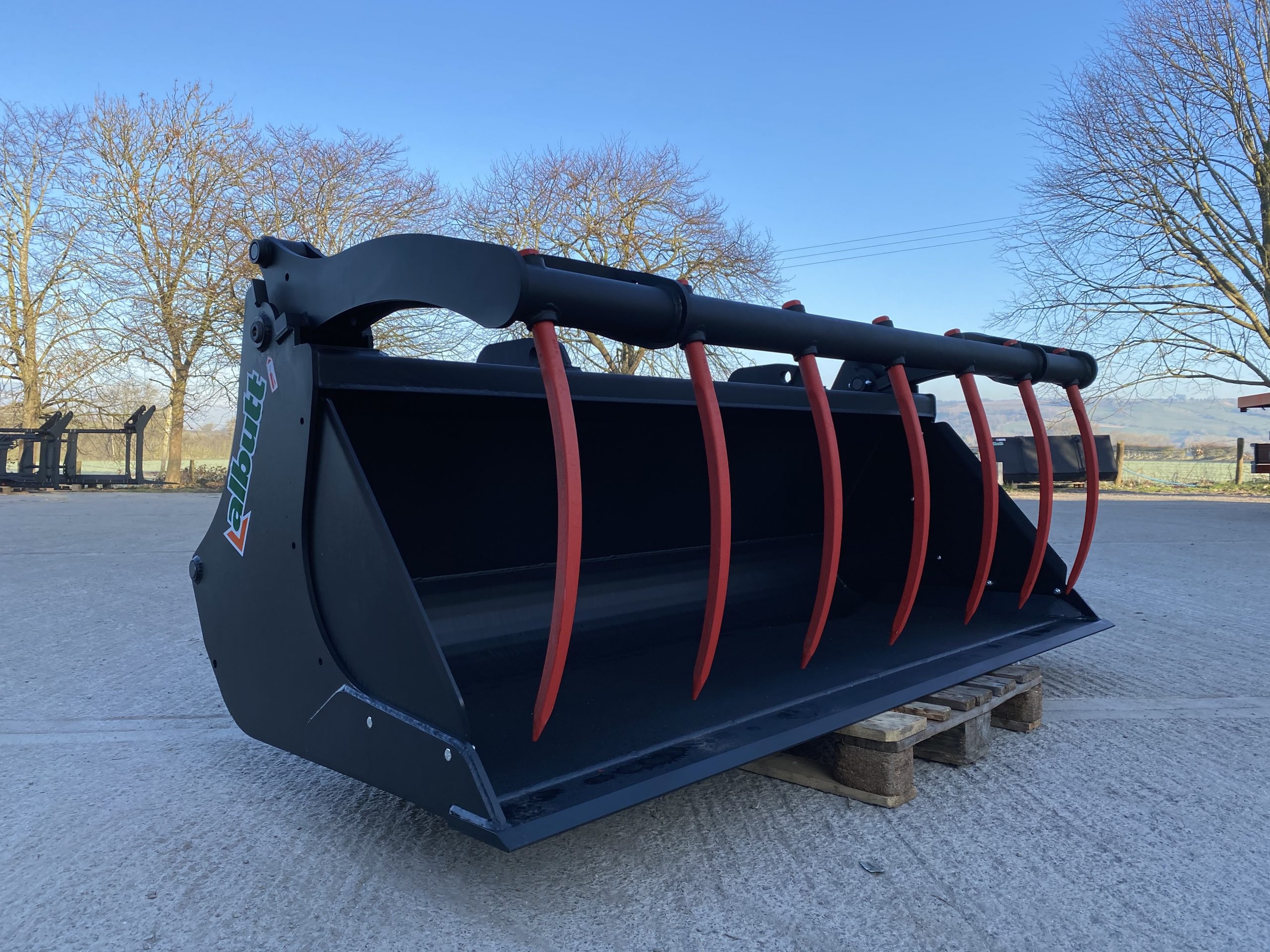

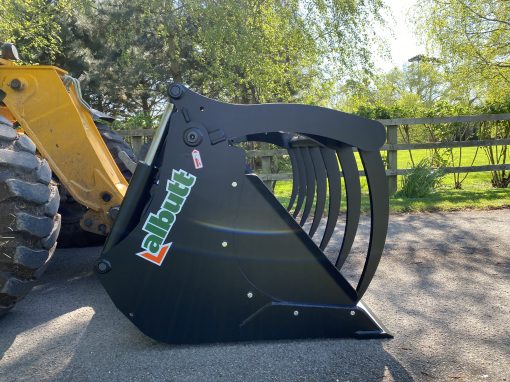

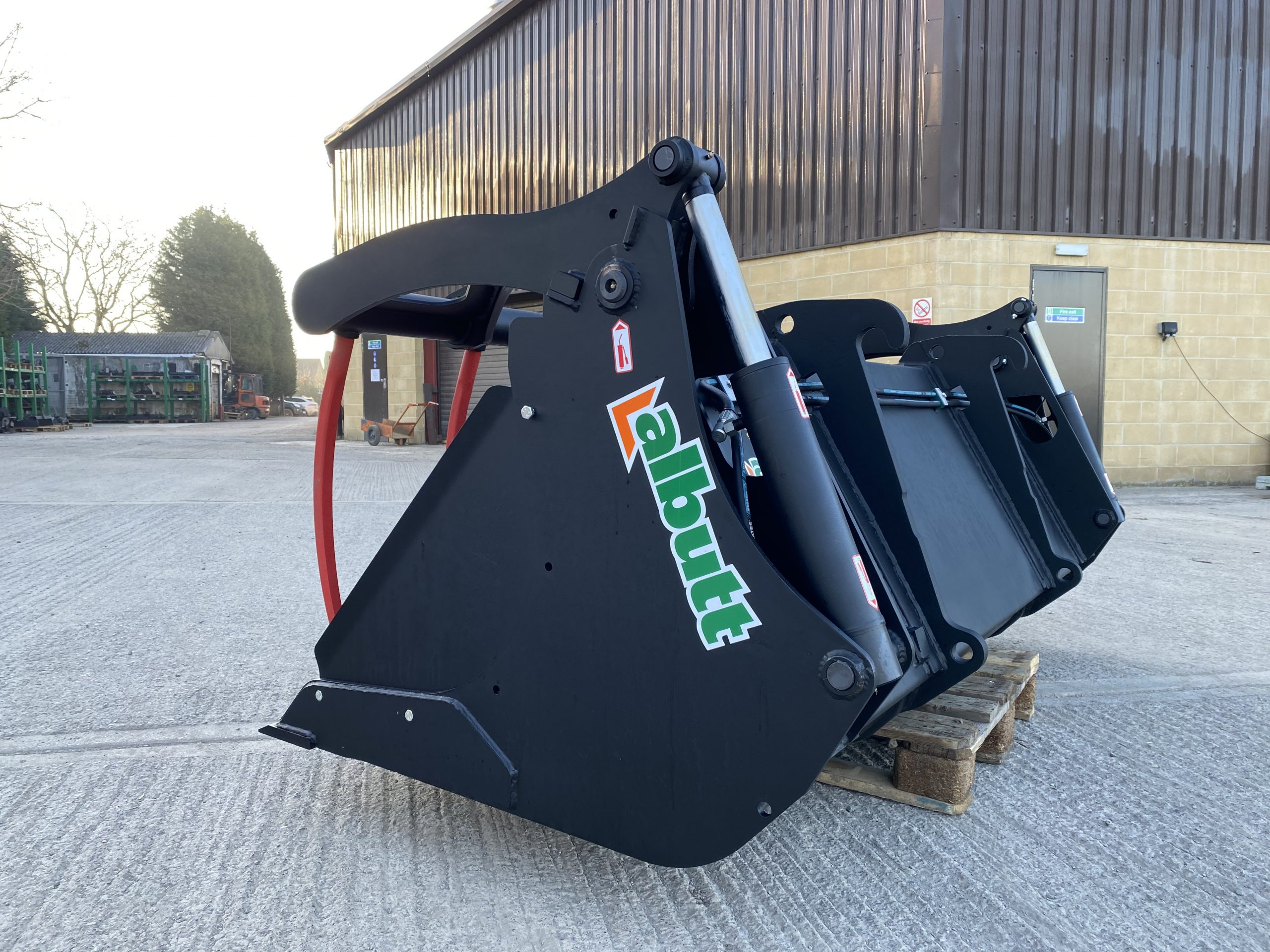

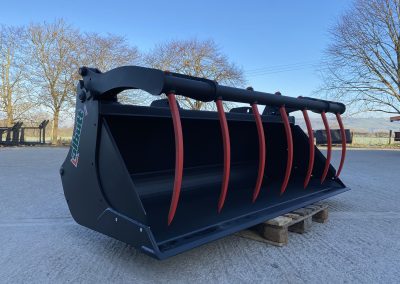

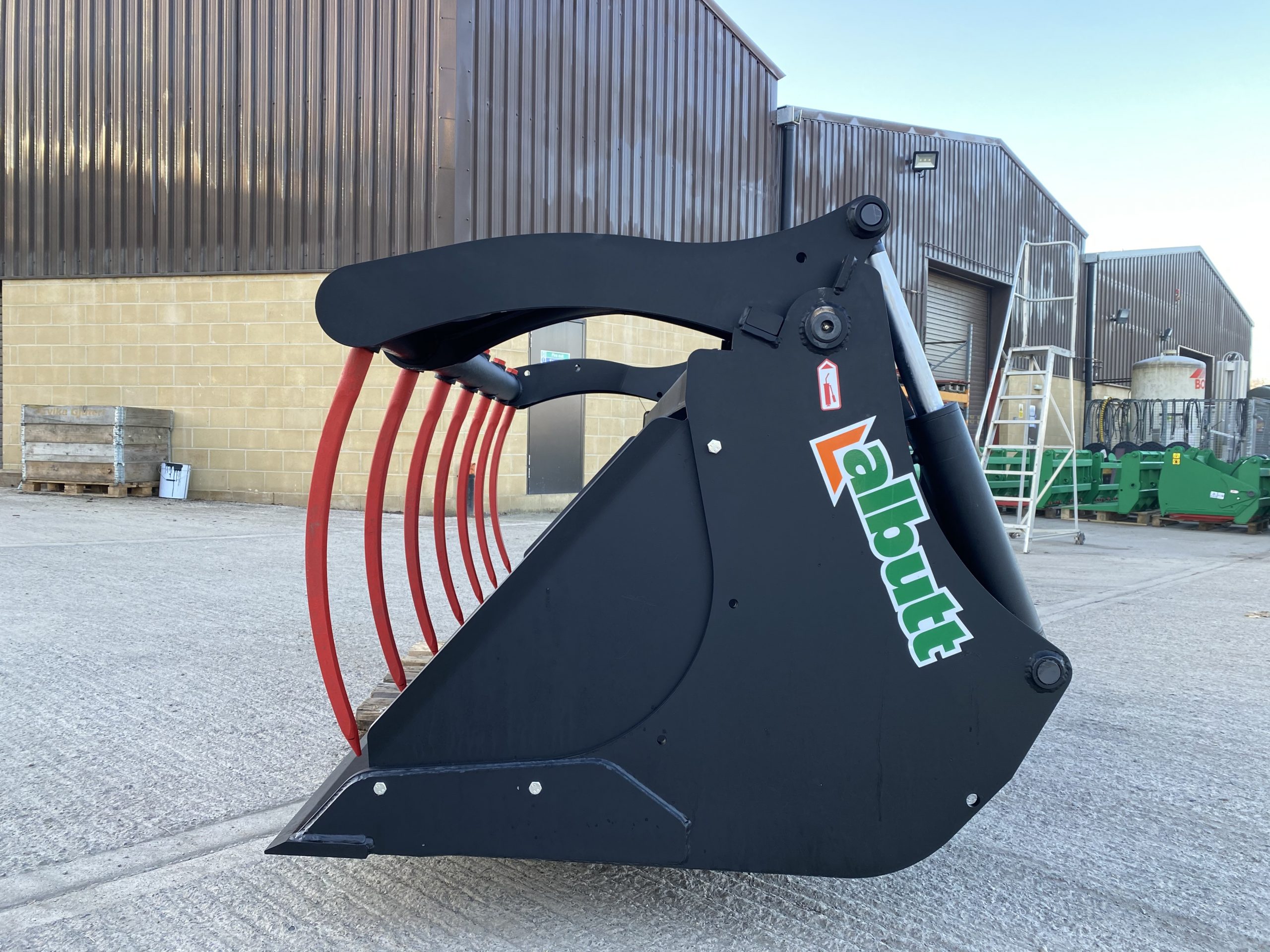

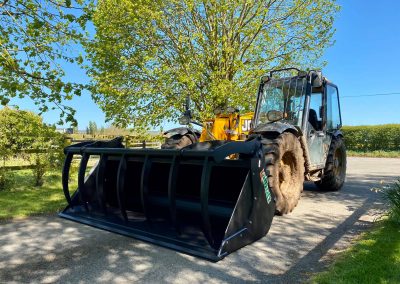

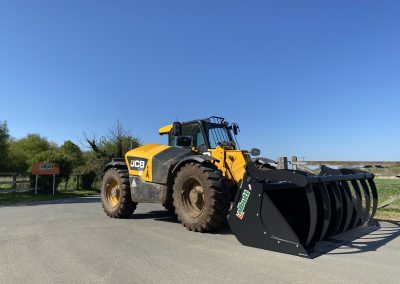

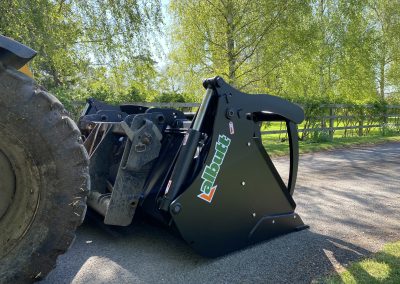

Albutt bucket grabs are a versatile attachment for material handling in agriculture. Offering the features of a bucket and fork grab in one attachment. The bucket features bolted sides which can be removed for muck handling etc. The wide opening grab features Hardox high tensile steel tines which are welded into a thick walled tube, providing high strength and long term reliability. The bucket edge can touch a vertical face with the grab open, allowing corners in buildings to be cleared. This new attachment is suitable for use with telehandlers and loaders.
Features
- Genuine Hardox grab tines - Option for KV type
- Open and close grab stops; protect pins and cylinders
- Removable side panels
- Rolled bucket shell

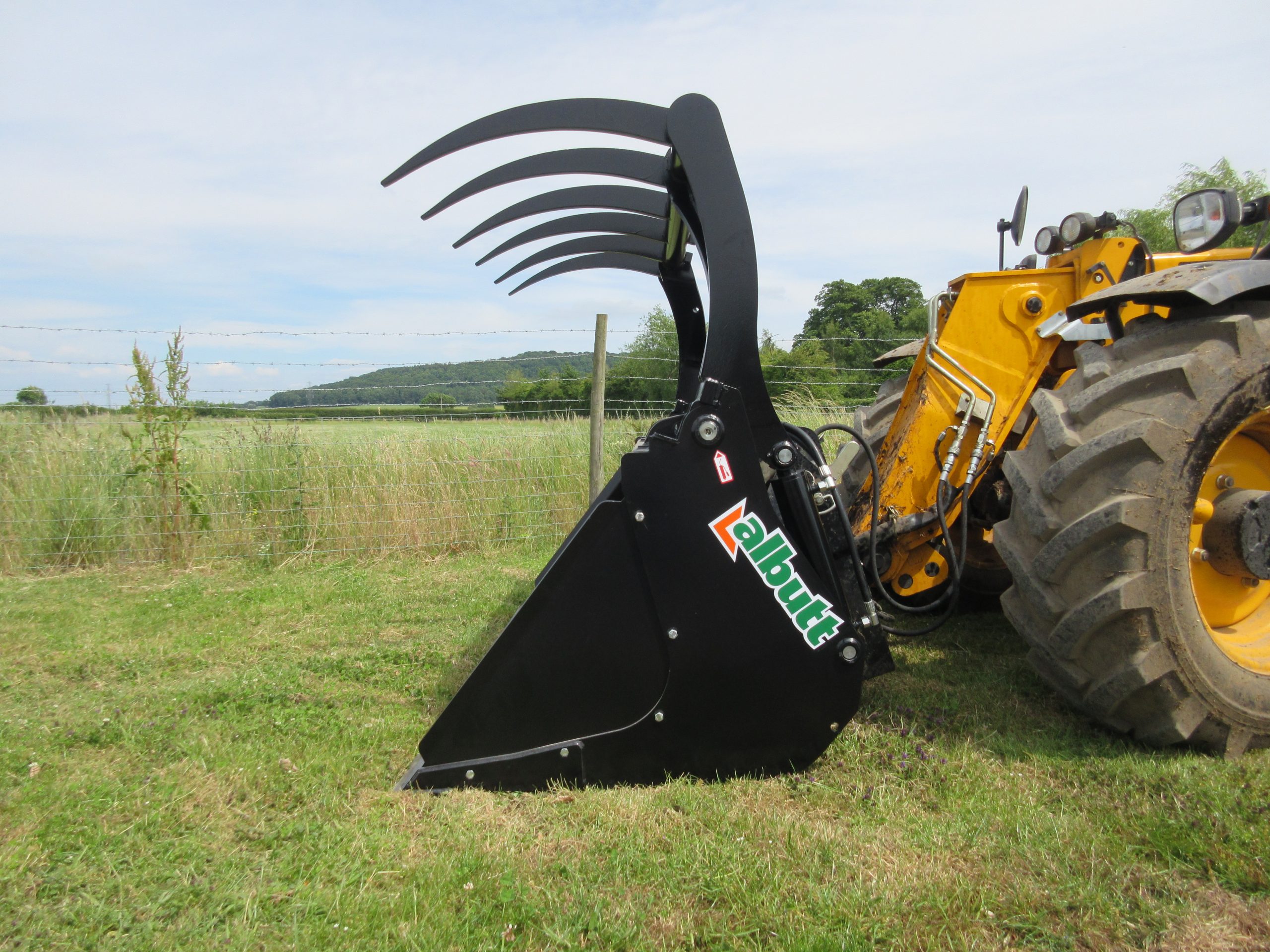

- Wide opening grabs
- High capacity hydraulic cylinders
- Brackets included to suit your Telehandler, Loader or Wheeled Shovel
- HB500 welded in leading edge
- 10mm wall CHS tine holder

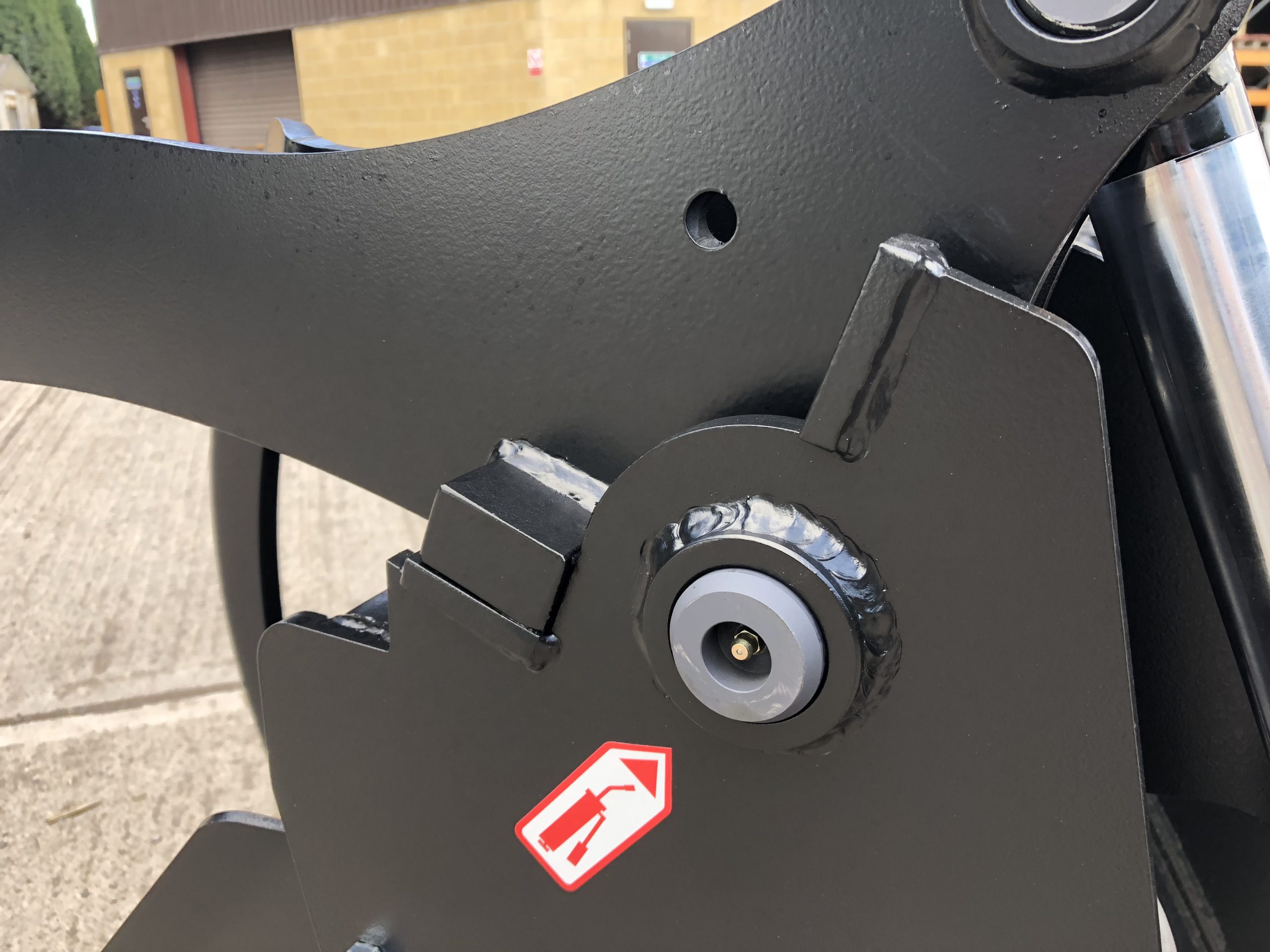

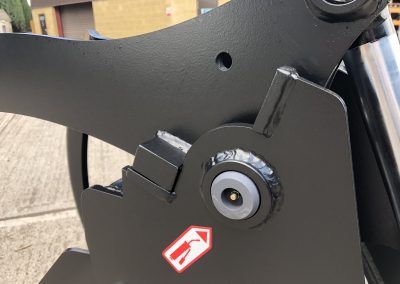

Featuring our ALS pin system - better lubrication properties than zinc plated pins
Models
| Model | Width | m3 | Grab Opening | Weight |
|---|---|---|---|---|
| A085-80BGHX | 8′ | 2.35m3 | 1740mm | 1065kgs |
| A059-80BGHX | 8′ | 1.64m3 | 1430mm | 810kgs |
| A081-76BGHX | 7’6″ | 2.20m3 | 1740mm | 1000kgs |
| A055-76BGHX | 7’6″ | 1.53m3 | 1430mm | 780kgs |
| A051-70BGHX | 7′ | 1.42m3 | 1430mm | 750kgs |
| A048-66BGHX | 6’6″ | 1.30m3 | 1430mm | 700kgs |
| A043-60BGHX | 6′ | 1.22m3 | 1430mm | 680kgs |
Want to know more? Request a call back from a member of our Sales Team
Pricing
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| A085-80BGHX | £5,903 | £4,428 | £4,317 | £4,209 |
| A059-80BGHX | £5,704 | £4,278 | £4,171 | £4,067 |
| A081-76BGHX | £5,806 | £4,354 | £4,246 | £4,139 |
| A055-76BGHX | £5,541 | £4,156 | £4,052 | £3,951 |
| A051-70BGHX | £5,270 | £3,953 | £3,854 | £3,758 |
| A048-66BGHX | £5,126 | £3,844 | £3,748 | £3,654 |
| A043-60BGHX | £4,853 | £3,639 | £3,548 | £3,460 |
