Timber Grapple

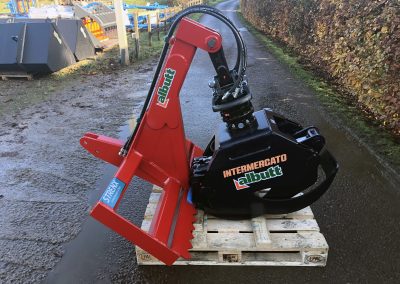

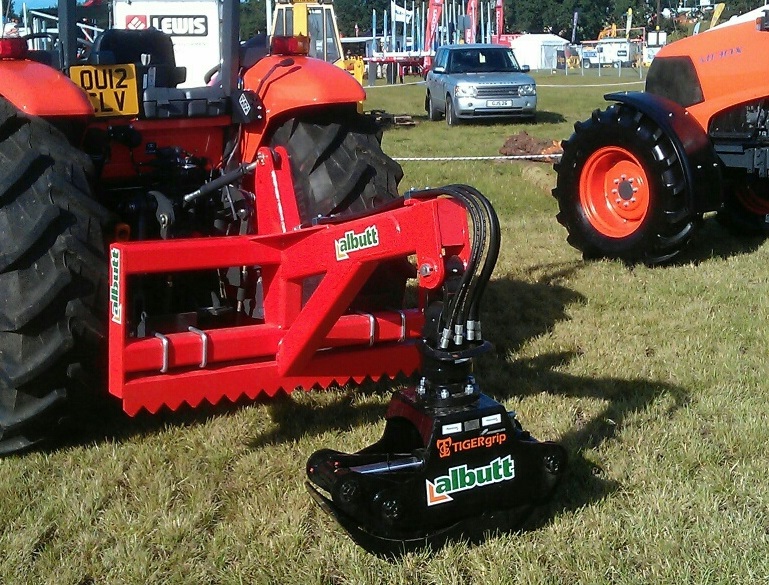

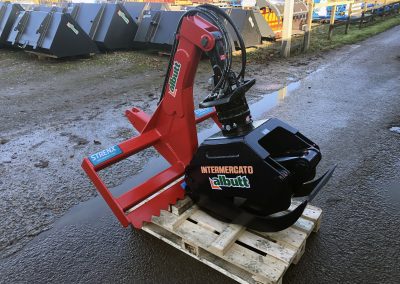

Timber Grab with Rotating Grapple

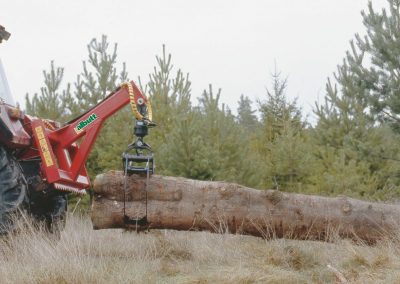

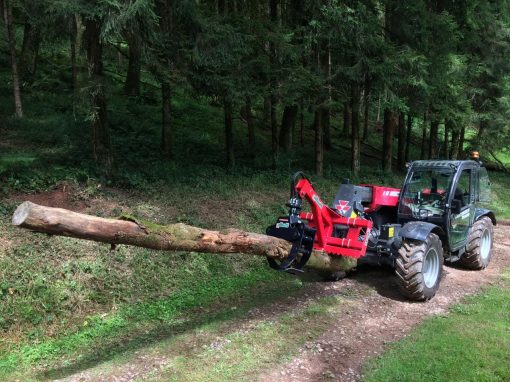

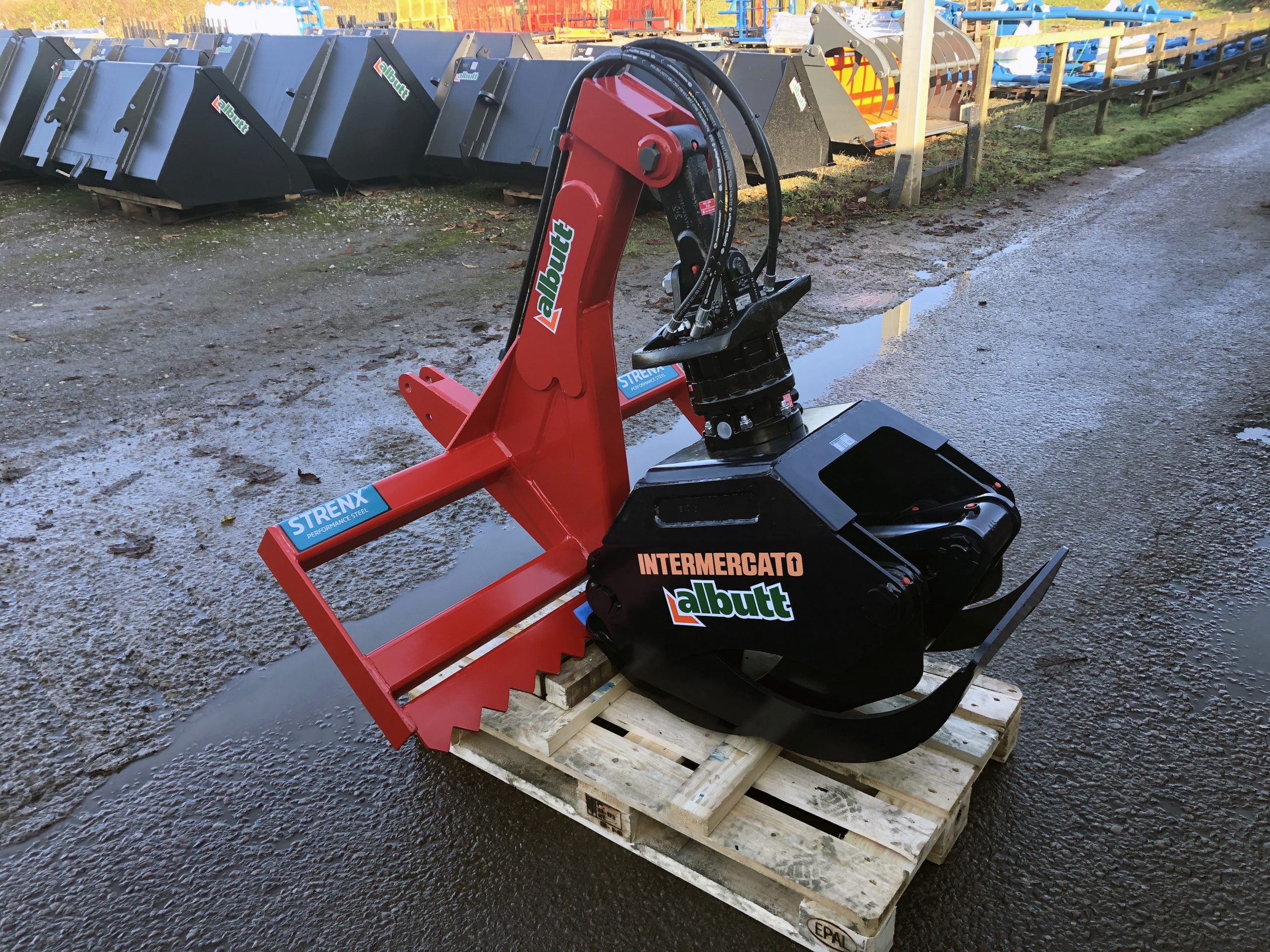

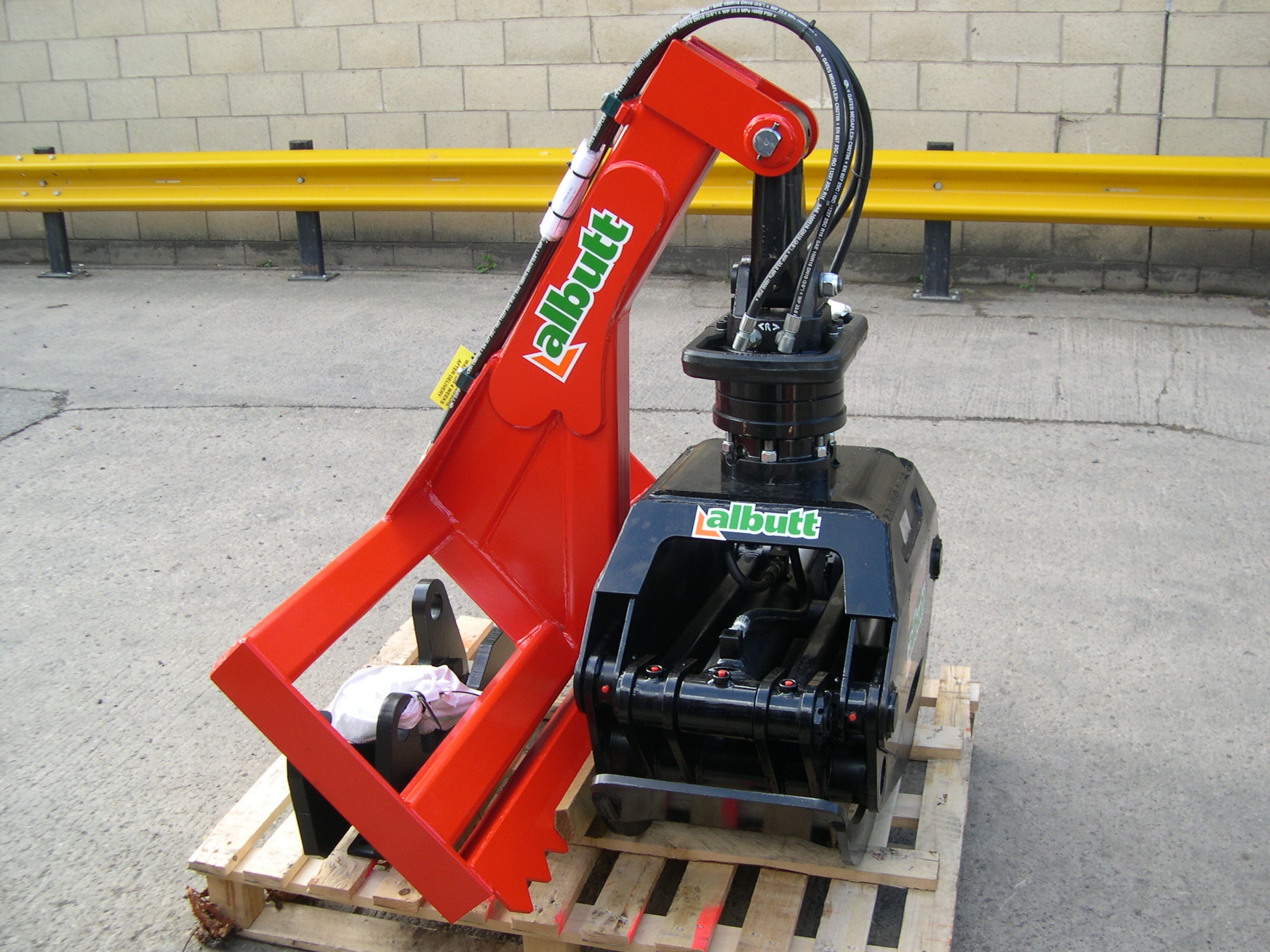

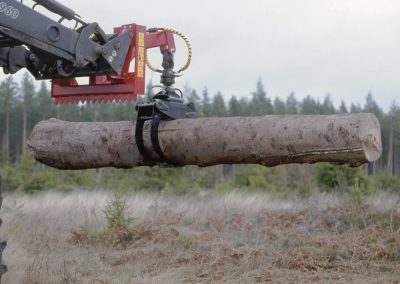

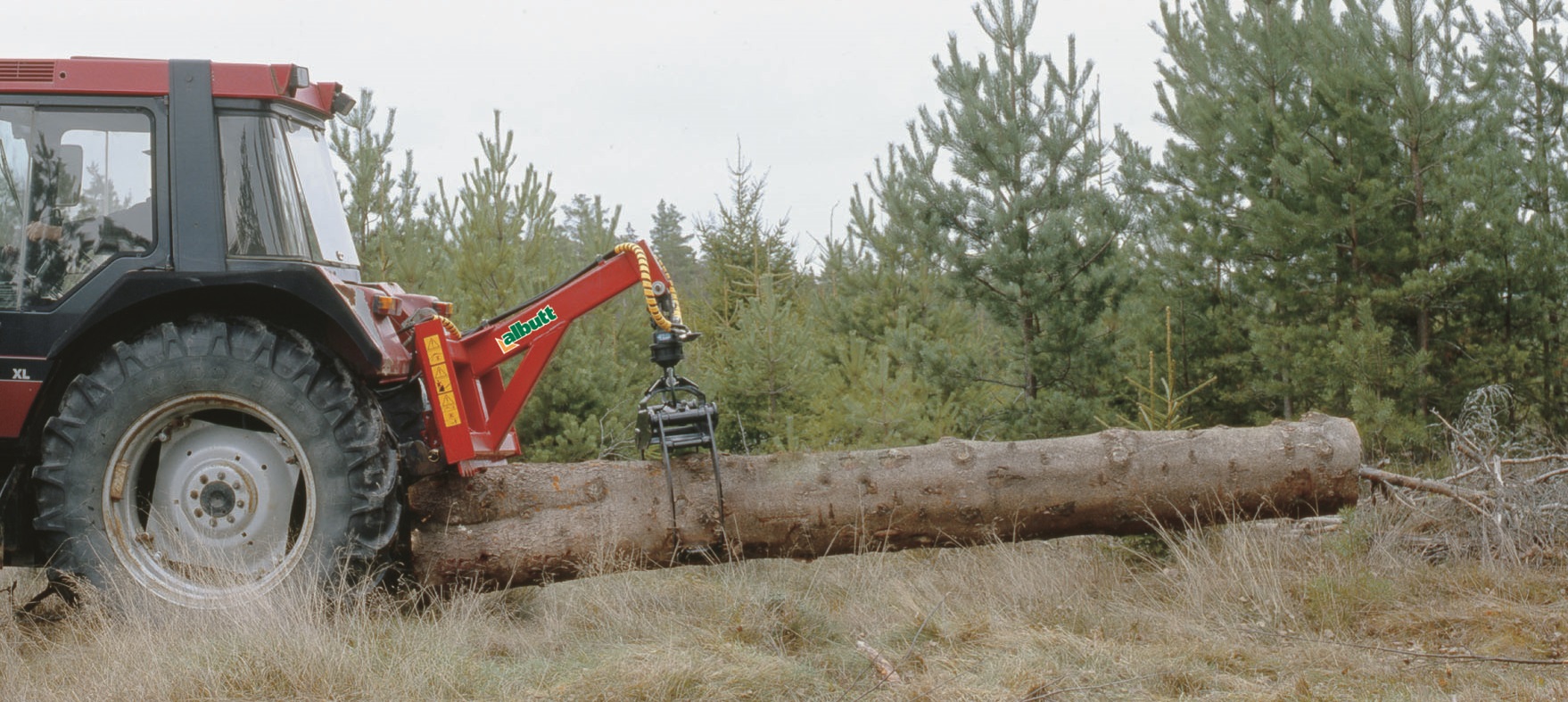

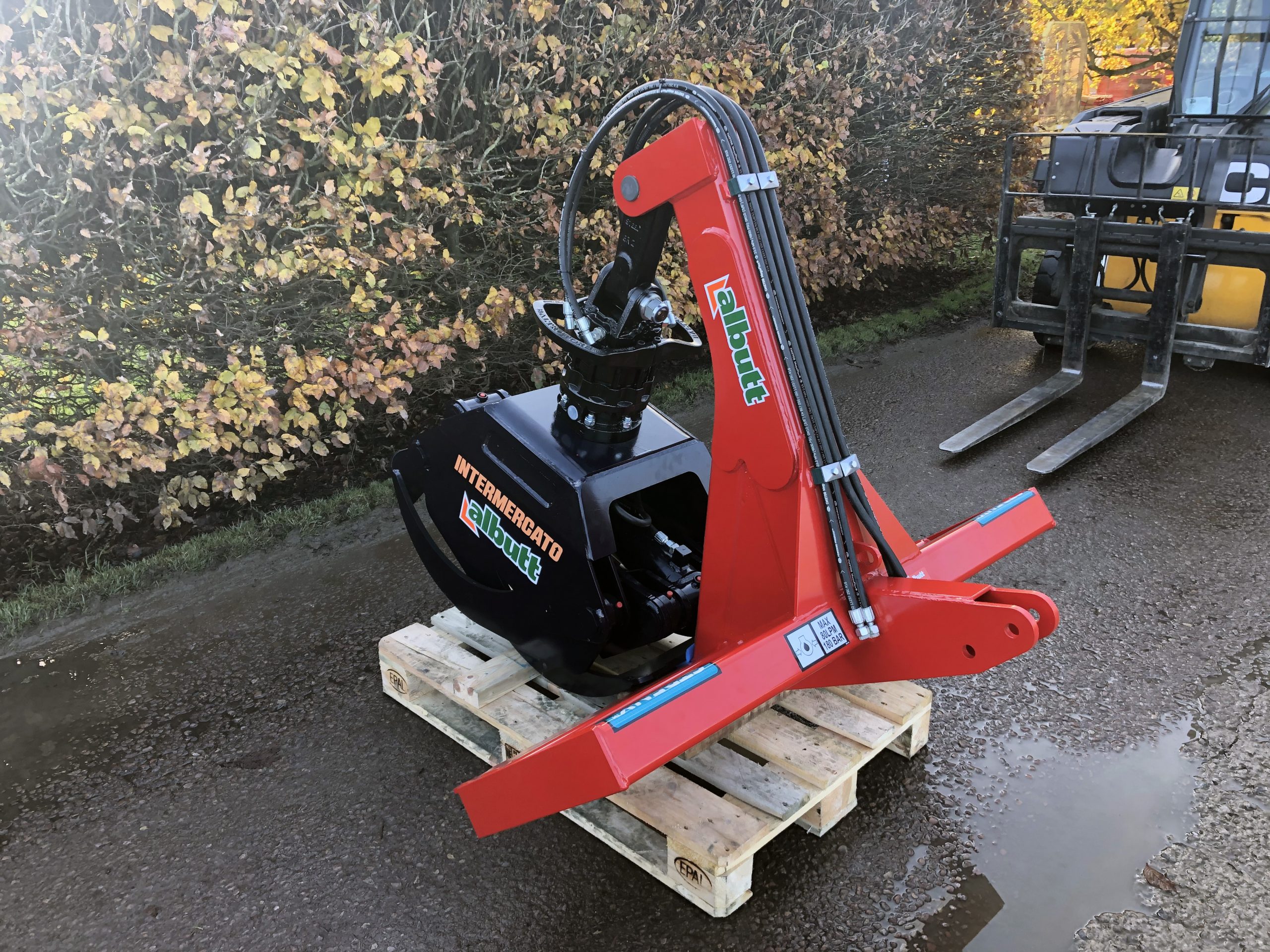

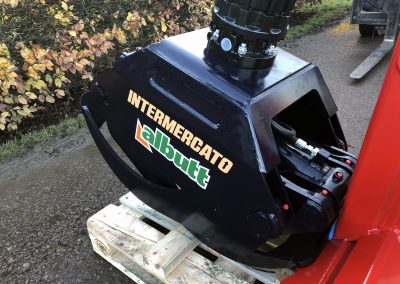

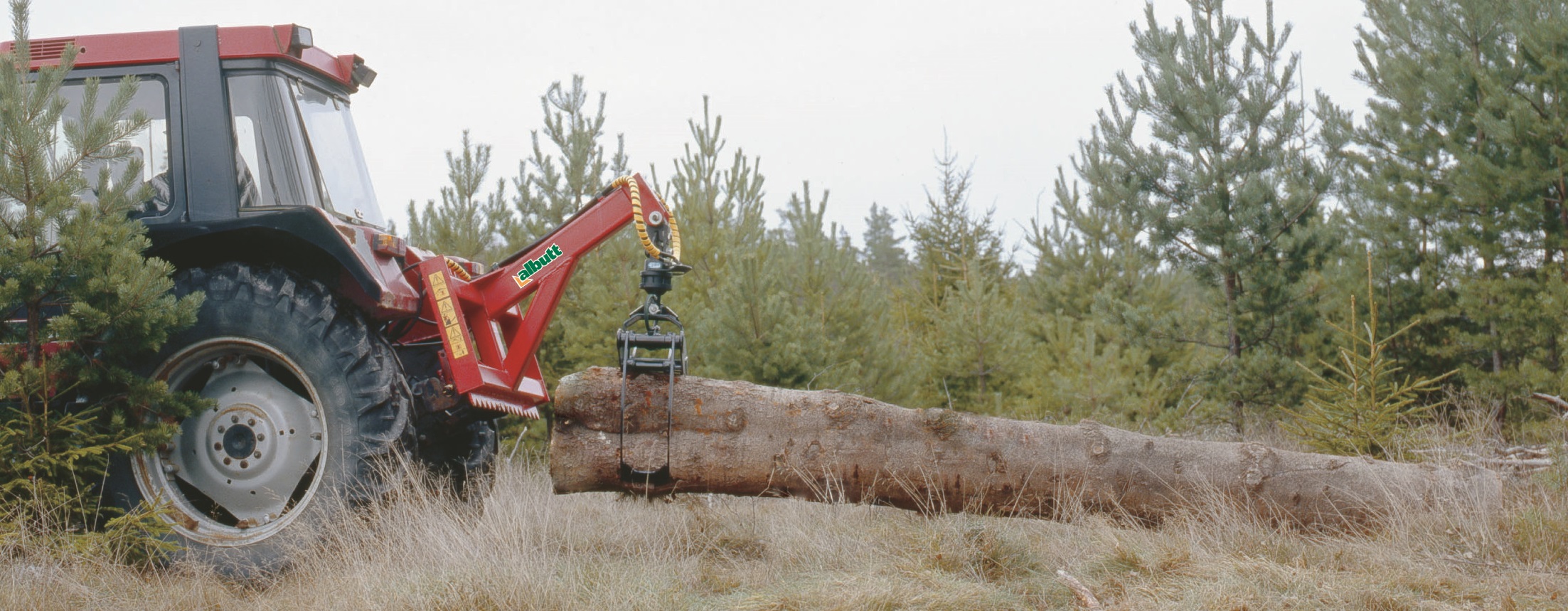

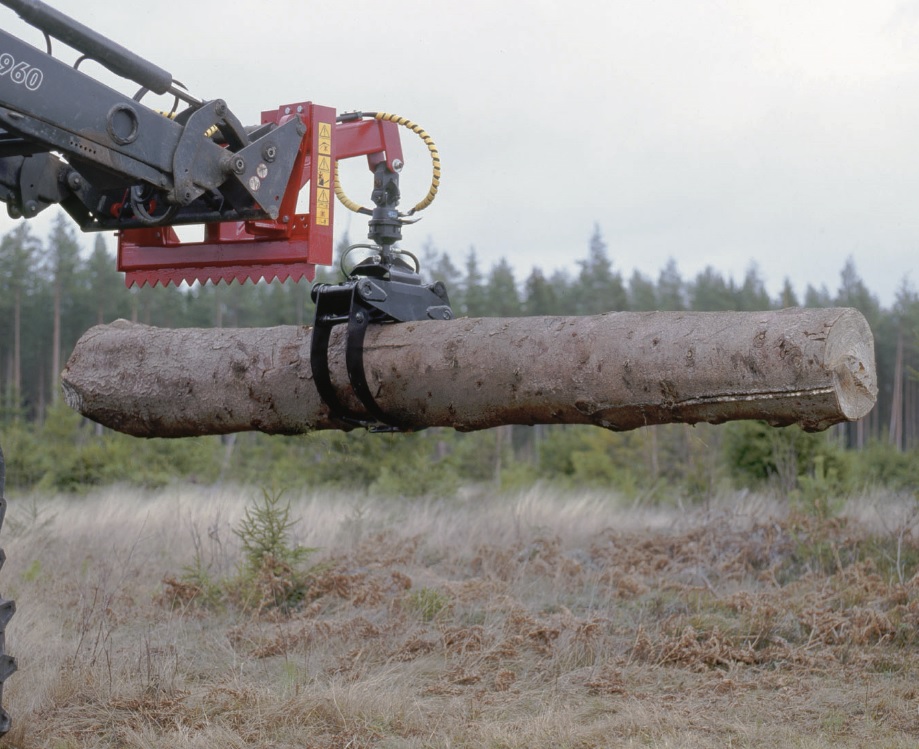

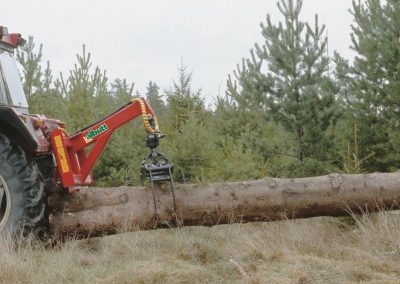

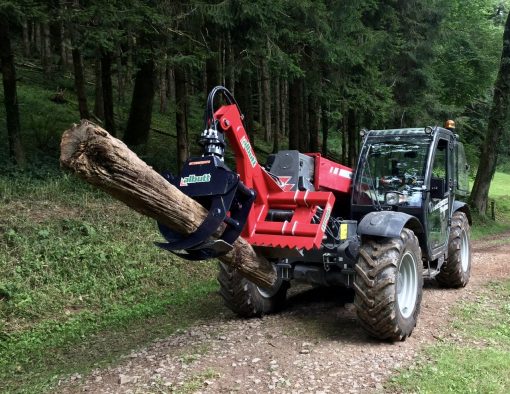

The Albutt LG series of timber grapples are designed to be used with telehandler, loader or tractor 3 point linkage. The attachments have a lift capacity of 2.5 & 4.0 tonnes. The grapple has a rotate function allowing timber to be positioned when loading timber trucks.Grapple arms are manufactured from Strenx high tensile steel for high strength and long term reliability. Two hydraulic services or a change over valve are required to operate both grapple and rotator.
Features
- Curved grapple arms allow timber to roll into the grapple arms
- 360 degree rotator
- Hydraulic ram protected
- Timber Grapple manufactured from high tensile Hardox steel
- All grease points easily accessed with grapple closed
- Handles timber 50mm to 700mm diameter
- Serrated blade help steady load
- Telehandler, Tractor Loader or Wheeled Loader brackets included

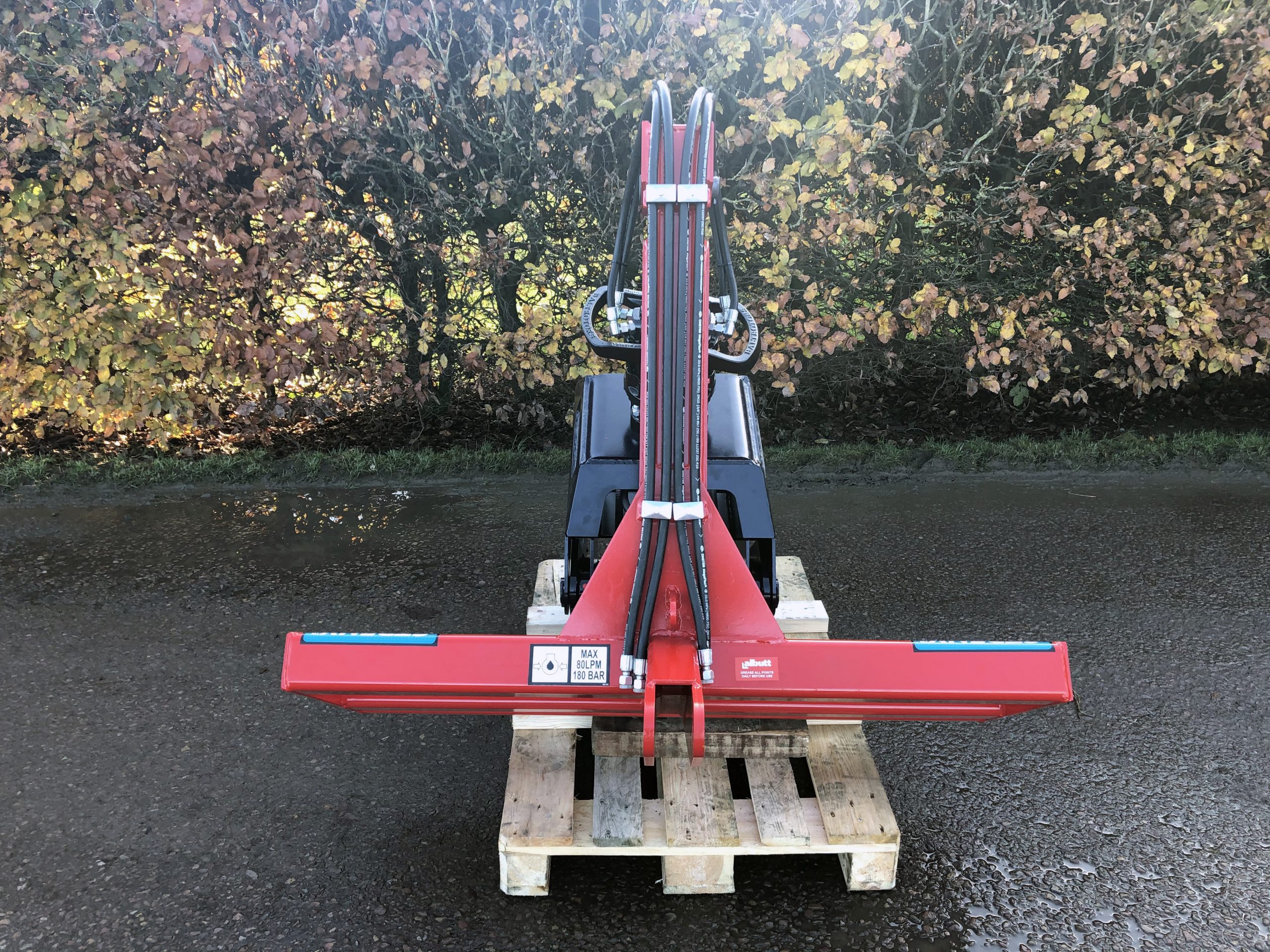

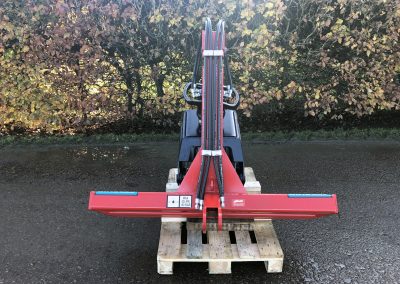

- Brackets bolted on; can be easily changed if machine brand is changed in future
Models
| Model | Lift Capacity | Jaw Opening | Rotator Pressure/Flow Rating | Grapple Pressure/Flow Rating | Weight |
|---|---|---|---|---|---|
| LG700 | 2500kg | 1450mm | 250 to 300 bar
15 l/min |
200 bar
50 l/min |
295kg |
| LG800 | 4000kg | 1890mm | 250 to 300 bar
20 l/min |
250 bar
60 l/min |
330kg |
Want to know more? Request a call back from a member of our Sales Team

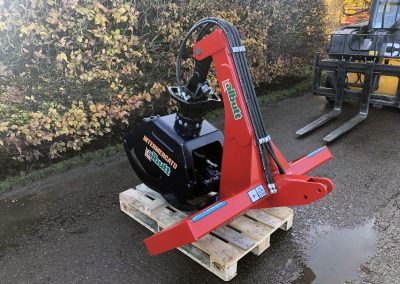

Gallery
Pricing
| Model | Retail | 1 off nett | 3 off nett | 6 off nett |
|---|---|---|---|---|
| LG700 | £8,652 | £6,489 | £6,327 | £6,169 |
| LG800 | £9,167 | £6,875 | £6,703 | £6,536 |
| Frame Only | £1,852 | £1,389 | £1,354 | £1,320 |
